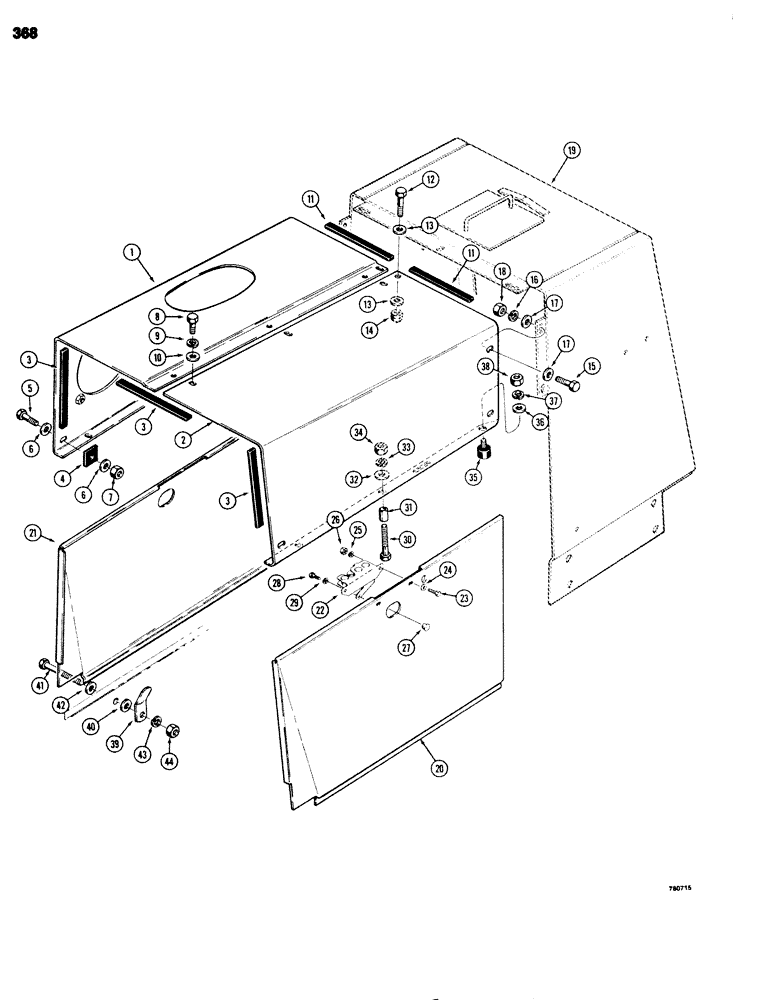

Запчасти Case 680G (368) - HOOD AND ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

L101024

HOOD - side panel, left-hand

1шт.

2

L101021

HOOD - side panel, right-hand

1шт.

3

L100110

FOAM

STRIP - rubber

3шт.

4

D61266

BUSHING

SPACER - hood

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

7

131-1202

NUT,3/8"-16, GC

- hex, lock, 3/8" - 16 NC

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

11

L100110

FOAM

STRIP - rubber

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

14

131-1202

NUT,3/8"-16, GC

- hex, lock, 3/8" - 16 NC

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 1-1/4"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

19

REF

INSTRUCTION

FRAME - radiator and grille, see Figure 370

1шт.

20

L101022

PANEL ASSY.

PANEL - side, right-hand

1шт.

21

L101023

PANEL ASSY.

PANEL - side, left-hand

1шт.

22

R37573

CATCH

LATCH - side panel

2шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

24

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

25-104

NUT,1/4"-20, G5

4шт.

27

L100126

KNOB

- latch

2шт.

28

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

2шт.

31

L11465

SPACER

- latch

2шт.

32

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

35

L79902

BUMPER - rubber

4шт.

36

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

37

92-5

LOCK WASHER,5/16"

4шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

39

L100362

RETAINER - side panel

4шт.

40

D41740

WASHER

- special

4шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

42

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

43

92-6

LOCK WASHER,3/8"

4шт.

44

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
