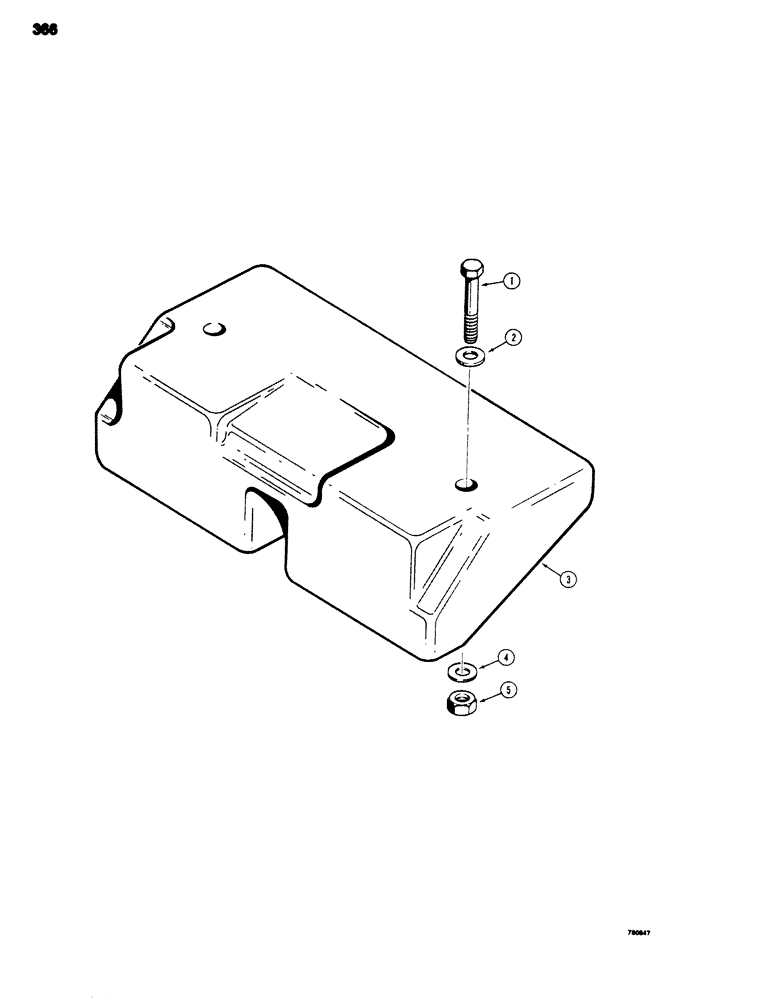

Запчасти Case 680G (366) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

13-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex head, 3/4" - 10 NC x 7-1/2"

2шт.

2

95-12

WASHER,3/4"

- flat, , upper 3/4"

2шт.

3

L74558

WEIGHT

COUNTERWEIGHT - front, 690 lbs. (313 kg)

1шт.

4

195-45

WASHER,3/4"

Lower 3/4"

2шт.

5

25-1012

NUT,3/4"-10, G5

2шт.
