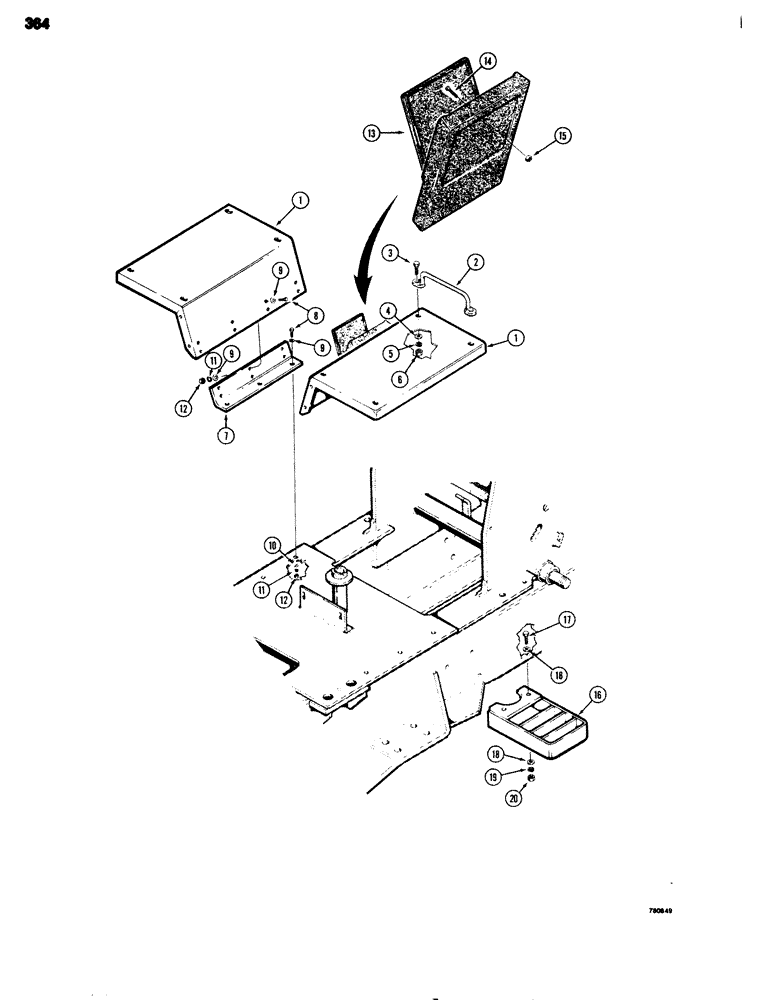

Запчасти Case 680G (364) - FENDERS AND STEPS, MODELS WITH ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

L100987

FENDER

- rear wheel

2шт.

2

L73545

HANDLE

- grab

2шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

L72166

ANGLE

BRACKET - fender mounting

2шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

18шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

30шт.

10

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, special, 3/8"

6шт.

11

92-6

LOCK WASHER,3/8"

18шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

18шт.

13

A141933

BOX

- operator's manual

1шт.

14

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- 1/4" - 20 NC x 3/4"

3шт.

15

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

3шт.

16

L101092

STEP

- operator assist

2шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

18

95-8

WASHER,1/2"

flat 1/2"

8шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.
