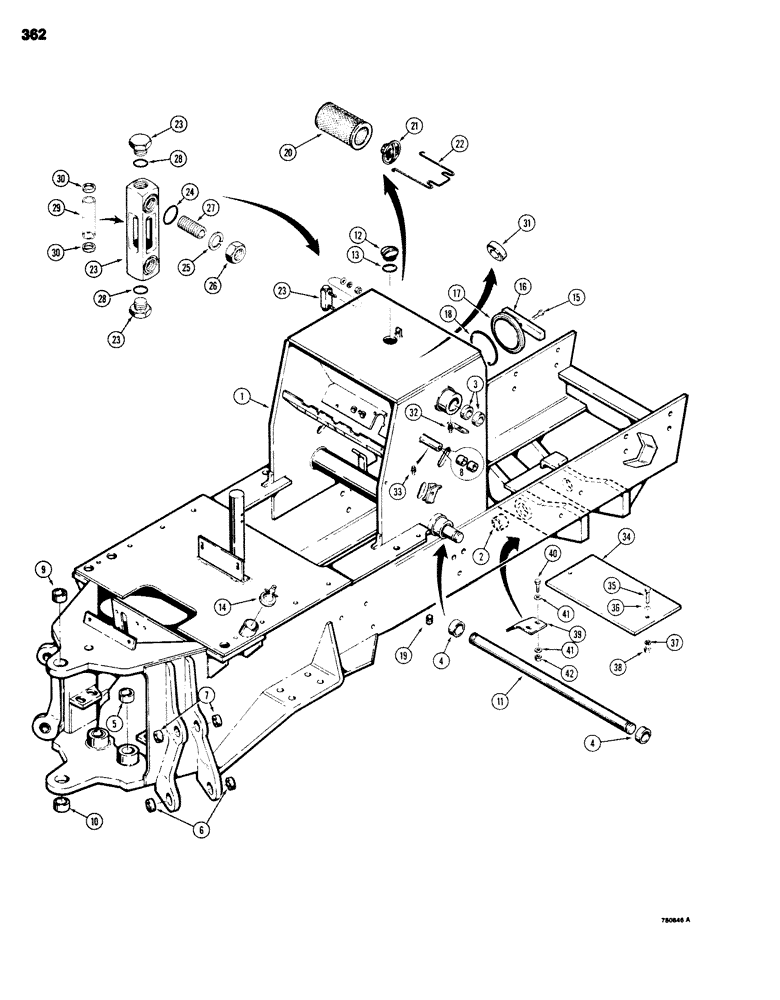

Запчасти Case 680G (362) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

L78143

CHASSIS AND FRAME ASSEMBLY - tractor, used before tractor S/N 9131875, Includes: Ref. 2 - 19

1шт.

1

L101769

CHASSIS

AND FRAME ASSEMBLY - used on tractor S/N 9131875 and after, Includes: Ref. 2 - 19

1шт.

2

L11494

BUSHING

- front axle pivot

2шт.

3

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- loader lift frame pivot

4шт.

4

D43508

BUSHING

- lift cylinder pivot

2шт.

5

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

6

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

7

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

8

L17421

BUSHING

- pivot, anti-roll back

2шт.

9

L70379

BUSHING,63.75mm ID x 76.2mm OD x 31.75mm L

- upper, swing tower mounting

1шт.

10

L58870

BUSHING,54.2mm ID x 57.15mm OD x 31.75mm L

- lower, swing tower mounting

1шт.

11

L57362

SHAFT

- lift cylinder mounting

1шт.

12

L100349

PLUG

CAP - filler, hydraulic tank

1шт.

13

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- filler cap

1шт.

14

L100852

CAP

- filler, fuel tank

1шт.

15

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Cover

1шт.

16

L50741

BAR

- cover holddown

1шт.

17

L55406

COVER

- access, hydraulic filter

1шт.

18

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

- access cover

1шт.

19

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, 3/4" NPT, tank drain

1шт.

20

L72877

FILTER, ELEMENT

FILTER - hydraulic tank, metal

1шт.

21

L59847

VALVE

- filter relief

1шт.

22

L52759

VALVE SPRING

SPRING - filter retainer

1шт.

L79110

GAUGE

- hydraulic oil level, Includes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - guage, includes end plugs

1шт.

24

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - gauge

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

131-402

NUT,PAL, 1/2"-20

NUT - hex, self lock, 1/2"

2шт.

27

D75821

STUD

- mounting

2шт.

28

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- end plugs to body

2шт.

29

D75820

TUBE

- sight, internal

1шт.

30

D75819

GASKET

- internal, sight tube

2шт.

31

L15043

MAGNET

- hydraulic tank

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

33

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

34

L59642

PLATE - pump guard, for counterweight, see Figure 366

1шт.

35

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

36

95-12

WASHER,3/4"

- flat, 3/4"

2шт.

37

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

38

25-102

WASHER

NUT - hex, 3/4" - 10 NC

2шт.

39

L100079

STOP

PLATE - stop, engine and transmission

2шт.

40

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2"

4шт.

41

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened

8шт.

42

131-196

NUT - hex, self lock, 5/8" - 11 NC

4шт.
