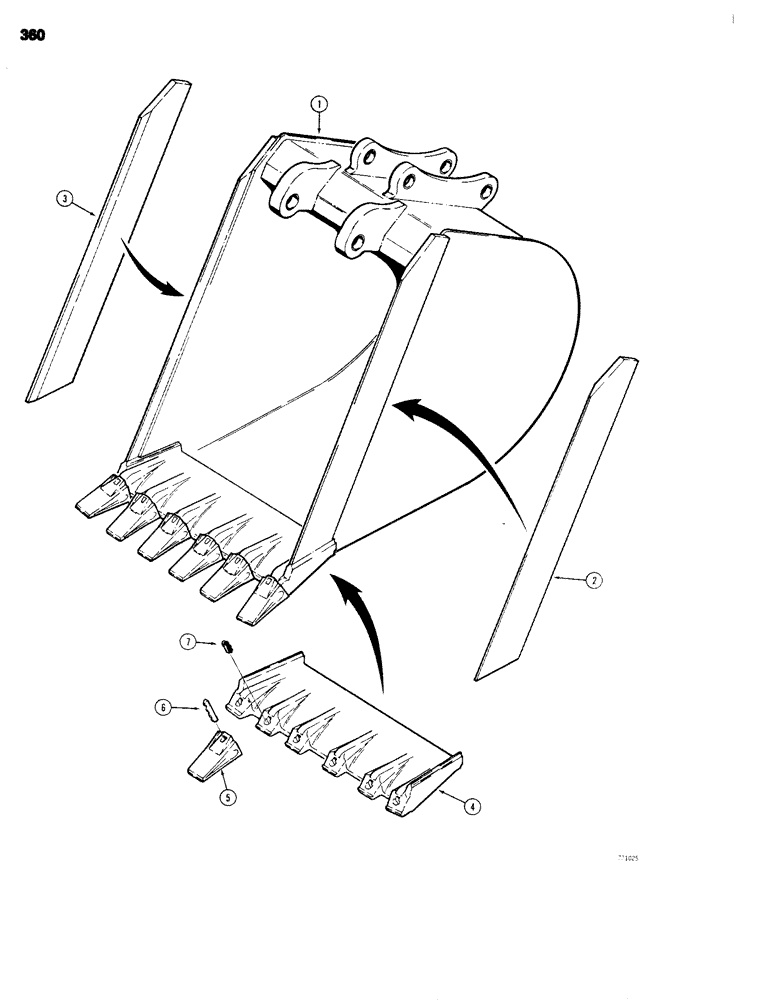

Запчасти Case 680G (360) - BACKHOE BUCKETS, TRENCHING BUCKETS, 24" AND 30" (09) - CHASSIS/ATTACHMENTS

1

L100989

BUCKET - 24 inch (610 mm) heavy duty, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 7

1шт.

2

L72992

BLADE

- cutting, right-hand side

1шт.

3

L72993

BLADE

- cutting, left-hand side

1шт.

L72991

EDGE, CUTTING

BLADE ASSEMBLY - center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

BLADE - center

1шт.

5

R38572

TOOTH

POINT - tooth

5шт.

6

R35318

PIN

- tooth

5шт.

7

R35319

LOCK ASSY

LOCK - tooth

5шт.

1

L100829

BUCKET - 30 inch (762 mm) heavy duty, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 7

1шт.

2

L72992

BLADE

- cutting, right-hand side

1шт.

3

L72993

BLADE

- cutting, left-hand side

1шт.

L73209

BLADE

ASSEMBLY - center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

BLADE - center

1шт.

5

R38572

TOOTH

POINT - tooth

6шт.

6

R35318

PIN

- tooth

6шт.

7

R35319

LOCK ASSY

LOCK - tooth

6шт.
