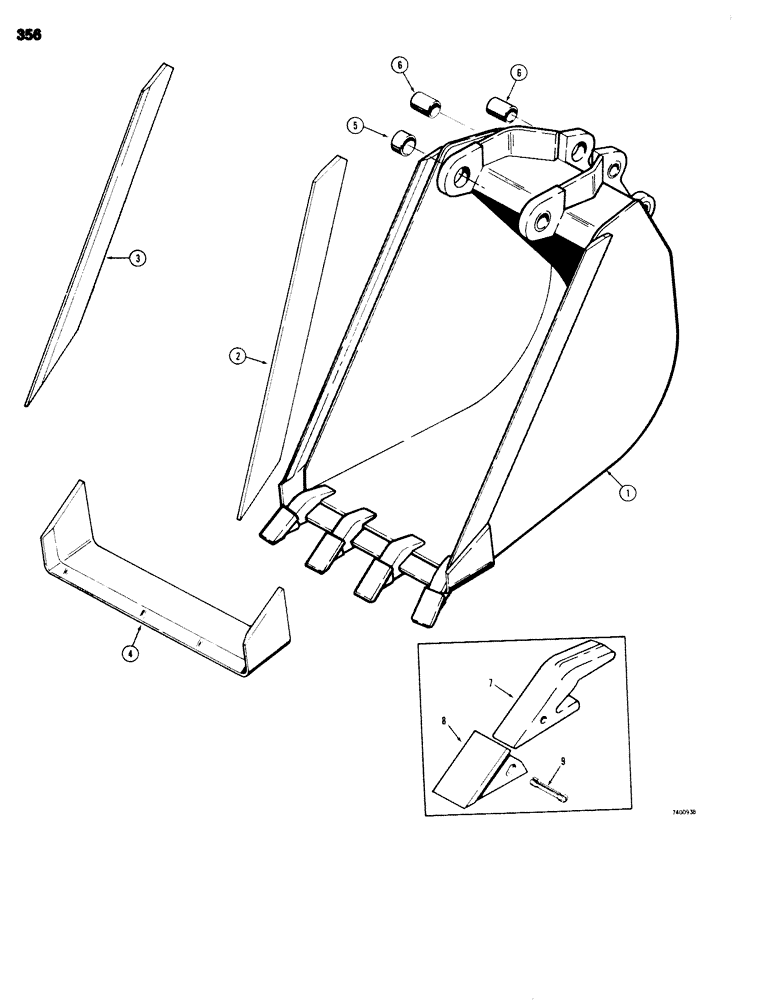

Запчасти Case 680G (356) - BACKHOE BUCKETS, TRENCHING BUCKETS, 24", 30" AND 36", BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

L59873

BUCKET - 24 inch (610 mm) high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

BLADE - cutting, right-hand side

1шт.

3

L70083

EDGE, CUTTING

BLADE - cutting, left-hand side

1шт.

4

D41673

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

1

L59585

BUCKET - 30 inch (762 mm) high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

BLADE - cutting, right-hand side

1шт.

3

L70083

EDGE, CUTTING

BLADE - cutting, left-hand side

1шт.

4

D41870

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

1

L59893

BUCKET - 36 inch (914 mm) high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

BLADE - cutting, right-hand side

1шт.

3

L70083

EDGE, CUTTING

BLADE - cutting, left-hand side

1шт.

4

L43412

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

L43266

TOOTH

ASSEMBLY, included with bucket, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D39093

TOOTH

POINT - tooth

1шт.

8a

D51750

BUCKET TOOTH POINT

POINT - tooth, heavy duty service option, not shown

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.
