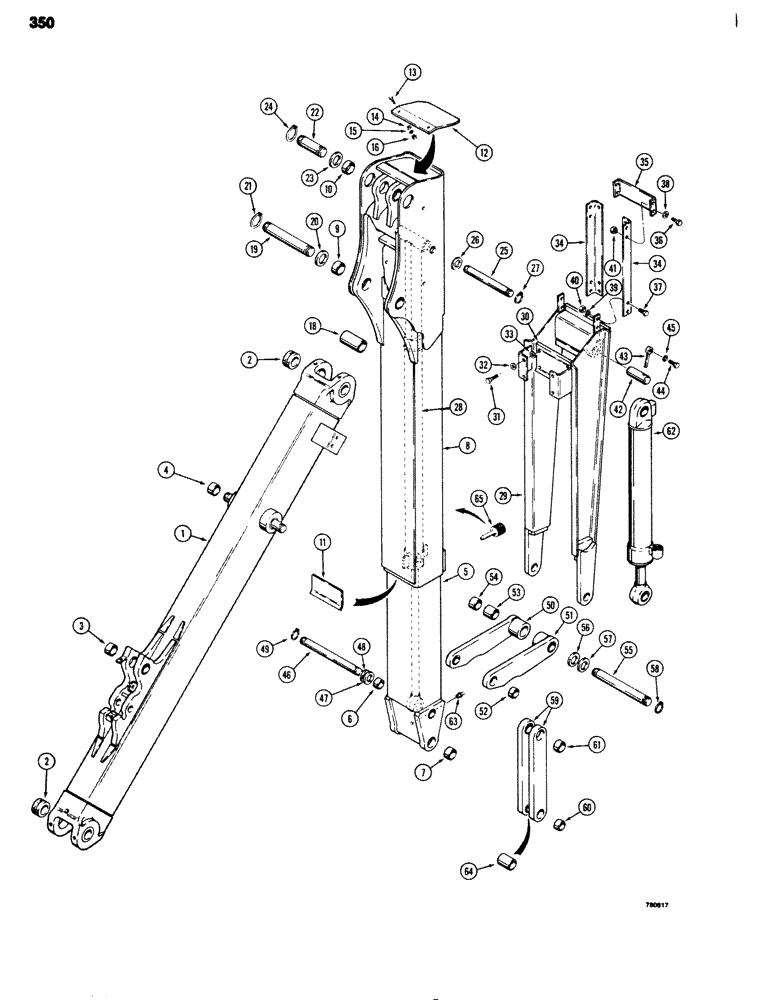

Запчасти Case 680G (350) - EXTENDABLE DIPPER AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

L101164

BOOM

- backhoe, extendahoe, Includes: Ref. 2 - 4

1шт.

2

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom to tower and dipper

4шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at cylinder mounting, 2-1/2" (64 mm) O.D.

2-4шт.

4

L77788

BUSHING

- at boom cylinder mounting, 3" (76 mm) O.D., if used

2шт.

5

L104788

CABLE EXTENSION

EXTENSION - dipper arm, inner, Includes: Ref. 6 , 7

1шт.

6

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- at bucket link

2шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- at bucket

2шт.

8

L101460

ARM

- dipper, Includes: Ref. 9 - 11

1шт.

9

L55734

BUSHING

- at boom pivot

2шт.

10

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- at dipper pivot

2шт.

11

L57012

PLATE ASSY.

PLATE - wear

1шт.

12

L78390

COVER ASSY

COVER - end

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

95-8

WASHER,1/2"

flat 1/2"

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- hex self lock, 1/2" - 13 NC

2шт.

18

L100360

SPACER

-, Serial Range: dipper-boom

1шт.

19

L54388

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

20

D41472

WASHER

- flat, 2-1/4"

2шт.

21

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

22

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

23

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16"

2шт.

24

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

25

L54407

AXLE PIN

PIN - extension, Serial Range: cylinder-dipper

1шт.

26

L79009

WASHER

- flat, 1-1/2"

2шт.

27

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

28

REF

INSTRUCTION

CYLINDER - dipper extension, see Figure 312

1шт.

29

L100120

GUIDE

- bucket cylinder, Includes: Ref. 30, 31

1шт.

30

L100121

PLATE ASSY.

PLATE - wear

1шт.

31

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

32

R24323

WASHER

- flat, 1/2", hardened

1шт.

33

D64050

WASHER

SPACER - wear plate

1шт.

34

L78977

ANGLE

- bucket cylinder hose support

2шт.

35

L78976

BRACKET

- hose support, replaces straight bar on some models, used before tractor S/N 9135963

1шт.

35

L104252

BRACKET

- hose support, used on tractor on S/N 9135963 and after, not shown

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

38

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

41

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

2шт.

42

L57029

PIN

- bucket cylinder to bucket cylinder guide

1шт.

43

R17756

ROD,12.7mm OD x 109.54mm L

LOCK - pin retaining

1шт.

44

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

45

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

46

L58783

AXLE PIN

PIN - dipper extension cylinder and bucket cylinder guide to dipper extension

1шт.

47

L55703

WASHER

- special

2шт.

48

L79009

WASHER

- shim, hardened

1шт.

49

T37909

SNAP RING,#150, Ext

Ring, Snap, , pin #150, Ext

2шт.

50

L57903

DRAG LINK

LINK ASSEMBLY - guide, left-hand, Includes: Ref. 52 - 54

1шт.

51

L57904

DRAG LINK

LINK ASSEMBLY - guide, right-hand, Includes: Ref. 52 - 54

1шт.

52

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- guide link, at bar end

1шт.

53

D40089

BUSHING

- guide link, at boss, long

1шт.

54

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- guide link, at boss, short

1шт.

55

L74047

AXLE PIN

PIN - guide and dump link to bucket cylinder at rod end

1шт.

56

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, shim

1шт.

57

L50511

WASHER

- special, 1-3/4"

2шт.

58

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

59

L55835

DRAG LINK

LINK ASSEMBLY - bucket, Includes: Ref. 60, 61

2шт.

60

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, 1-1/2" (38 mm) I.D.

1шт.

61

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, 1-3/4" (44 mm) I.D.

1шт.

62

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see Figure 310

1шт.

63

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

64

L55723

SPACER

- bucket links

1шт.

65

219-107

NOZZLE CAP

GREASE FITTING - special, use for lubrication of dipper arm (store in tool box)

1шт.
