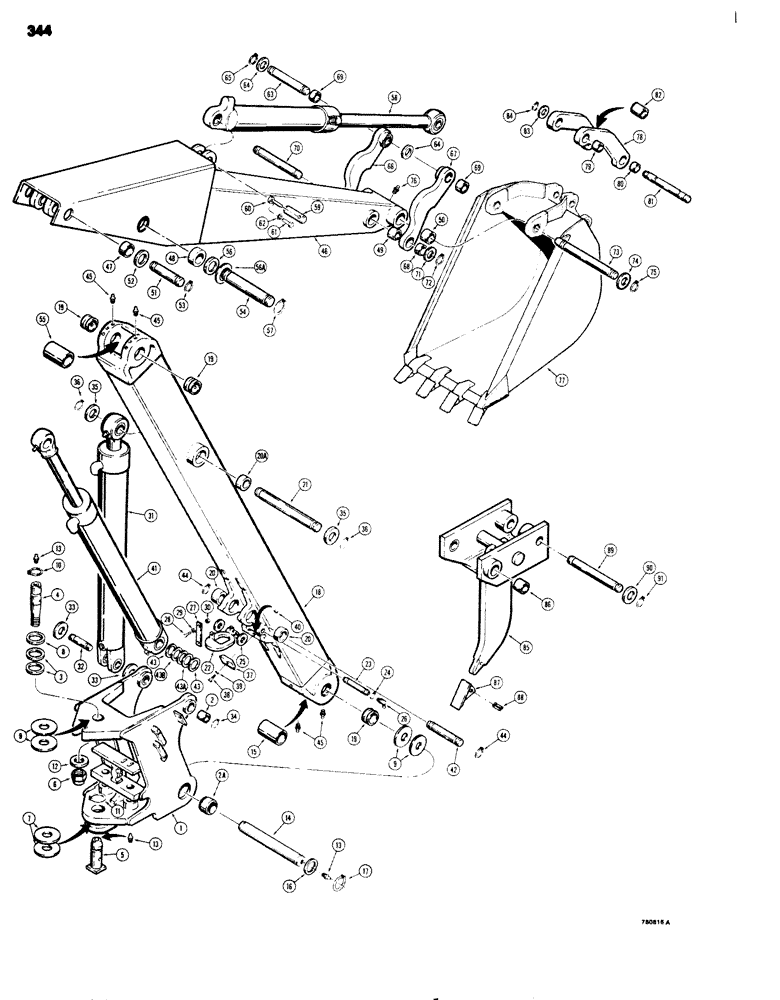

Запчасти Case 680G (344) - TOWER, BOOM, DIPPER ARM AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

L101177

BOOM

TOWER - backhoe swing, Includes: Ref. 2, 2A

1шт.

2

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tower, at boom cylinders

2шт.

2a

L78951

BUSHING

- tower, at boom

2шт.

3

195-2167

WASHER,2 5/8" x 4" x .109"

- spacer, 2-1/2" (63 mm)

1шт.

4

L105696

AXLE PIN,63.5mm OD x 246.38mm L

PIN - tower mounting, upper

1шт.

Snap ring groove is not necessary and was deleted in Nov. 1988. Pin should be installed without the snap ring. The OAL is 9.4, one end threaded.

1шт.

5

L59120

AXLE PIN

PIN - tower mounting, lower

1шт.

6

25-1528

JAM NUT

- hex, 1-3/4" - 12 NF, thin height, if used

1шт.

6

131-484

NUT,1 3/4"-12

NUT - hex, self lock 1-3/4" - 12 NF, thin height, can be used to replace plain nut, if used

1шт.

7

L47461

WASHER

SHIM - pin mounting, lower pin

1шт.

8

L47700

WASHER

- special, upper pin

1шт.

9

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- shim, upper pin and boom pin

1шт.

10

L16015

RING

- upper pin retaining

1шт.

11

L59033

SNAP RING,#212, Ext

Ring, Snap, , lower pin #212, Ext

1шт.

12

L59117

WASHER

- special, lower pin

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

14

L79012

AXLE PIN

PIN -, Serial Range: boom-tower

1шт.

15

L100360

SPACER

- boom

1шт.

16

D41472

WASHER

- flat, used as spacer

1шт.

17

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

1шт.

18

L101164

BOOM

- backhoe, Includes: Ref. 19 - 20A

1шт.

19

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom ends

4шт.

20

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at cylinder mounting, 2-1/2" (64 mm) O.D.

2шт.

20a

L77788

BUSHING

- at boom cylinder mounting, 3" (76 mm) O.D.

1шт.

21

L54419

AXLE PIN

PIN - boom, Serial Range: cylinder-boom

1шт.

22

L100953

RING

- boom lock

1шт.

23

D42611

PIN

- boom lock

1шт.

24

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

25

A11990

WASHER

- special

2шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

27

L73300

STRAP

- boom lock

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

29

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

30

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

31

REF

INSTRUCTION

CYLINDER - boom, see Figure 306

2шт.

32

L79244

AXLE PIN,38.1mm OD x 120.65mm L

PIN - boom, Serial Range: cylinder-tower

2шт.

32a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, L79244 pin, not shown

2шт.

33

L79009

WASHER

- spacer

1шт.

34

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

35

195-2155

WASHER,2 1/16" x 3" x .109"

- pin

2шт.

36

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

37

L79185

BLOCK

- stop

1шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Stop block mounting Hex, 3/8"-16 x 1 3/4", G5

1шт.

39

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

40

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

1шт.

41

REF

INSTRUCTION

CYLINDER - hydraulic, dipper, see Figure 312

1шт.

42

L54437

AXLE PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

43

L11917

WASHER

SPACER - dipper cylinder to boom, .07" (1.78 mm) thick

2шт.

43a

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

SPACER - dipper cylinder to boom, .25" (6.35 mm) thick

2шт.

43b

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

SPACER - dipper cylinder to boom, .18" (4.76 mm) thick

2шт.

44

D26919

SNAP RING,#200, Ext

Ring, Snap, , dipper cylinder pin #200, Ext

2шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

46

L107300

BOOM

DIPPER - backhoe, Includes: Ref. 47 - 50

1шт.

47

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- dipper cylinder mounting

2шт.

48

L55734

BUSHING

- dipper pivot

2шт.

49

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper at bucket link

2шт.

50

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper at bucket

2шт.

51

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

52

195-2155

WASHER,2 1/16" x 3" x .109"

- dipper cylinder pin

2шт.

53

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

54

L54388

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

55

L100360

SPACER

- boom end casting

1шт.

56

D41472

WASHER

- flat, 3" (76 mm) O.D.

1шт.

57

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

58

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see Figure 310

1шт.

59

L57029

PIN

- bucket, Serial Range: cylinder-dipper

1шт.

60

R17756

ROD,12.7mm OD x 109.54mm L

PIN - retaining

1шт.

61

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

62

92-8

LOCK WASHER,1/2"

1шт.

63

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - bucket cylinder to bucket link

1шт.

64

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- bucket cylinder pin

1шт.

65

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

66

L55934

DRAG LINK

LINK - bucket guide, left-hand, Includes: Ref. 68, 69

1шт.

67

L55933

DRAG LINK

LINK - bucket guide, right-hand, Includes: Ref. 68, 69

1шт.

68

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- link, for 1-1/2" (38 mm) pin

1шт.

69

L58710

BUSHING,44.45mm ID x 53.98mm OD x 44.45mm L

- link, for 1-3/4" (44 mm) pin

1шт.

70

D53812

PIVOT PIN,1.5" OD x 10.14" L

PIN - guide, Serial Range: link-dipper

1шт.

71

L79009

WASHER

- spacer

1шт.

72

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

73

L79166

AXLE PIN

PIN -, Serial Range: bucket-dipper

1шт.

74

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16" (46 mm) I.D.

1шт.

75

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

76

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING

1шт.

77

REF

INSTRUCTION

BUCKET - backhoe, see Figures 354 thru 360 for proper bucket

1шт.

78

L55936

DRAG LINK

LINK - backhoe, Includes: Ref. 79, 80

2шт.

79

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, for 1-3/4" (44 mm) pin

1шт.

80

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, for 1-1/2" (38 mm) pin

1шт.

81

D37614

PIN,38mm Od x 246mm L

-, Serial Range: link-bucket

1шт.

82

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER -, Serial Range: link-bucket

1шт.

83

L79009

WASHER

- spacer

2шт.

84

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

85

D54136

SUPPORT ASSY.

FROST TOOTH - backhoe, Includes: Ref. 86

1шт.

86

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost tooth

2шт.

87

D83306

POINT

- tooth

1шт.

88

D43417

PIN

FLEX PIN - point

1шт.

89

D54218

PIN,38.1mm OD x 345.95mm L

- bucket link to frost tooth

1шт.

90

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- used with D54218 pin only

2шт.

91

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.
