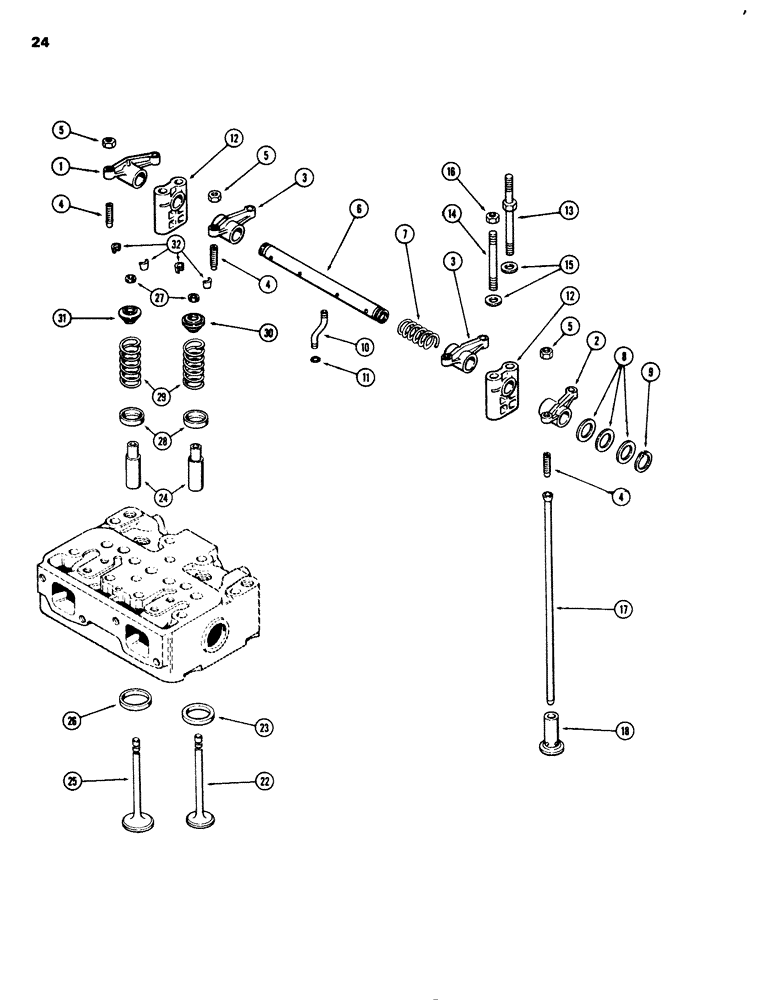

Запчасти Case 680G (024) - VALVE MECHANISM, 336BD DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A148137
ROCKER ARM
ARM ASSEMBLY - rocker, exhaust valves first and third cylinders, Includes: Ref. 4, 5
2шт.
2
A148138
ARM
ASSEMBLY - rocker, exhaust valves second and fourth cylinders, Includes: Ref. 4, 5
2шт.
3
A148136
ARM
ASSEMBLY - rocker, intake valves, Includes: Ref. 4, 5
4шт.
4
A21105
ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"
SCREW - adjusting, rocker arm
1шт.
5
25-116
NUT,Hex, 3/8"-24, G5
- lock, adjusting screw, 3/8" NF hex
1шт.
Order P/N 425-116.
1шт.
6
A150545
SHAFT
- rocker arm (Replaces A57532)
2шт.
7
A27877
SPRING
- rocker shaft
2шт.
8
A27878
WASHER
- rocker shaft, 7/8 x 1-5/16 x 1/32" (22.23 x 33.34 x 0.79 mm)
1шт.
9
B18206
SNAP RING,#87, Ext
Ring, Snap, , rocker shaft #87, Ext
4шт.
10
A58657
TUBE
- oil, rocker shaft
2шт.
11
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
oil tube, 3/16 x 5/16 x 1/16" (4.76 x 7.94 x 1.59 mm)
2шт.
12
A61128
BRACKET
- rocker arm shaft
4шт.
13
A67121
STUD
- bracket, 7/16" NC x 6-7/16"
4шт.
14
A58659
STUD
- bracket, 7/16" NC x 4-5/16"
4шт.
15
195-29
WASHER,7/16"
- 7/16 x 15/16 x 1/16" (11.11 x 23.81 x 1.59 mm)
8шт.
16
25-107
NUT,7/16"-14, G5
- 7/16" NC hex
4шт.
17
A157328
ROD
- push (Replaces A141841)
8шт.
18
A20865
TAPPET
LIFTER - push rod (Standard)
8шт.
18
A21857
TAPPET
LIFTER - push rod, 0.010" oversize (0.254 mm)
8шт.
22
A41753
VALVE
KIT - exhaust (Set of 2)
4шт.
23
A66192
INSERT
- exhaust valve seat
4шт.
24
A41783
GUIDE
- intake and exhaust valves
8шт.
25
A41754
VALVE
KIT - intake (Set of 2)
2шт.
26
A60557
INSERT
- intake valve seat
4шт.
27
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
- valve stem
8шт.
28
A66328
SEAT
- valve springs
8шт.
29
A66444
SPRING
- valves
8шт.
30
A66336
ROTATOR
- exhaust valves
4шт.
31
A44645
KIT
RETAINER KIT - intake valves (includes 2 retainers and 4 locks)
2шт.
32
A27872
LOCK
- valve retainers (keepers)
16шт.
Выбрано товаров: 31
