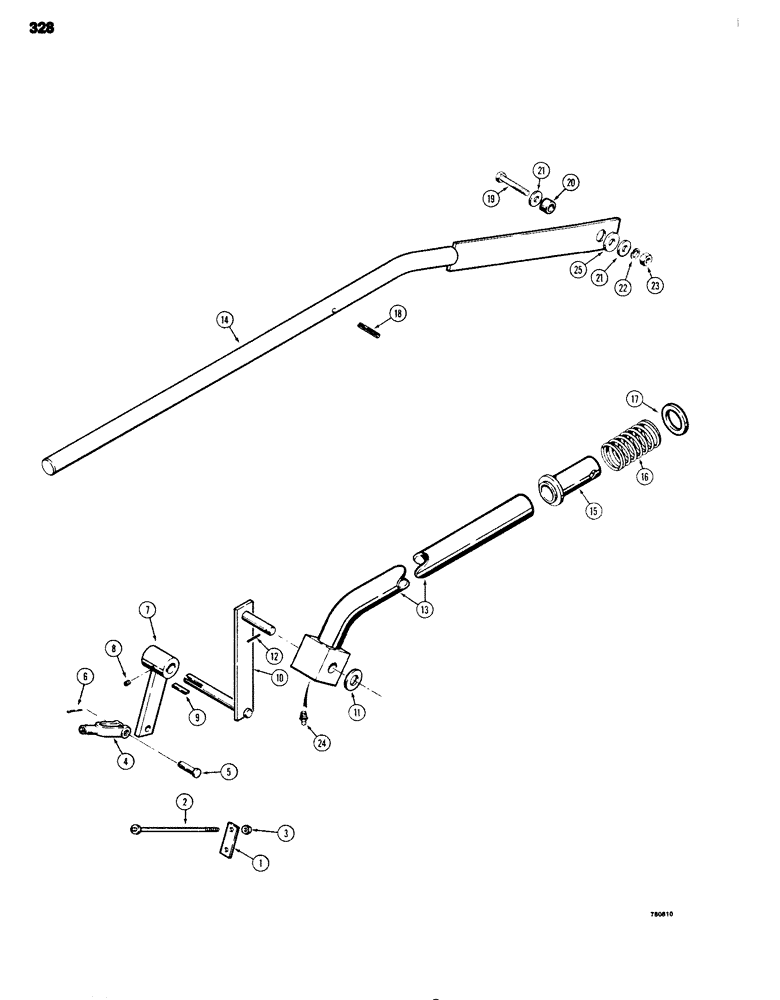

Запчасти Case 680G (328) - LOADER CONTROL, ANTI-ROLLBACK PARTS (09) - CHASSIS/ATTACHMENTS

1

L53636

PLATE ASSY.

PLATE - anti-rollback control, at valve control lever

1шт.

2

114-146

BOLT

BOLT - control, anti-rollback, rear

1шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, lock, 5/16" - 24 NF

1шт.

4

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod, 5/16"

1шт.

5

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

6

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

7

L77524

PIVOT ASSY.

LINK - pivot, anti-rollback control

1шт.

8

85-68

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SCREW - set, 3/8" x 1/2"

1шт.

9

A27001

KEY

- parallel, 3/16" x 1-3/8"

1шт.

10

L72910

ARM

BELLCRANK - control, anti-rollback

1шт.

11

195-45

WASHER,3/4"

1шт.

12

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

13

L73169

TUBE

- support, anti-rollback rod

1шт.

14

L70180

ROD

- control, anti-rollback, front

1шт.

15

L70294

SLEEVE CYLINDER

SLEEVE - spring

1шт.

16

T51274

VALVE SPRING

SPRING - anti-rollback control

1шт.

17

195-2122

WASHER,1 5/16" x 1 3/4" x .065"

- flat, 1-1/4"

5шт.

18

138-2039

PIN,1/4" x 2", Coiled

1шт.

19

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

1шт.

20

L57298

BUSHING

- pivot, control rod

1шт.

21

95-8

WASHER,1/2"

flat 1/2"

2шт.

22

92-8

LOCK WASHER,1/2"

1шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

25

195-2089

WASHER,25/32" x 1 1/2" x .083"

- special, used between rod and link

1шт.
