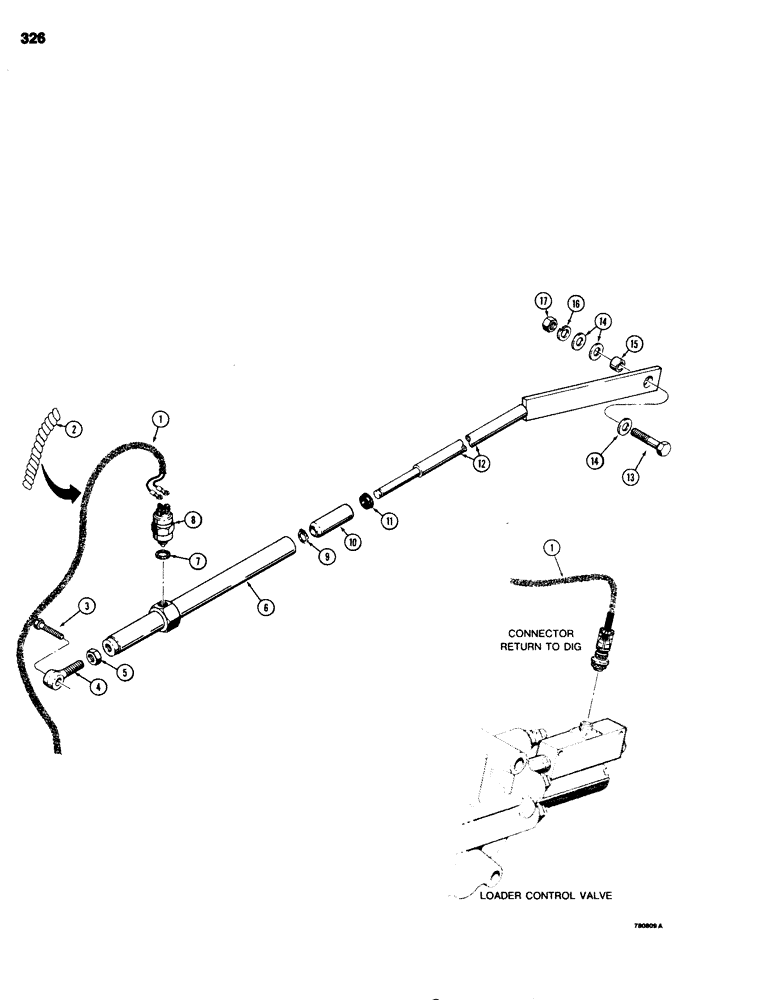

Запчасти Case 680G (326) - LOADER RETURN-TO-DIG PARTS (09) - CHASSIS/ATTACHMENTS

1

L102528

HARNESS

- wiring

1шт.

2

L77321

STRAP - spiral

6шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

4

L73773

EYE

- rod

1шт.

5

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

1шт.

6

L105158

TUBE,4.03" L

- outer

1шт.

7

A31053

COPPER SEAL

GASKET - switch

1шт.

8

L77836

SWITCH

- return-to-dig

1шт.

9

A11538

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

10

L72720

TUBE,0.52" ID x 0.995" OD x 2.93" L

- inner slide

1шт.

11

L71557

SEAL

SEAL - inner tube

1шт.

12

L72771

ROD

- return-to-dig

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

1шт.

14

95-8

WASHER,1/2"

flat 1/2"

3шт.

15

L57298

BUSHING

- pivot

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.
