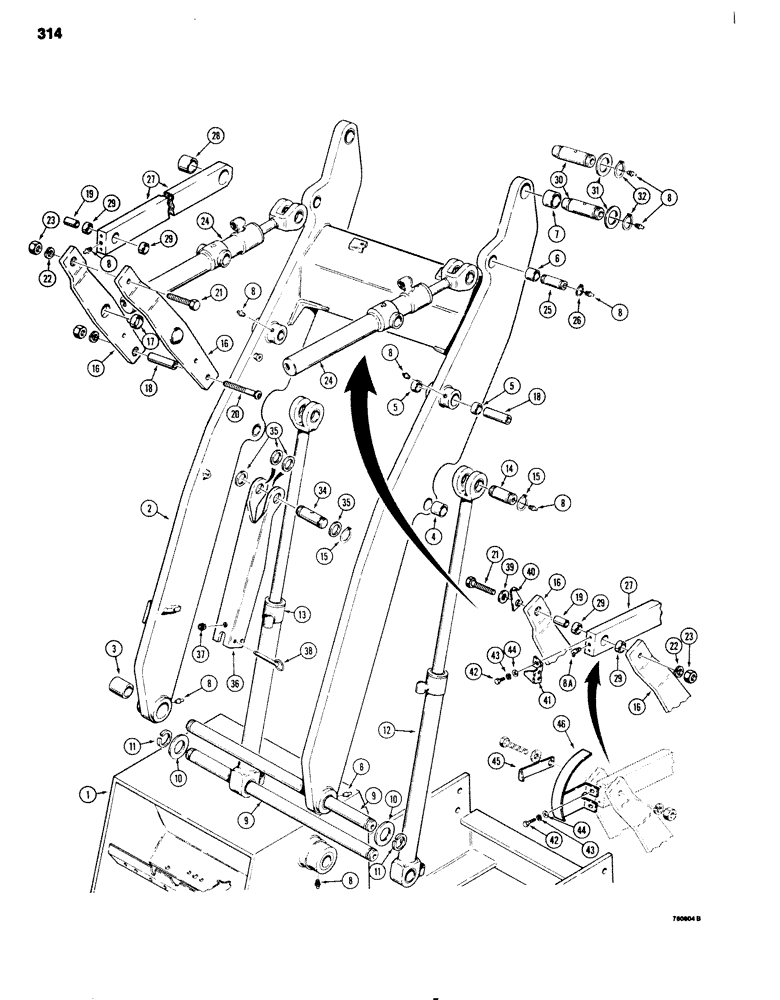

Запчасти Case 680G (314) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - see Figure 362 for proper parts and bushings

1шт.

2

L107664

ARM ASSY.

FRAME ASSEMBLY - loader lift, Includes: Ref. 3 - 7

1шт.

3

L79365

BUSHING

- lift frame at chassis, models with single bushings

2шт.

4

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- lift frame at lift cylinders

2шт.

5

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- lift frame at bucket linkage

4шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- lift frame at bucket cylinders

2шт.

7

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- lift frame at bucket

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

13шт.

8a

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT, right-hand link

1шт.

9

L57362

SHAFT

PIN - pivot, lift arm and lift, Serial Range: cylinders-chassis

2шт.

10

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

1шт.

11

D34664

RING

- pin retaining

4шт.

12

REF

INSTRUCTION

CYLINDER - right-hand lift, see Figure 292

1шт.

13

REF

INSTRUCTION

CYLINDER - left-hand lift, see Figure 292

1шт.

14

D34658

PIN,44.45mm OD x 101.6mm L

- mounting, lift cylinder to lift frame, right-hand

1шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

16

L74595

BELLCRANK ASSEMBLY - includes bushings, Includes: Ref. 17

4шт.

17

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- bellcrank at cylinder

1шт.

18

L57197

AXLE PIN

SPACER - bellcrank

2шт.

19

L74594

SPACER

- used with offset bellcranks only

2шт.

20

164-675

BOLT,Btn Hd, 3/4" - 10 x 6 3/4", Gr 8

- button head, 3/4" - 10 NC x 6-3/4", grade 8, if used

2шт.

This is a special button head bolt. Catalog 680E shows they also could use 26-12108 hex head bolt in this application.

1шт.

21

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex head, 3/4" - 10 NC x 4-1/2", grade 8, used with offset bellcranks at bucket link

2шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

23

129-138

NUT,3/4"-10, G8

4шт.

24

REF

INSTRUCTION

CYLINDER - bucket tilt, see Figure 294

2шт.

25

D34656

PIN,38.1mm OD x 101.6mm L

- bucket cylinder to lift frame

2шт.

26

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

27

L100869

LINK

ASSEMBLY - bucket, Includes: Ref. 28, 29

2шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- link, at bucket

1шт.

29

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- link, at bellcrank

2шт.

30

L55737

AXLE PIN

PIN - bucket link and lift, Serial Range: arm-bucket

4шт.

31

195-2155

WASHER,2 1/16" x 3" x .109"

- flat

8шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

8шт.

34

L78791

AXLE PIN

PIN - lift cylinder mounting, left-hand

1шт.

35

195-2151

WASHER,1 13/16" x 2 1/2" x .065"

- flat

4шт.

36

L78530

STRUT

- safety

1шт.

37

D42106

GROMMET

- rubber

1шт.

38

L78801

AXLE PIN

PIN - hitch

1шт.

39

L78179

WASHER - flat, 3/4", special

1шт.

40

L100866

BRACKET

INDICATOR - bucket, bellcrank

1шт.

41

L100865

INDICATOR - bucket, link

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

43

92-5

LOCK WASHER,5/16"

2шт.

44

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

45

L101063

POINTER

INDICATOR - bucket, bellcrank, special part used with 4-in-1 bucket

1шт.

46

L101254

BRACKET

- decal mounting, special part used with 4-in-1 bucket

1шт.
