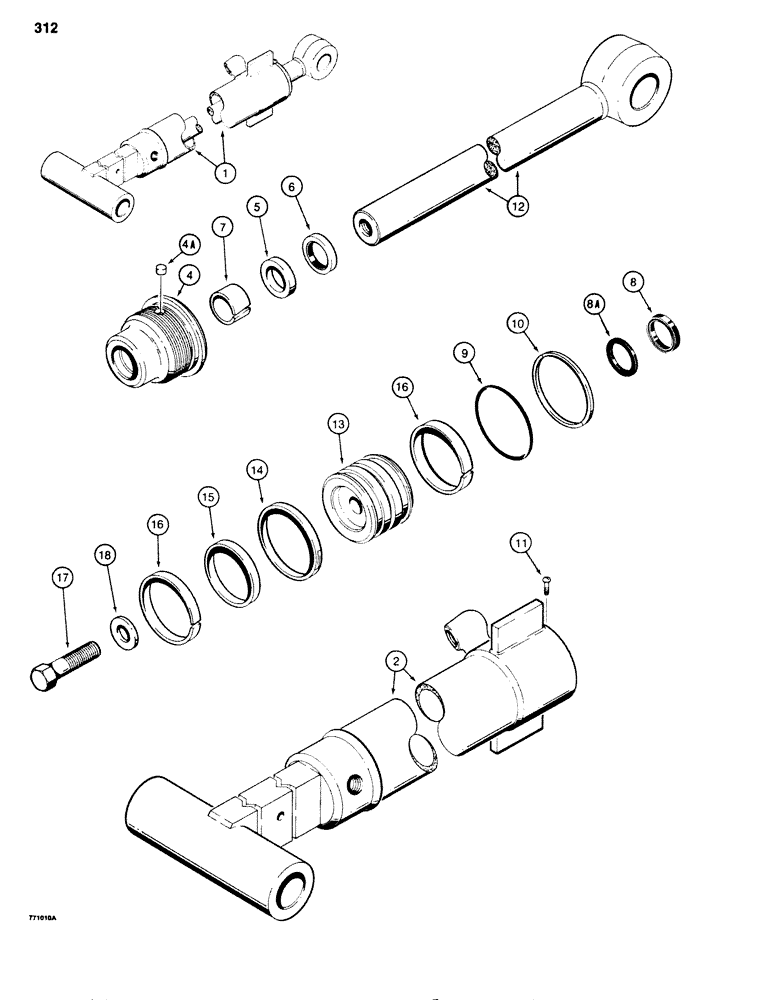

Запчасти Case 680G (312) - G101259 BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

G101259

CYLINDER BLOCK

CYLINDER ASSEMBLY - dipper extension, 3" (76 mm) x 48" 1219 mm) stroke, Includes: Ref. 2 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G34427

TUBE,78.81 mm L

ASSEMBLY - cylinder

1шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G105548

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of seal kit P/N G105548

1шт.

8

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105548

1шт.

8a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 8A in some glands

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105548

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

RING - gland O-ring

1шт.

Part of seal kit P/N G105548

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4", if used

1шт.

12

G34432

ROD

- piston, 1-1/2" (38 mm) O.D.

1шт.

13

G100442

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G105548

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of seal kit P/N G105548

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G105548

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G105548

KIT

- seal, Includes: Ref. 6 - 8, 9, 10, 14 - 16, same as G102404 kit plus Ref. 8A

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold, Includes: Ref. 8

1шт.
