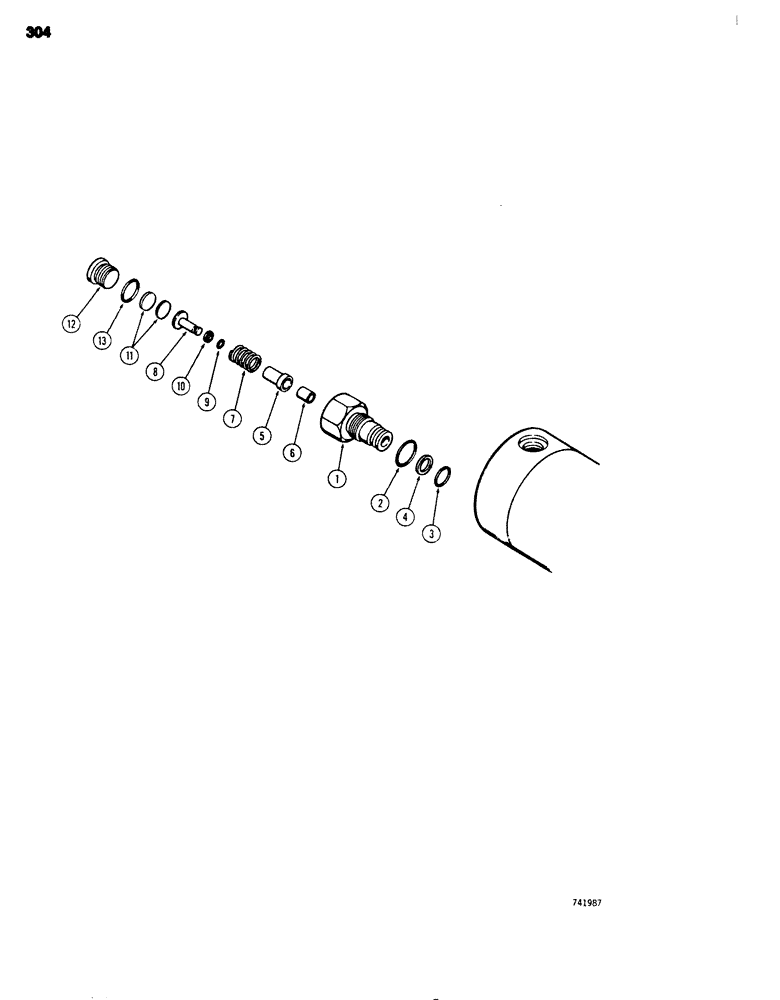

Запчасти Case 680G (304) - L78723 RELIEF VALVE (08) - HYDRAULICS

L78723

LOCK VALVE

VALVE ASSEMBLY - relief, Includes: Ref. 1 - 13

1шт.

1

D47667

CAP

BODY - relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body

1шт.

3

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- body

1шт.

4

D37071

RING

- O-ring backup

1шт.

5

D46024

SPOOL

PLUNGER - relief valve

1шт.

6

D37075

SEAT

- plunger

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37073

GUIDE

- plunger spring

1шт.

9

D40356

O-RING

- spring guide

1шт.

10

D40357

RING

- O-ring backup

1шт.

11

R33411

SHIM,.0105" Thk

Spring guide .0105" Thk

1шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Relief valve, Incl Ref 13 Hex Soc, 3/4"-16 ORB

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
