Запчасти Case 680G (302) - G104134 BACKHOE SWING CYLINDER (08) - HYDRAULICS

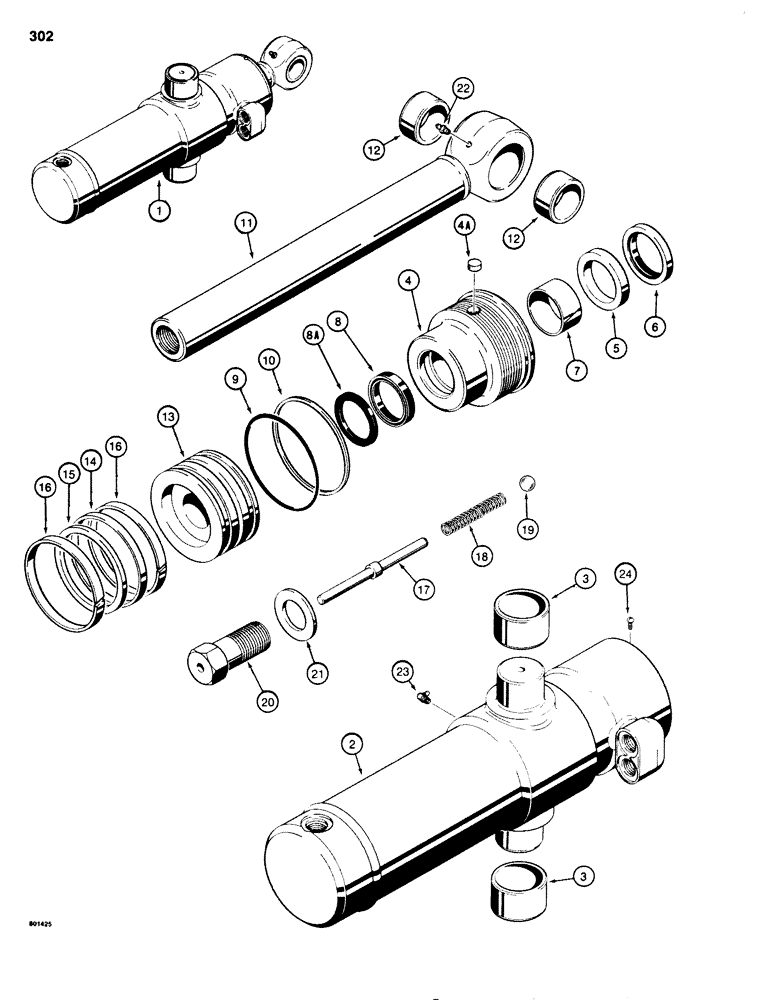

Схема запчастей Case 680G - (302) - G104134 BACKHOE SWING CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G104134

CYLINDER BLOCK

CYLINDER ASSEMBLY - swing, 4" (101 mm) ID x 11-1/4" (284 MM) stroke, Includes: Ref. 2 - 24

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

See Figure 304 for swing cylinder relief valve.

1шт.

2

G103774

TUBE,469.89" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

- tube

2шт.

G104407

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING - gland assembly

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N G105545

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N G105545

1шт.

8

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105545

1шт.

8a

G102647

SEAL

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of seal kit P/N G105545

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105545

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of seal kit P/N G105545

1шт.

11

G34775

ROD ASSY.

ROD ASSEMBLY - piston, 2" (51 mm) OD, Includes: Ref. 12

1шт.

12

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

- piston rod

1шт.

13

G101309

PISTON

- cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G105545

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G105545

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G105545

1шт.

17

G102245

AXLE PIN

PIN - cushion relief

1шт.

18

D38683

SPRING

- cushion relief

1шт.

19

211-17

BALL,3/4" Dia

- cushion relief spring

1шт.

20

G34885

BOLT

BOLT - piston and cushion relief

1шт.

21

G32351

WASHER

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

2шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used

1шт.

G105545

SEAL

KIT - seal, Includes: Ref. 6 - 10, 14 - 16, same as G102401 kit plus Ref. 8A

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold, Includes: Ref. 8

1шт.
