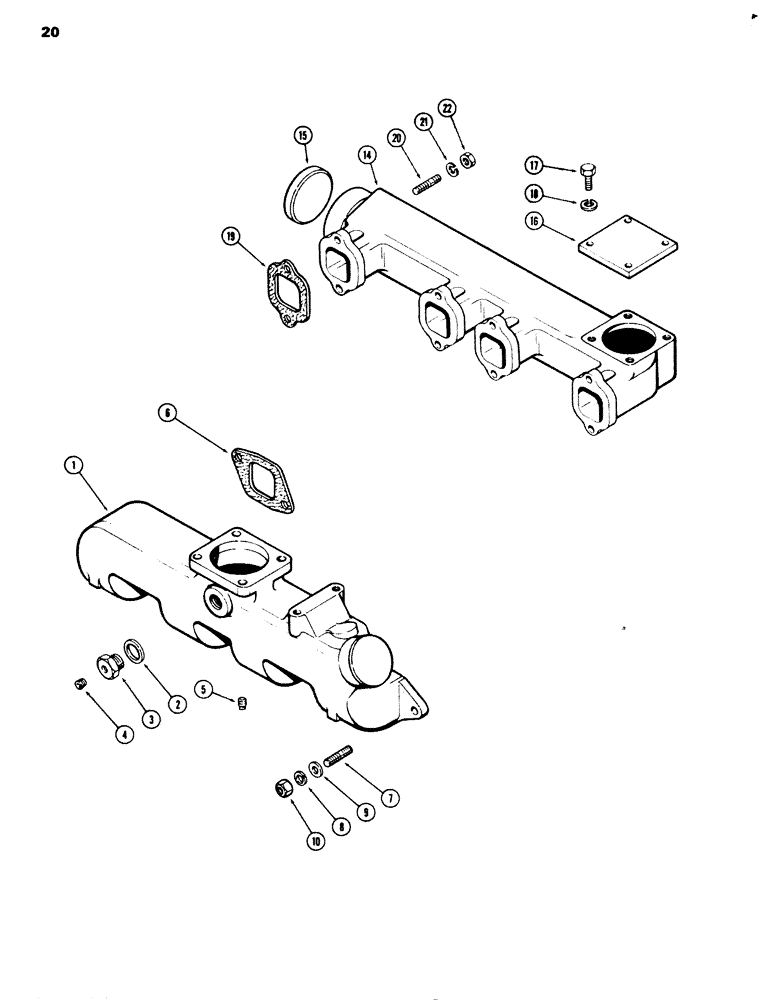

Запчасти Case 680G (020) - MANIFOLDS, EXHAUST MANIFOLD (02) - ENGINE

1

A154149

MANIFOLD

- intake (Replaces A140120) Includes: Ref. 2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - heater hole plug

1шт.

3

L10283

PLUG

- heater hole (Replaces A20917)

1шт.

4

221-1849

PLUG

- 1/8" PT hex socket head

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A59077

STUD

- intake manifold, 3/8" NC x 1-13/16"

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.52 x 20.64 x 1.59 mm)

8шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex

8шт.

14

A58749

MANIFOLD

- Exhaust

1шт.

15

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" cup type (82.55 mm)

1шт.

16

A58665

COVER

PLATE - outlet cover

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plate to manifold Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

20

A59077

STUD

- exhaust manifold, 3/8" NC x 1-13/16"

8шт.

21

92-6

LOCK WASHER,3/8"

8шт.

22

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf

8шт.
