Запчасти Case 680G (288) - L104049 AND L59641 HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

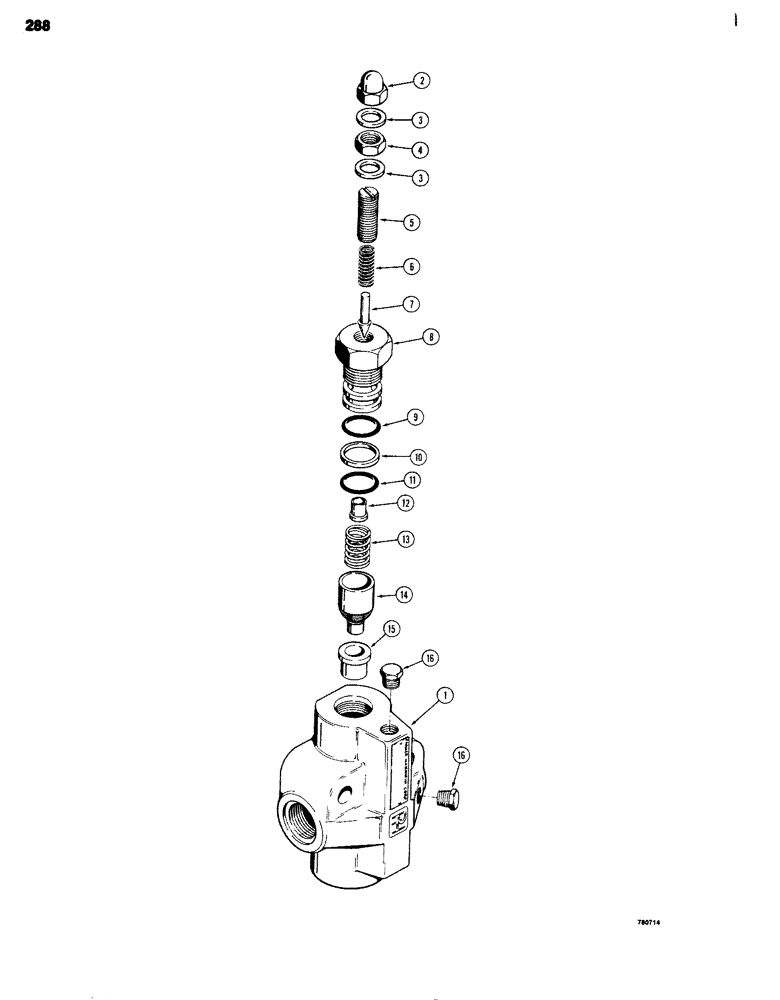

Схема запчастей Case 680G - (288) - L104049 AND L59641 HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

L104049

VALVE

ASSEMBLY - relief, hydraulic, Parker Hannifin No. VPRP5X-014, includes an instruction sheet, Includes: Ref. 1 - 16

1шт.

L59641 and L104049 relief valves are interchangeable. L59641 is preset to the correct setting for the 680G hydraulic system. L104049 is not preset and must be adjusted when installing on the machine.

1шт.

L59641

VALVE

ASSEMBLY - relief, hydraulic, Parker Hannifin No. VPRP5B-3-A-A-270 or VPRP5X-018, Includes: Ref. 1 - 16

1шт.

L59641 and L104049 relief valves are interchangeable. L59641 is preset to the correct setting for the 680G hydraulic system. L104049 is not preset and must be adjusted when installing on the machine.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

W12116

KIT

VALVE ASSEMBLY - relief, Includes: Ref. 2 - 15

1шт.

2

129-514

CROWN NUT,Low, 5/16" - 24

- acorn

1шт.

3

D26270

WASHER, SEALING

SEAL - lock and acorn nut

2шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, 5/16" - 24 NF

1шт.

5

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - set

1шт.

6

D26268

SPRING

- pilot

1шт.

7

D26267

PLUNGER

- pilot

1шт.

8

D26262

CAP

- relief valve body

1шт.

10

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - backup

1шт.

11

L30444

O-RING,0.521" ID x 0.661" OD

- inner

1шт.

12

D26266

SEAT

- pilot

1шт.

13

D26261

VALVE SPRING

SPRING - plunger

1шт.

14

L30687

SPOOL

POPPET ASSEMBLY - valve, includes following plunger, screen and retainer

1шт.

NSS

NOT SOLD SEPARAT

PLUNGER - poppet

1шт.

NSS

NOT SOLD SEPARAT

SCREEN - poppet, order L30687

1шт.

W12133

RETAINER - snap ring

1шт.

15

D26259

SEAT

- relief valve plunger

1шт.

16

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, 1/8" NPT

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- outer

1шт.

Выбрано товаров: 24
