Запчасти Case 680G (286) - L54770 FLOW CONTROL VALVE (08) - HYDRAULICS

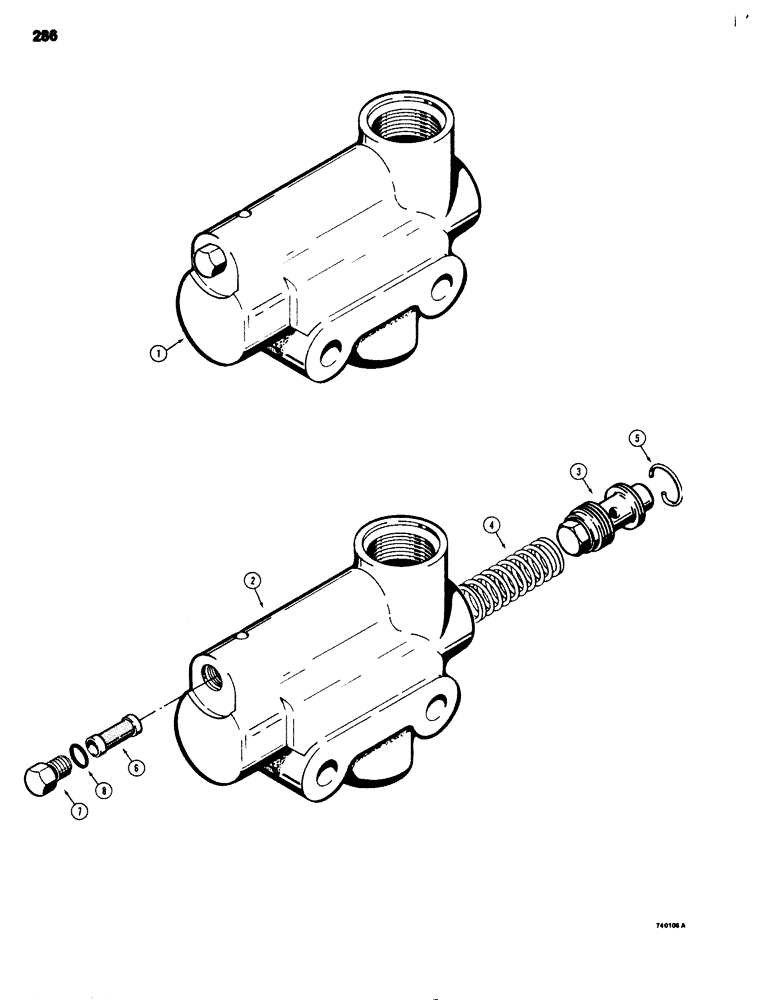

Схема запчастей Case 680G - (286) - L54770 FLOW CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

L54770

LOCK VALVE

VALVE - flow control, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - flow divider valve

1шт.

3

E74266

SPOOL

VALVE - relief

1шт.

4

D46216

SPRING

- compression

1шт.

5

D46214

CIRCLIP

RING - spring retaining

1шт.

6

L33959

FILTER, ENGINE OIL

SCREEN - filter

1шт.

7

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Screen retaining, Includes Ref. 8 Hex Hd, 3/8"-24 ORB

1шт.

8

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

Выбрано товаров: 8
