Запчасти Case 680G (282) - BACKHOE CONTROL VALVE, SWING SECTION (08) - HYDRAULICS

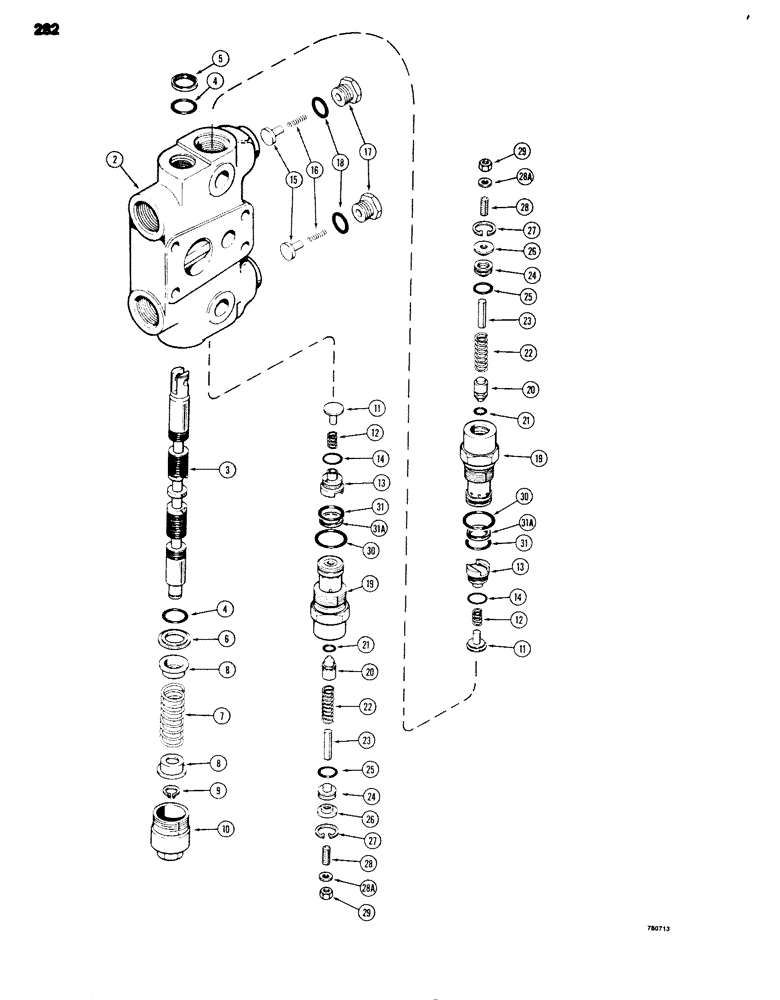

Схема запчастей Case 680G - (282) - BACKHOE CONTROL VALVE, SWING SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G100192

ELEMENT

SECTION ASSEMBLY - swing, not shown assembled, Includes: Ref. 2 - 31A

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - swing section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - swing section

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool

1шт.

6

G33803

RETAINER

- body O-ring

1шт.

7

G34463

SPRING

- spool centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , retainer to spool #47, Ext

1шт.

10

P0033080G

SCREW

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check valve

2шт.

12

G33573

SPRING

- load check valve

2шт.

13

G33084

PLUG

- load check valve

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

15

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation valve

2шт.

16

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation valve, free length

2шт.

17

G34937

PLUG

- anticavitation valve

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

2шт.

G34657

VALVE

ASSEMBLY - relief, order G34862, Includes: Ref. 19 - 31A

2шт.

G34657 subs to G34862. Continue to use this low pressure valve until depleted, then use G109448 valve for pressures below 2300 psi. For presures above 2300 psi, use G109449. Per notes on G34862 direct sub of G34657 in GPS.

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

21

G102844

O-RING

- poppet

1шт.

22

G33090

SPRING

- relief valve

1шт.

23

G34455

PIN

- stop, relief valve spring

1шт.

24

G33091

PISTON

- relief valve

1шт.

25

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

26

G33092

RETAINER

- relief valve

1шт.

27

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

28

G102782

SET SCREW,1/4" - 20 x 1"

- set, piston adjusting, 1/4" - 20 NC x 3/4"

1шт.

28a

G102781

WASHER

- special

1шт.

29

25-144

JAM NUT,Jam, 1/4"-20, G5

- lock, 1/4" - 20 NC

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- valve body, large

1шт.

31

G100959

O-RING,0.744" ID x 0.879" OD

- valve body, small

1шт.

31a

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used

1шт.

G34862

VALVE

KIT - service, relief valve, this kit will service either complete relief valve and includes Ref. 19 - 31A

1шт.

Выбрано товаров: 36
