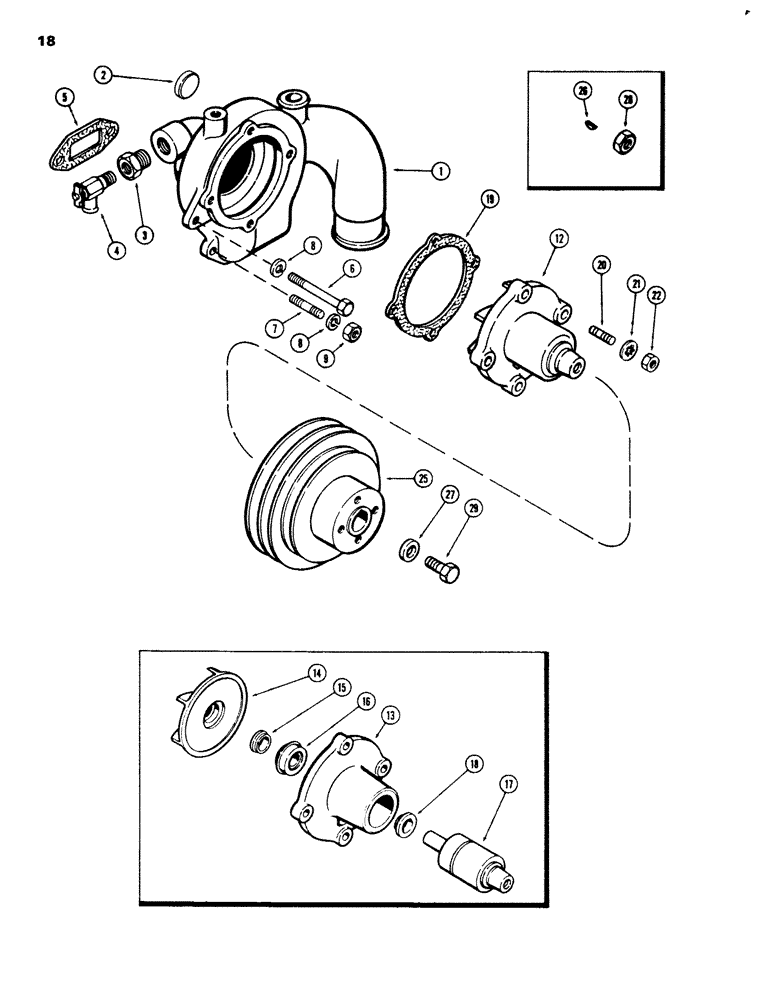

Запчасти Case 680G (018) - WATER PUMP, 336BD DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A138498
HOUSING
BODY ASSEMBLY - water pump, Includes: Ref. 2
1шт.
2
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - 1-3/8" cup type (34.93 mm)
1шт.
3
221-1092
REDUCER,Hex, 3/4" x 3/8" NPT
REDUCER, Hex, 3/4" x 3/8" NPT
1шт.
4
A16764
VALVE
VALVE ASSEMBLY - water shutoff
1шт.
5
A58649
GASKET
GASKET -, Serial Range: body-block
1шт.
6
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, , Body Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
Ref. Mntg. Hdw. should be 13-664 3/8" x 4" as shown in the 780CK parts book #1248 page 25.
1шт.
7
G102128
BOLT
STUD - body, 3/8" NC x 1-7/16"
2шт.
8
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
4шт.
9
25-106
NUT,3/8"-16, G5
NUT - 3/8" NC hex
2шт.
10
A157145
PUMP, WATER
PUMP ASSEMBLY - water (Replaces A155180) Includes: Ref. 13 - 17
1шт.
10
1342818C1R
REMAN-WATER PUMP
Remanufactured Water Pump
1шт.
10
A48335
CORE-WATER PUMP
Return Part Number, Water Pump
1шт.
13
NSS
NOT SOLD SEPARAT
HOUSING - water pump body
1шт.
14
A152126
IMPELLER
IMPELLER - pump (cast iron)
1шт.
15
A34000
SEAL
SEAT - impeller
1шт.
16
A142499
SEAL
SEAL - pump shaft
1шт.
17
A156995
BEARING
BEARING ASSEMBLY - with shaft (Replaces A155177 and A155272) Includes: Ref. 18
1шт.
18
CASA29440
SLINGER
- water
1шт.
19
A58646
GASKET
GASKET -, Serial Range: pump-body
1шт.
20
G102128
BOLT
STUD - pump to body, 3/8" NC x 1-17/32" (Replaces A62234)
4шт.
21
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
22
25-106
NUT,3/8"-16, G5
NUT - 3/8" NC hex
4шт.
25
A58650
PULLEY
PULLEY - fan
1шт.
26
126-116
WOODRUFF KEY,#9, 3/16" x 3/4", HT
WOODRUFF KEY, , Pulley (Used with pump bearing with keyway) #9, 3/16" x 3/4", HT
1шт.
27
A58651
WASHER
WASHER - 1/2 x 1 x 3/32" (12.7 x 25.4 x 2.38 mm)
1шт.
28
131-1106
LOCK NUT,1/2"-20, GB
NUT, LOCK, (Used with pump bearing with keyway) 1/2"-20, GB
1шт.
29
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
BOLT - 1/2 x 1-1/4" NF hex
1шт.
Выбрано товаров: 28
