Запчасти Case 680G (276) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

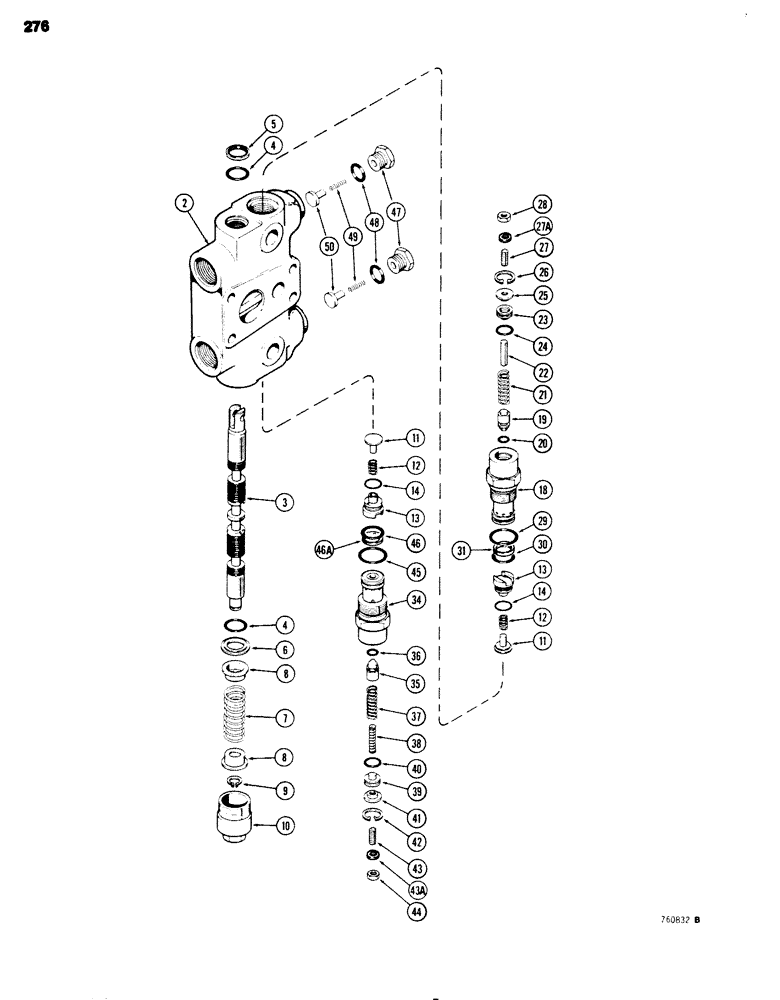

Схема запчастей Case 680G - (276) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G100194

VALVE BLOCK

SECTION ASSEMBLY - boom, not shown assembled, Includes: Ref. 2 - 50

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - boom section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool

1шт.

6

G33803

RETAINER

- body O-ring

1шт.

7

G34463

SPRING

- spool centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

RETAINING - centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, #47, Ext

1шт.

10

G33080

CAP

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check

2шт.

12

G33573

SPRING

- load check

2шт.

13

G33084

PLUG

- load check

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G34052

KIT

VALVE ASSEMBLY - relief, upper, order G34862, Includes: Ref. 18 - 31

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

20

G102844

O-RING

- poppet

1шт.

21

G33090

SPRING

- relief valve

1шт.

22

G33241

PIN

- stop, relief valve

1шт.

23

G33091

PISTON

- relief valve

1шт.

24

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

25

G33092

RETAINER

- relief valve

1шт.

26

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

27

G102782

SET SCREW,1/4" - 20 x 1"

- set, piston adjusting, 1/4" - 20 NC x 3/4"

1шт.

27a

G102781

WASHER

- special

1шт.

28

25-144

JAM NUT,Jam, 1/4"-20, G5

- lock, 1/4" - 20 NC

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- valve body, large

1шт.

30

G100959

O-RING,0.744" ID x 0.879" OD

- valve body, small

1шт.

31

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used (Replaces D35540)

1шт.

G34595

LOCK VALVE

VALVE ASSEMBLY - relief, lower, order G34862, Includes Ref. 34 - 46A

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

36

G102844

O-RING

- poppet

1шт.

37

G33090

SPRING

- relief valve, outer

1шт.

38

G34659

SPRING

- relief valve, inner

1шт.

39

G33091

PISTON

- relief valve

1шт.

40

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

41

G33092

RETAINER

- relief valve

1шт.

42

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

43

G102782

SET SCREW,1/4" - 20 x 1"

- set, piston adjusting, 1/4" - 20 NC x 3/4"

1шт.

43a

G102781

WASHER

- special

1шт.

44

25-144

JAM NUT,Jam, 1/4"-20, G5

- lock, 1/4" - 20 NC

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- valve body, large

1шт.

46

G100959

O-RING,0.744" ID x 0.879" OD

- valve body, small

1шт.

46a

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used (Replaces D35540)

1шт.

47

G34937

PLUG

- anticavitation

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

2шт.

49

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- poppet

2шт.

50

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation

2шт.

G34862

VALVE

KIT - service, relief valve, this kit will service either complete relief valve and includes Ref. 18 - 31 or 34 - 46A

2шт.

Выбрано товаров: 51
