Запчасти Case 680G (270) - BACKHOE CONTROL VALVE (08) - HYDRAULICS

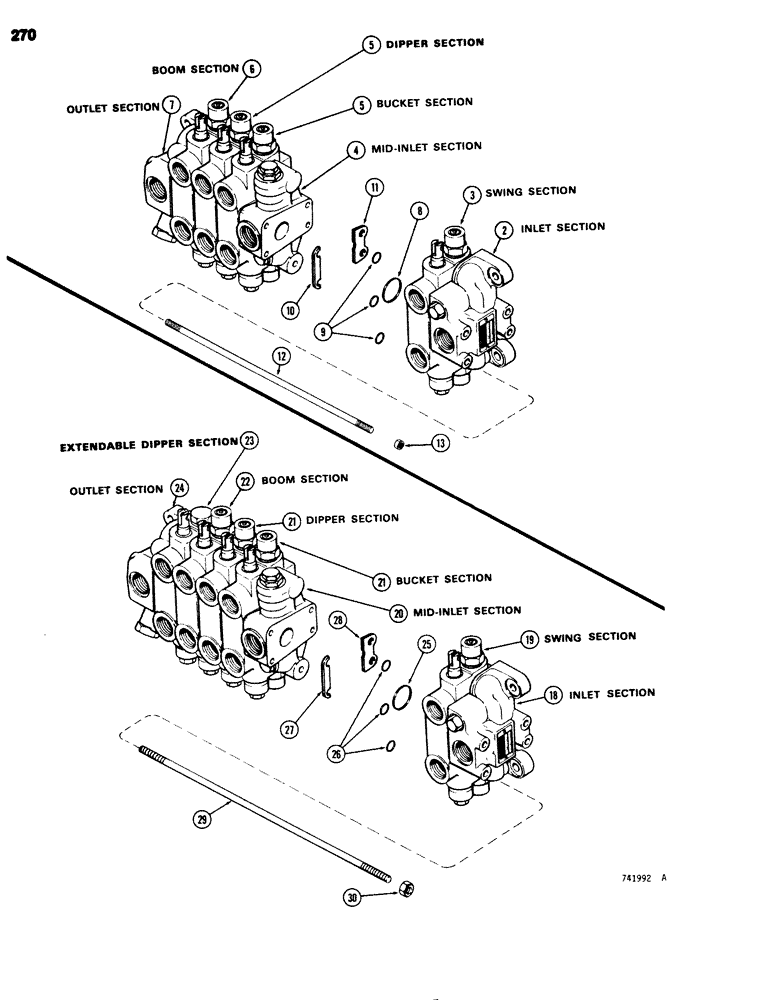

Схема запчастей Case 680G - (270) - BACKHOE CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G100191

LOCK VALVE

VALVE ASSEMBLY - control, 4 section valve, not shown, Includes: Ref. 2 - 13

1шт.

2

G33102

MANIFOLD

INLET SECTION - see Figure 272

1шт.

3

REF

INSTRUCTION

SWING SECTION - see Figure 282

1шт.

4

REF

INSTRUCTION

MID-INLET SECTION - see Figure 280 for proper section

1шт.

5

REF

INSTRUCTION

BUCKET & DIPPER SECTIONS - see Figure 274

2шт.

6

REF

INSTRUCTION

BOOM SECTION - see Figure 276

1шт.

7

G33108

MANIFOLD

OUTLET - see Figure 272

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports

6шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports

18шт.

10

G33964

SHIM,.002" Thk

Section, Top (0.05 mm) .002" Thk

6шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Bottom (.002") 0.051mm Thk

6шт.

12

G34675

TIE-ROD

ROD - tie, valve sections

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

17

G100183

LOCK VALVE

VALVE ASSEMBLY - control, 5 section valve, not shown, used on extendahoe models, Includes: Ref. 18 - 30

1шт.

18

G33102

MANIFOLD

INLET SECTION - see Figure 272

1шт.

19

REF

INSTRUCTION

SWING SECTION - see Figure 282

1шт.

20

REF

INSTRUCTION

MID-INLET SECTION - see Figure 280 for proper section

1шт.

21

REF

INSTRUCTION

BUCKET & DIPPER SECTIONS - see Figure 274

2шт.

22

REF

INSTRUCTION

BOOM SECTION - see Figure 276

1шт.

23

REF

INSTRUCTION

EXTENDABLE DIPPER SECTION - see Figure 284

1шт.

24

G33108

MANIFOLD

OUTLET SECTION - see Figure 272

1шт.

25

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports

7шт.

26

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports

21шт.

27

G33964

SHIM,.002" Thk

Section, Top (0.05 mm) .002" Thk

7шт.

28

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Bottom (.002") 0.051mm Thk

7шт.

29

G33124

BOLT

ROD - tie valve sections

4шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.
