Запчасти Case 680G (266) - LOADER CONTROL VALVE, SECONDARY RELIEF VALVE (08) - HYDRAULICS

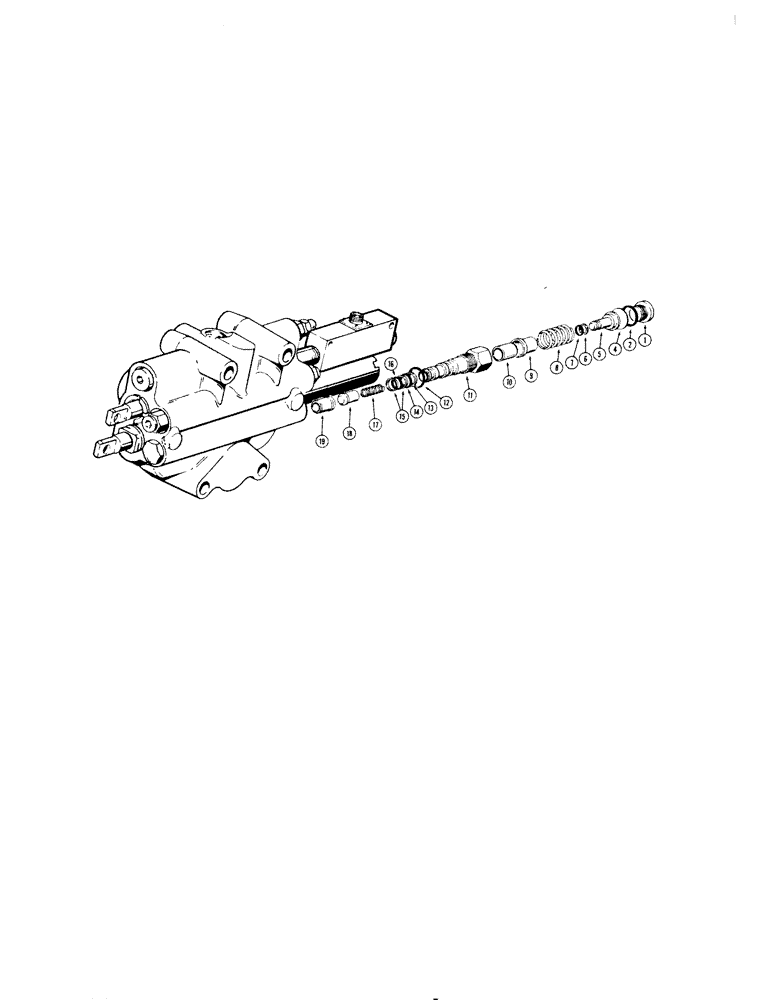

Схема запчастей Case 680G - (266) - LOADER CONTROL VALVE, SECONDARY RELIEF VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

N6795

VALVE

SECONDARY RELIEF VALVE, Includes: Ref. 1 - 19

1шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Secondary relief, Incl Ref 2 Hex Soc, 3/4"-16 ORB

1шт.

4

L36077

SHIM

- spring guide

1шт.

5

D37150

GUIDE

- spring

2шт.

6

D54860

RING

- backup, spring guide, Includes: Ref. 7

1шт.

7

A51274

O-RING,0.145" ID x 0.285" OD

- spring guide

1шт.

8

D37148

SPRING

- plunger

1шт.

9

D37151

PLUNGER

- relief valve

1шт.

10

D37075

SEAT

- plunger

1шт.

11

D37072

CAP

BODY - secondary relief valve, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- valve body, large

1шт.

13

D37071

RING

- backup, center O-ring

1шт.

14

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- relief body, center

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small O-ring

2шт.

16

D26872

O-RING

- relief body, small

1шт.

17

D37067

SPRING

- poppet

1шт.

18

D37068

VALVE POPPET

POPPET - check valve

1шт.

19

D40358

SEAT

- poppet

1шт.

N6794

CHECK VALVE

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

Выбрано товаров: 20
