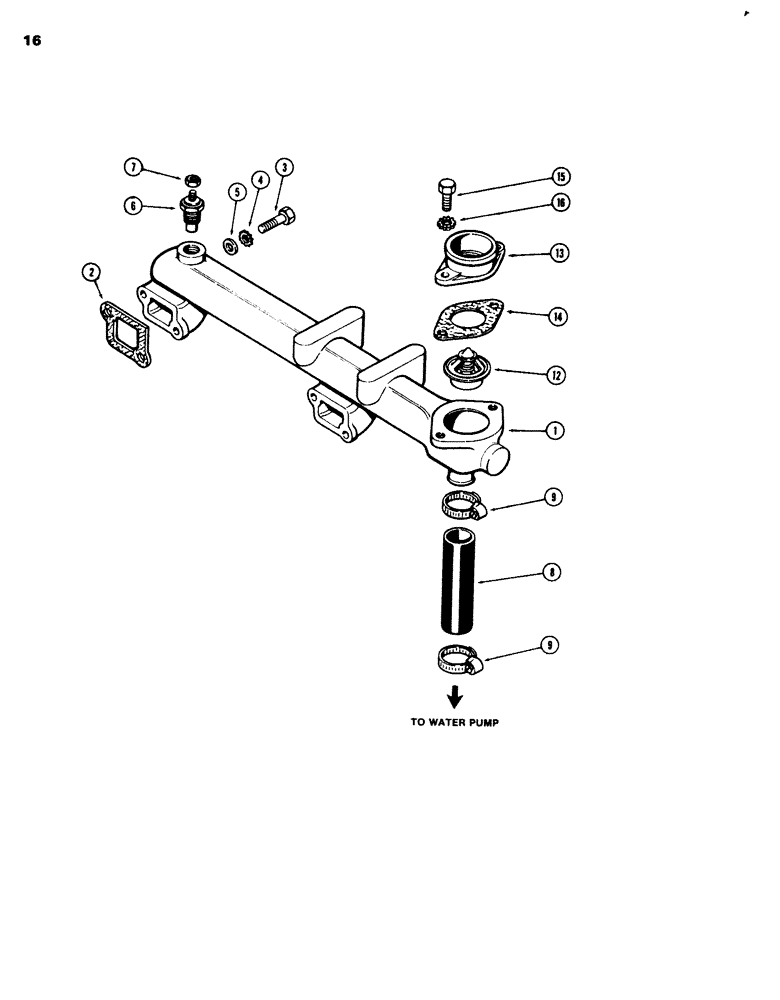

Запчасти Case 680G (016) - WATER MANIFOLD, 336BD DIESEL ENGINE, THERMOSTAT (02) - ENGINE

1

A58735

MANIFOLD

- water

1шт.

2

A58637

MANIFOLD GASKET

- water manifold

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- manifold, 3/8 x 1-1/2" NC hex

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", Manifold

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

5

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.52 x 20.64 x 1.59 mm)

4шт.

6

L56217

UNIT

- sending, engine temperature

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- unit terminal, #10 NF hex, brass

1шт.

8

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- manifold to water pump, 1-1/4" ID x 5" (31.75 ID x 127 mm)

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

2шт.

12

A57641

THERMOSTAT

- 180 degree F (82 degree C)

1шт.

13

A58736

HOUSING

- thermostat

1шт.

14

G46907

GASKET

- housing, thermostat

1шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Housing to manifold, Thermostat Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

16

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, , Thermostat Ext Tooth, 3/8"

1шт.
