Запчасти Case 680G (258) - L78647 LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

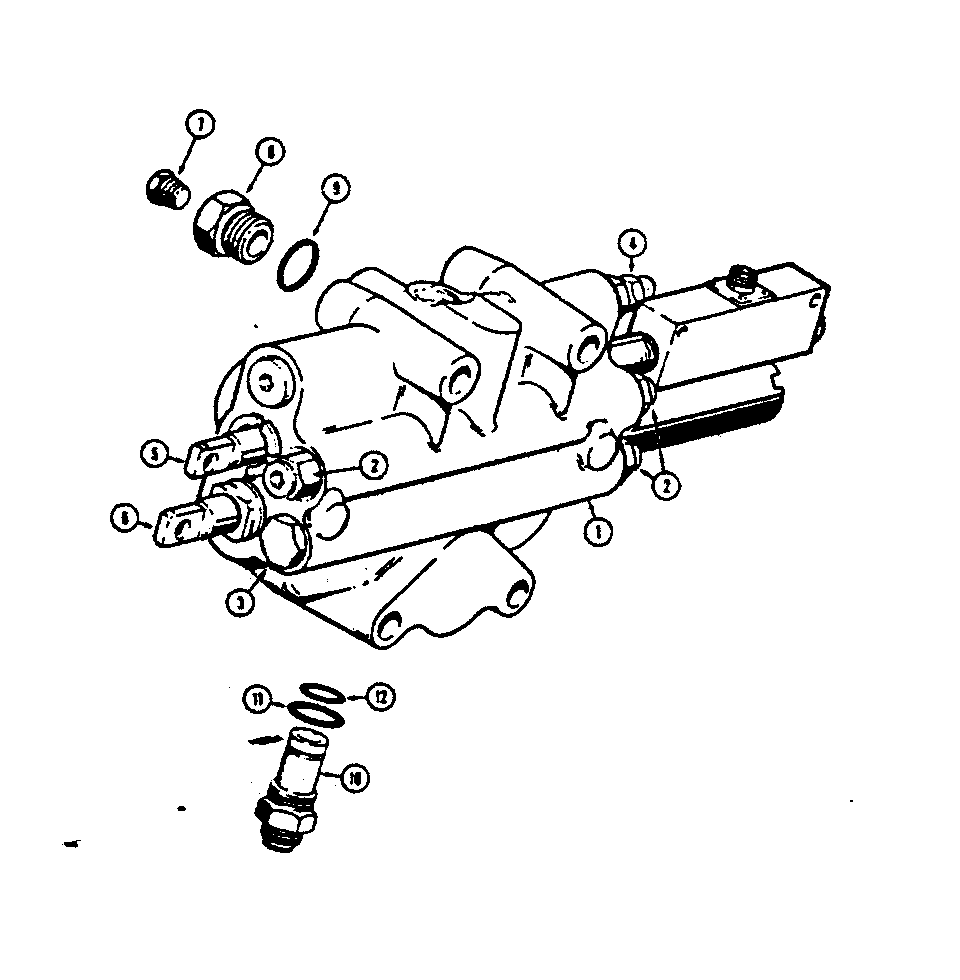

Схема запчастей Case 680G - (258) - L78647 LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

L78647

VALVE

- loader control, 2 spool, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 266

3шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 266

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 264

1шт.

5

L36036

VALVE

SPOOL - bucket tilt, parts list Figure 262

1шт.

6

D71232

SPOOL

- lift, parts list Figure 260

1шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

- pressure check adapter

1шт.

8

D38825

ADAPTER

- pressure check, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

10

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 11, 12

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector, large

1шт.

12

L32680

RING

O-RING - connector, small

1шт.

Выбрано товаров: 12
