Запчасти Case 680G (258[1]) - L78648 LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

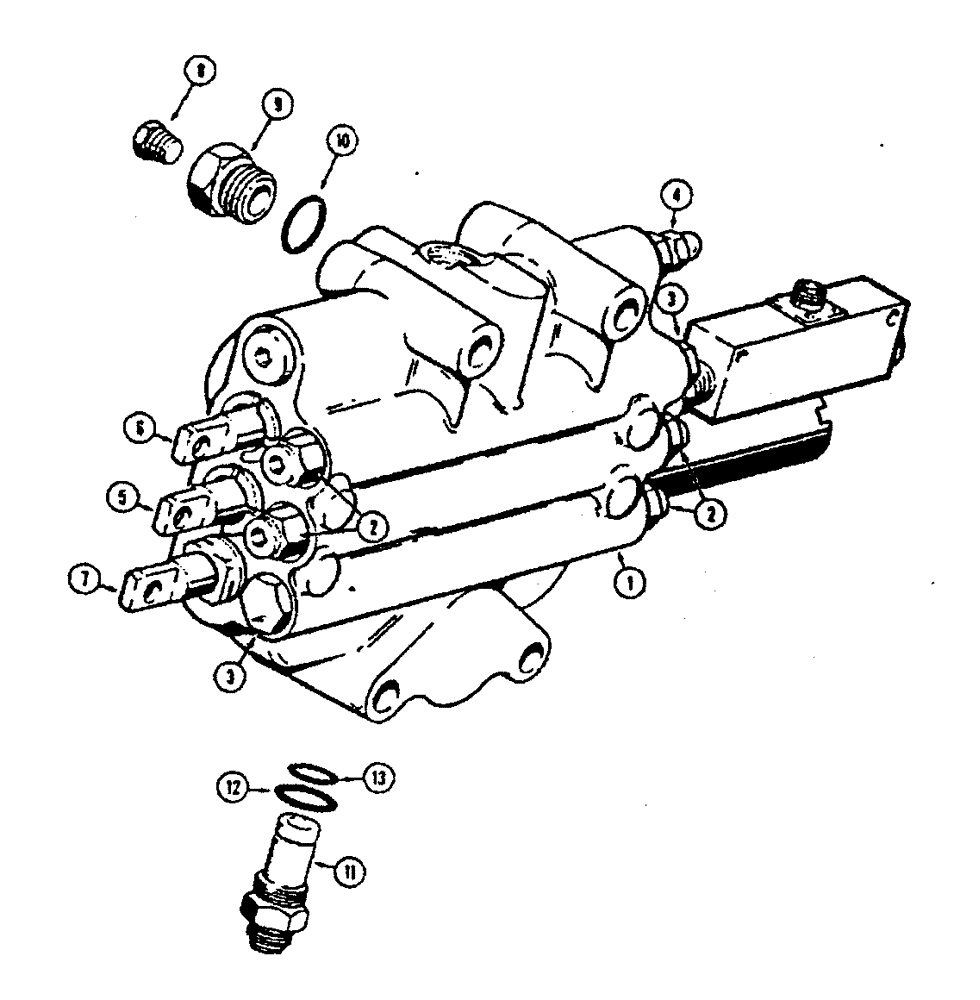

Схема запчастей Case 680G - (258[1]) - L78648 LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

L78648

LOCK VALVE

VALVE - loader control, 3 spool, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 266

4шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 266-1

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 264-1

1шт.

5

L36036

VALVE

SPOOL - bucket tilt, parts list Figure 262

1шт.

6

D52300

SPARE PART SPOOL - clam, parts list Figure 264

1шт.

7

D71232

SPOOL

SPARE PART SPOOL - lift, parts list Figure 260

1шт.

8

221-662

PLUG,Hex Hd, 1/4"-18

PLUG - pressure check adapter

1шт.

9

D38825

ADAPTER

ADAPTER - pressure check, Includes: Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Adapter

1шт.

11

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 12, 13

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Connector, large

1шт.

13

L32680

RING

O-RING - connector, small

1шт.

Выбрано товаров: 13
