Запчасти Case 680G (254) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

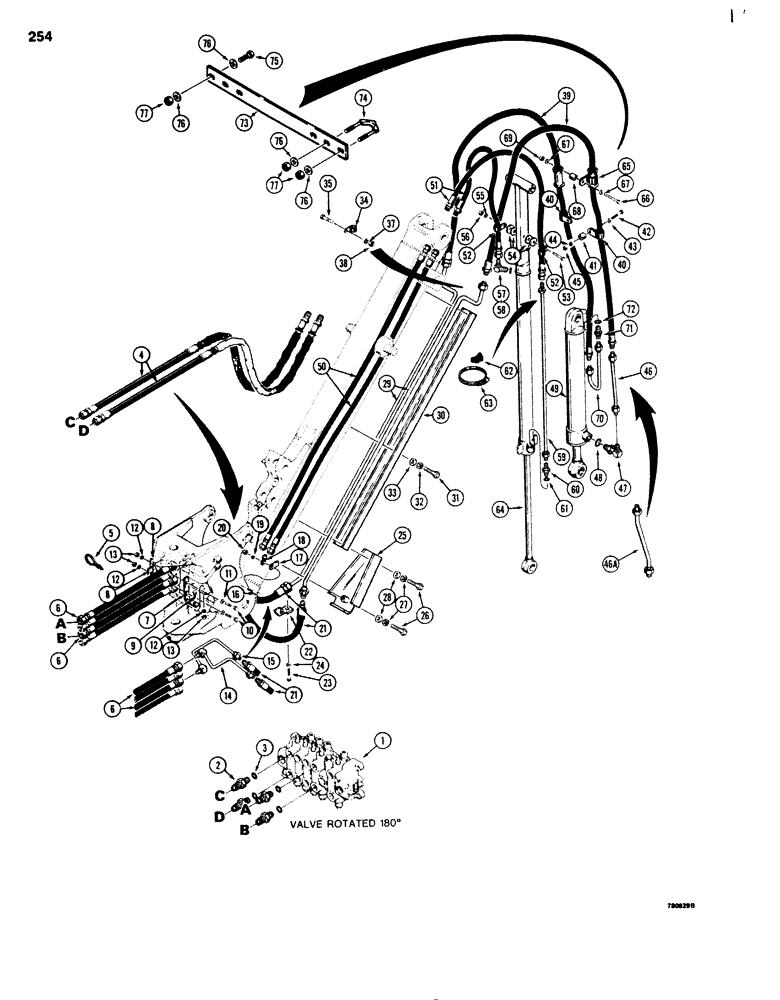

Схема запчастей Case 680G - (254) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - backhoe, parts list Figure 270 thru 284

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 3

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

4

L77825

HOSE

- to extension cylinder from backhoe valve to boom 58" (1473 mm) long

2шт.

If customer has elbowed fittings instead of straight, use P/N L100287 hose.

1шт.

On models without extendable dipper, D77825 hoses are used as bucket cylinder circuit hoses. See Figure 250 for these hoses and hose clamps.

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hose

1шт.

6

L55955

HOSE ASSY.

HOSE - to bucket cylinder, 26-1/2" (673 mm) long

2шт.

7

L100183

BRACKET

- hose support

1шт.

8

D40236

CLAMP

- hose

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

2шт.

11

95-6

WASHER,3/8"

- flat, 3/8

2шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

14

L78383

TUBE,0.75" OD

- to bucket cylinder, right-hand

1шт.

15

L78385

TUBE,0.75" OD

- to bucket cylinder, left-hand

1шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.

17

L78192

SPACER

- tube

2шт.

18

L58147

CLAMP

- tube

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

L78508

HOSE

- to bucket cylinder, 27-1/2" (699 mm) long

2шт.

22

L58147

CLAMP

- hose

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

L78387

BLADE

GUARD - bucket tubes, lower

2шт.

26

164-577

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 2 1/2"

SCREW - button head, hex socket 1/2" - 13 NC x 2-1/2"

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

95-8

WASHER,1/2"

flat 1/2"

2шт.

29

L100840

TUBE,0.75" OD

- to bucket cylinder

2шт.

30

L79141

SHIELD

GUARD - bucket tubes

1шт.

31

164-573

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1 1/2"

SCREW - button head, hex socket, 1/2" - 13 NC x 1/2"

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

95-8

WASHER,1/2"

flat 1/2"

2шт.

34

D31148

CLAMP

- tube

2шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

39

L78165

HOSE

- to bucket cylinders, 98" (2489 mm) long

2шт.

40

D40471

CLAMP

- hose

2шт.

41

L14794

SPACER

-, Serial Range: hose-support

2шт.

42

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

43

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

44

92-6

LOCK WASHER,3/8"

2шт.

45

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

46a

L100128

TUBE,0.79" OD

- bucket cylinder, rod end, models with dual lever controls only, if used

1шт.

47

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 48 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

48

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

49

REF

INSTRUCTION

CYLINDER - bucket, see Figure 310

1шт.

50

L58822

HOSE

- to extension cylinder, 104" (2642 mm) long, has two female ends, used before tractor S/N 9131875

1шт.

On models without extendable dipper, D58822 hoses are used as bucket cylinder circuit hoses. See Figure 250 for hose clamps and hose guards used with these hoses.

1шт.

50

720-4300

HOSE ASSY.

HOSE - to extension cylinder, 110" (2794 mm) long, has one male and one female end, used on tractor S/N 9131875 and after

2шт.

On models without extendable dipper, D58822 hoses are used as bucket cylinder circuit hoses. See Figure 250 for hose clamps and hose guards used with these hoses.

1шт.

51

L76819

HOSE ASSY.,0.50" ID x 24.00", SAE 100R2

HOSE ASSY, , To Extension Cylinder, Used Before Tractor S/N 9131875 0.50" ID x 24.00", SAE 100R2

2шт.

51

L100365

HOSE,0.50" ID x 28.00"

to Extension Cylinder, Used on Tractor S/N 9131875 and After 0.50" ID x 28.00"

2шт.

52

R21385

CLAMP

- hose

2шт.

53

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC - 3-1/4"

2шт.

54

F12215

WASHER

- spacer

4шт.

55

92-6

LOCK WASHER,3/8"

1шт.

56

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

57

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, male, Includes: Ref. 58

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

59

L54652

TUBE

- extension cylinder

1шт.

60

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, Incl. Ref 61 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

61

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

62

D38648

BLOCK

SPACER - tube, rubber

1шт.

63

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adjustable

1шт.

64

REF

INSTRUCTION

CYLINDER - extension, see Figure 312

1шт.

65

D40471

CLAMP

- hose, used before tractor S/N 9135963

2шт.

66

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used before tractor S/N 9135963

2шт.

67

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat, 3/8", used before tractor S/N 9135963

4шт.

68

L78175

HUB

SPACER - hose clamp, used before tractor S/N 9135963

2шт.

69

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

2шт.

70

L58142

TUBE

- bucket cylinder, closed end

1шт.

71

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 72

1шт.

72

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

73

L104254

BAR

- hose support, used on tractor S/N 9135963 and after

1шт.

74

L104253

U-BOLT

CLAMP - U-bolt, used on tractor S/N 9135963 and after

2шт.

75

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on tractor S/N 9135963 and after Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

76

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used on tractor S/N 9135963 and after

8шт.

77

232-4115

LOCK NUT,5/16"-18, GC

NUT - hex, self-locking, 5/16" - 18 NC, used on tractor S/N 9135963 and after

6шт.

Выбрано товаров: 82
