Запчасти Case 680G (250) - BACKHOE DIPPER AND BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

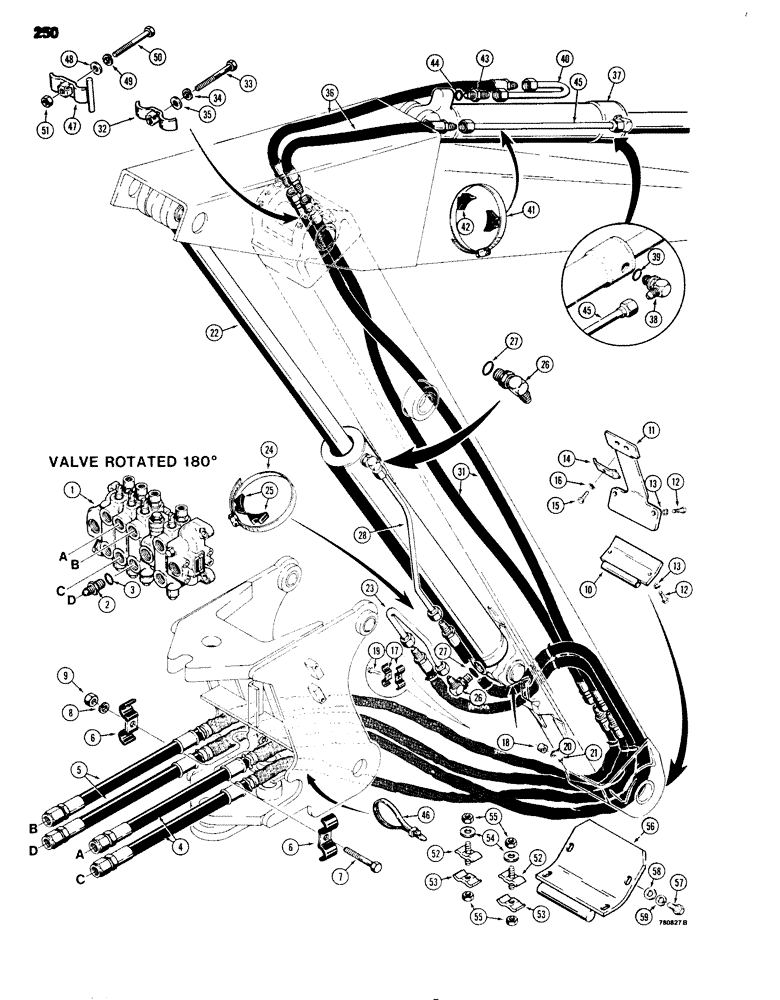

Схема запчастей Case 680G - (250) - BACKHOE DIPPER AND BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 270 thru 284

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 3

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

4

L77824

HOSE

- valve to dipper cylinder, 102" (2597 mm) long used before tractor S/N 9131875

2шт.

4

L100288

HOSE

- valve to dipper cylinder, 105" (2667 mm ) long, used on tractor S/N 9131875 and after

2шт.

This has an elbowed fitting on one end, straight on other end.

1шт.

5

L77825

HOSE

- valve to bucket cylinder, 58" (1473 mm) long, used before tractor S/N 9131875

2шт.

On models with extendable dipper, Ref. 5 and Ref. 31 are used in the dipper extension circuit, and separate hoses are used for the bucket cylinder circuit. See Figure 254 and 256.

1шт.

5

L100287

HOSE

- valve to bucket cylinder, 51" (1295 mm) long, used on tractor S/N 9131875 and after

2шт.

This has an elbowed fitting on one end, straight on other end.

1шт.

On models with extendable dipper, Ref. 5 and Ref. 31 are used in the dipper extension circuit, and separate hoses are used for the bucket cylinder circuit. See Figure 254 and 256.

1шт.

6

L72801

HOSE CLAMP

CLAMP - hose

2шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

10

L79095

GUARD ASSY.

GUARD - hose protecting, used before tractor S/N 9131875

1шт.

11

L78634

CLAMP

- hose guard, used before tractor S/N 9131875

1шт.

12

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex head, 1/2" - 13 NC x 3/4", used before tractor S/N 9131875

4шт.

13

92-8

LOCK WASHER,1/2"

used before tractor S/N 9131875 1/2"

4шт.

14

D40236

CLAMP

- hose to guard, at boom, used before tractor S/N 9131875

1шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", If used

1шт.

16

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

17

L78057

CLAMP

- dipper hose to boom, Replaces D78057

2шт.

18

D36040

BUSHING

SPACER - clamp

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

22

REF

INSTRUCTION

CYLINDER - dipper, see Figure 308

1шт.

23

L54749

TUBE,15, 2.4" L

- dipper cylinder, closed end

1шт.

24

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to dipper cylinder

1шт.

25

D38648

BLOCK

SPACER - tube

2шт.

26

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 27 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

28

L58145

TUBE,0.75" OD x 34.3, 3" L

- dipper cylinder, rod end

1шт.

31

L58822

HOSE

- bucker cylinder, middle, 104" (2642 mm) long, 2 female ends, used before tractor S/N 9131875

2шт.

On models with extendable dipper, Ref. 5 and Ref. 31 are used in the dipper extension circuit, and separate hoses are used for the bucket cylinder circuit. See Figure 254 and 256.

1шт.

31

720-4300

HOSE ASSY.

HOSE - bucket cylinder, middle, 110" (2794 mm) long, 1 male and 1 female end, used on tractor S/N 9131875 and after

1шт.

On models with extendable dipper, Ref. 5 and Ref. 31 are used in the dipper extension circuit, and separate hoses are used for the bucket cylinder circuit. See Figure 254 and 256.

1шт.

32

L79113

CLAMP

AND NUT ASSEMBLY - hose to boom, used before tractor S/N 9131875

1шт.

33

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

If used Hex, 3/8"-16 x 4", G5

1шт.

34

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

35

95-6

WASHER,3/8"

- flat, , if used 3/8"

1шт.

36

L76806

HOSE ASSY.,0.63" ID x 45.00", SAE 100R2

HOSE ASSY, , Boom to Bucket Cylinder, Used Before Tractor S/N 9131875 0.63" ID x 45.00", SAE 100R2

1шт.

Models with dual lever controls Ref. 36 are reserved.

1шт.

36

L101167

TUBE

HOSE - bucket cylinder, 49" (1245 mm) long, used on tractor S/N 9131875 and after

2шт.

Models with dual lever controls Ref. 36 are reserved.

1шт.

37

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see Figure 292

1шт.

38

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, cylinder port, Incl. Ref. 39 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

40

L101013

TUBE,0.75" OD x 15.2, 3" L

- bucket cylinder, closed end

1шт.

41

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder

2шт.

42

D38648

BLOCK

SPACER - tube

2шт.

43

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 44

1шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

45

L77131

TUBE,0.75" OD x 19.92, 1.75" L

- bucket cylinder, rod end

1шт.

46

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hose

1шт.

47

L100383

CLAMP

AND NUT ASSEMBLY - hose to boom, used on tractor S/N 9131875 and after

1шт.

48

95-6

WASHER,3/8"

- flat, , used on tractor S/N 9131875 and after 3/8"

1шт.

49

92-6

LOCK WASHER,3/8"

used on tractor S/N 9131875 and after 3/8"

1шт.

50

113-225

BOLT,Hex, 3/8" - 16 x 5", Gr 5, Full Thd

Used on tractor S/N 9131875 and after Hex, 3/8"-16 x 5", G5, Full Thd

1шт.

51

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, 3/8" - 16 NC, used on tractor S/N 9131875 and after

1шт.

52

L100275

CLAMP

- stud, lower boom, used on tractor S/N 9131875 and after

2шт.

53

L100272

CLAMP

- lower boom, used on tractor S/N 9131875 and after

2шт.

54

D41740

WASHER

- flat, 3/8", used on tractor S/N 9131875 and after

2шт.

55

131-1110

LOCK NUT

NUT - jam, 3/8", used on tractor S/N 9131875 and after

1шт.

56

L100291

GUARD ASSY.

GUARD - hose protecting, used on tractor S/N 9131875 and after

4шт.

57

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used on tractor S/N 9131875 and after Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

58

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

Used on tractor S/N 9131875 and after 1/2"

4шт.

59

95-8

WASHER,1/2"

LOCK, , used on tractor S/N 9131875 and after 1/2"

4шт.

Выбрано товаров: 69
