Запчасти Case 680G (248) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

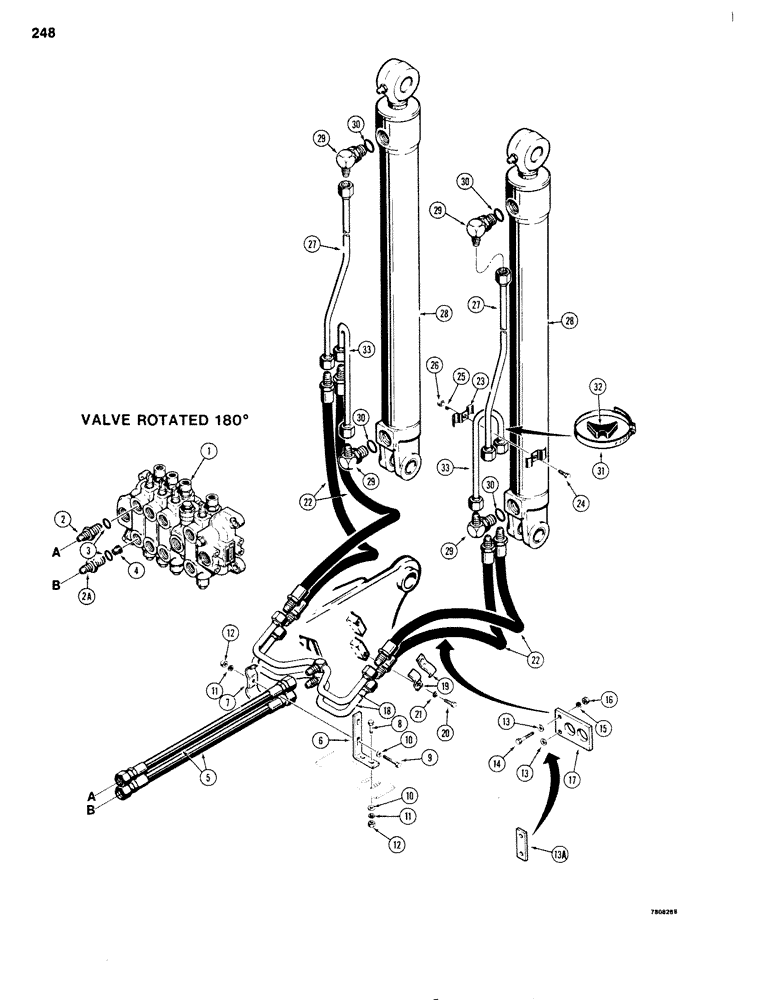

Схема запчастей Case 680G - (248) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 270 thru 284

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight

1шт.

2a

L55143

FITTING

FITTING - male, straight, special, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5077 and l55143 fittings

1шт.

4

L58934

RESTRICTOR

- boom drop

1шт.

5

L55955

HOSE ASSY.

HOSE - valve to boom manifold, 26-1/2" (673 mm) long

2шт.

6

L100183

BRACKET

- hose support

1шт.

7

L78057

CLAMP

- hose

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC 1-1/2"

2шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

1шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

3шт.

13

D41740

WASHER

- hardened

4шт.

13a

L100188

BRACKET

PLATE - hose guide mounting bolts, interchangeable with item 13, if used

2шт.

14

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

17

L100186

GUIDE

- hose

2шт.

18

L100335

MANIFOLD

- boom cylinder

2шт.

19

L58147

CLAMP

- boom cylinder, Serial Range: hose-tower

4шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

T41362

HYDRAULIC HOSE,0.63" ID x 27.50", SAE 100R2

- Manifold to cylinder 0.63" ID x 27.50", SAE 100R2

1шт.

23

R15257

CLAMP

- tube

4шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

27

L58145

TUBE,0.75" OD x 34.3, 3" L

- boom cylinder, rod end

2шт.

28

REF

INSTRUCTION

CYLINDER - boom, see Figure 306

2шт.

29

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 30 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

4шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

31

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tubes to boom cylinder

2шт.

32

D38648

BLOCK

SPACER - tube

2шт.

33

L101013

TUBE,0.75" OD x 15.2, 3" L

- boom cylinder, closed end

2шт.

Выбрано товаров: 35
