Запчасти Case 680G (246) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

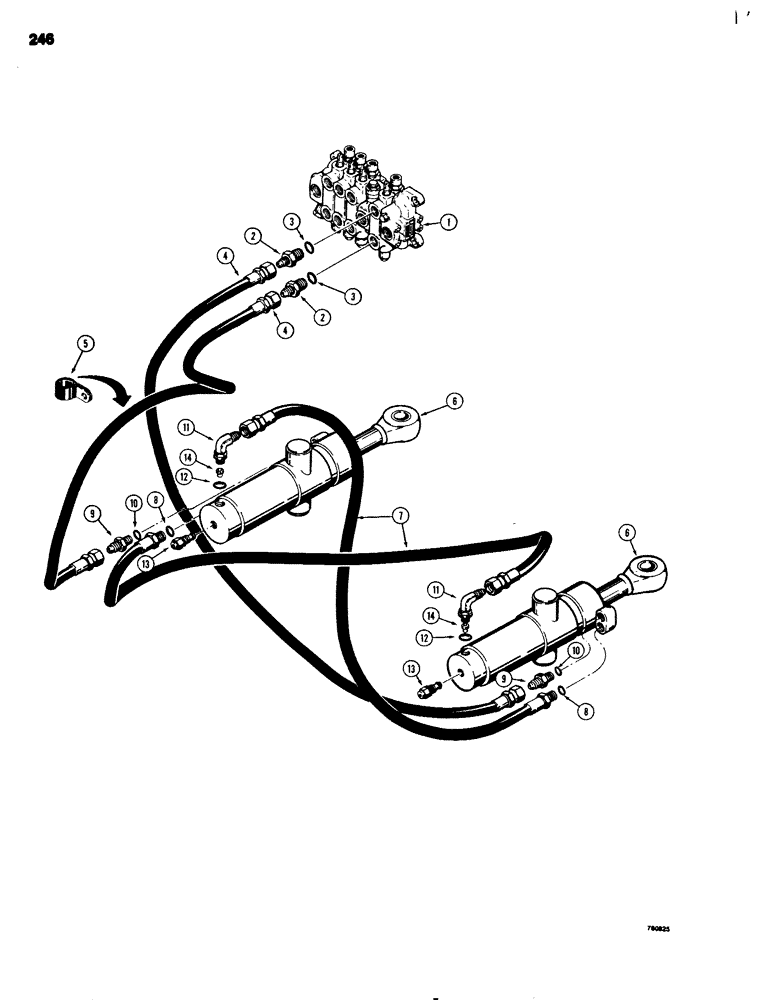

Схема запчастей Case 680G - (246) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 270 thru 284

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

4

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

- Backhoe valve to rod end of swing cylinder 12.70 mm ID x 1473.00 mm, SAE 100R2

2шт.

5

51200320

CLAMP

- swing cylinder hoses

2шт.

6

REF

INSTRUCTION

CYLINDER - swing, see Figure 300

2шт.

7

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- cross-over, 23-1/2" (597 mm) long, Includes: Ref. 8

2шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - male, Incl. Ref 10

2шт.

11

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degree, Includes: Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

13

REF

INSTRUCTION

VALVE - relief, swing cylinder, see Figure 304

2шт.

14

L78722

RESTRICTOR

- check, swing cylinder

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

Выбрано товаров: 14
