(244) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT

Запчасти Case 680G (244) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

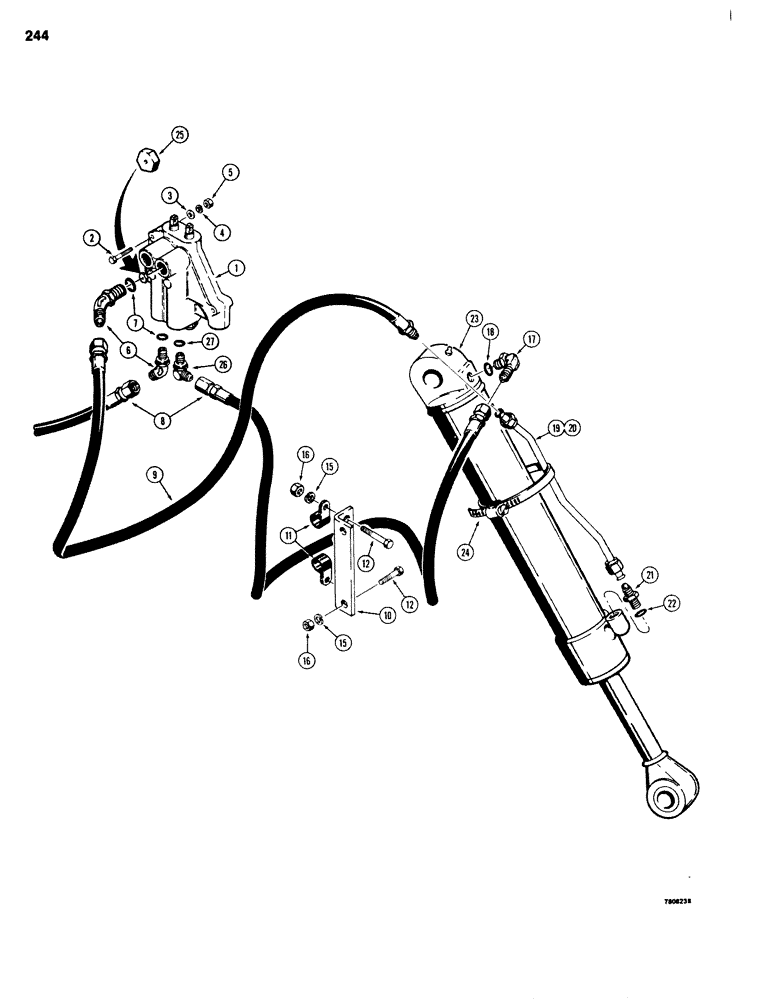

Схема запчастей Case 680G - (244) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D62348

VALVE

- stabilizer control, parts list Figure 268

1шт.

2

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Valve mounting Hex, 5/16"-18 x 2 3/4", G5

2шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

6

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 45 degree, adjustable, Includes: Ref. 7

3шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

8

L76752

TUBE

HOSE - stabilizer valve to stabilizer cylinder, closed end, 65" (1651 mm) long

2шт.

9

L71092

HOSE ASSY.

HOSE - stabilizer valve to stabilizer cylinder, rod end, 58" (1473 mm) long

2шт.

10

L55308

BRACKET

- hose clamp

2шт.

11

NLS

NO LONGER SERVICED

- hose

4шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

15

92-8

LOCK WASHER,1/2"

8шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

19

L103790

TUBE,0.625" OD x 14.6, 4.28" L

- left-hand stabilizer cylinder

1шт.

20

L103792

TUBE,0.625" OD

- R.H. stabilizer cylinder

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

23

REF

INSTRUCTION

CYLINDER - stabilizer, parts list Figure 298

1шт.

24

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.

25

D61933

RESTRICTOR

- upper valve port

2шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.
