Запчасти Case 680G (242) - LOADER HYDRAULICS, CONTROL VALVE TO CLAM CYLINDERS (08) - HYDRAULICS

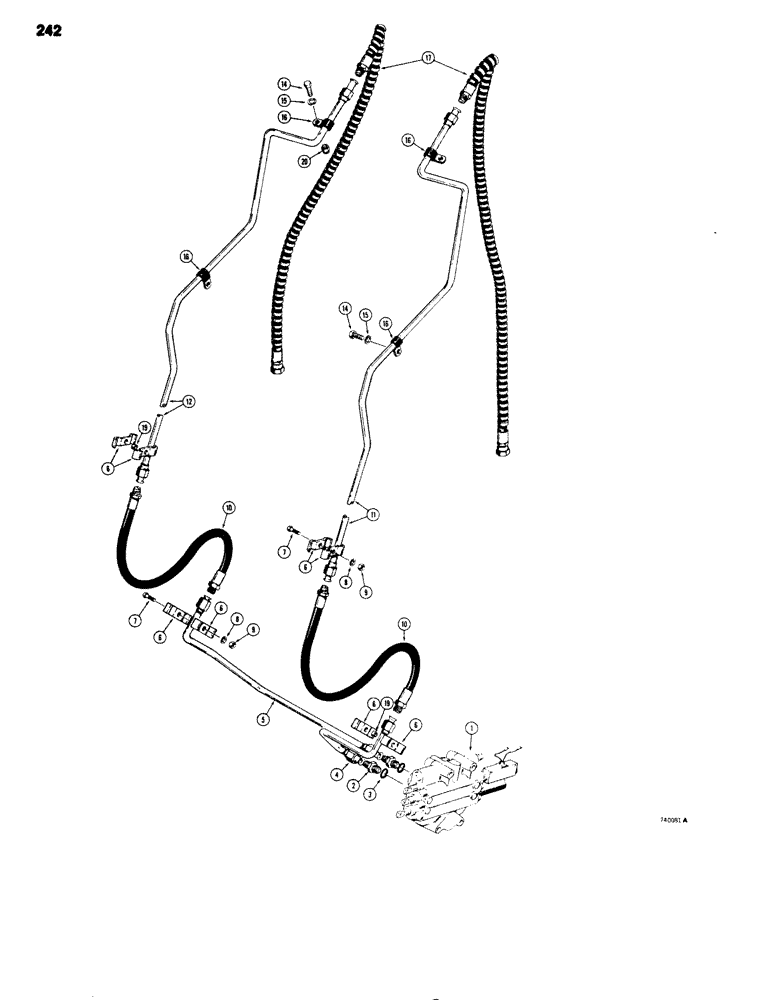

Схема запчастей Case 680G - (242) - LOADER HYDRAULICS, CONTROL VALVE TO CLAM CYLINDERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - loader control, 3 spool, see Figure 258

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Includes: Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

L58406

TUBE,0.625" OD

- valve to right-hand lift arm tube, at valve

1шт.

5

L58408

TUBE,0.625" OD

- valve to left-hand lift arm tube, at valve

1шт.

6

A12032

CLAMP

- tube, if used

8шт.

6

L100272

CLAMP

- tube, if used

8шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

7

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2", If used

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

10

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - valve to lift arm tubes, 37" (940 mm) long

2шт.

11

L101432

TUBE,0.625" OD

- valve to clam cylinder, at right-hand lift arm

1шт.

12

L101430

TUBE,0.625" OD

- valve to clam cylinder, at left-hand lift arm

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

16

49771

CLAMP

- tube to tapped block

4шт.

17

L50629

HOSE ASSY.

HOSE - lift arm tubes to clam cylinders, 50" (1270 mm) long

2шт.

This part does not have a spring guard over the hose as shown on the illustration.

1шт.

18

218-776

PLUG,7/8"-14, 37 Degree

- hex head, 5/8" used when bucket is removed to plug clam cylinder hoses, not shown

2шт.

19

D33552

BUSHING

SPACER - tube, if used

4шт.

This would fit inside Ref. 6 when used.

1шт.

20

131-94

LOCK NUT,3/8"-16, GB

LOCKNUT - 3/8" - 16 NC, if used

2шт.
