Запчасти Case 680G (240) - LOADER BUCKET TILT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

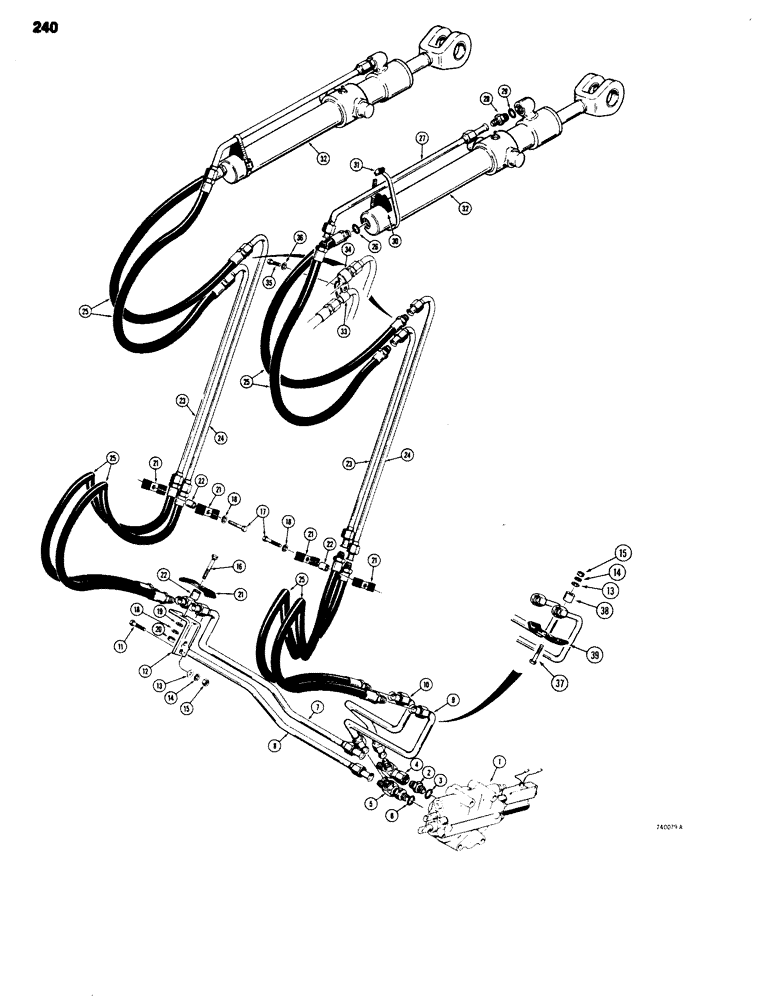

Схема запчастей Case 680G - (240) - LOADER BUCKET TILT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VAVLE - loader control, see Figure 258 for proper valve

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING - swivel type

1шт.

5

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

FITTING - adjustable, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

7

L57609

TUBE,0.625" OD

- tee to left-hand bucket cylinder, closed end

1шт.

8

L57607

TUBE,0.625" OD

- tee to left-hand bucket cylinder, rod end

1шт.

9

L57603

TUBE - tee to right-hand bucket cylinder, rod end 0.625" OD

1шт.

10

L57605

TUBE,0.625" OD x 10.70, 4.10" L

- tee to right-hand bucket cylinder, closed end

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

12

L57616

BRACKET - hose support, if used

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

2-4шт.

14

92-6

LOCK WASHER,3/8"

2-4шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2-4шт.

16

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2", if used

2шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 nc

2шт.

21

D40236

CLAMP

- tube and hose, if used

6шт.

22

D33554

BUSHING

SPACER - tube, if used

6шт.

23

L57611

TUBE,0.625" OD x 25.65, 4.35" L

- valve to bucket cylinder, upper, at lift arm

2шт.

24

L57613

TUBE

- valve to bucket cylinder, lower, at lift arm

2шт.

25

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - bucket cylinder, 37" (940 mm) long

8шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

2шт.

27

L73331

TUBE,0.625" OD x 30.7, 0.9" L

- to bucket cylinder, rod end

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

30

D38648

BLOCK

SPACER - tube

2шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

32

REF

INSTRUCTION

CYLINDER - hydraulic, right-hand and left-hand loader bucket, see Figure 294

1шт.

33

D34174

CLAMP,5/8", 1/2" Bolt

- tube retaining

2шт.

34

A27256

CLAMP

- hose retaining

2шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", If used

2шт.

38

D33552

BUSHING

SPACER - tube, if used

2шт.

39

L102643

CLAMP

- tube to chassis, if used

2шт.

Выбрано товаров: 39
