Запчасти Case 680G (238) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

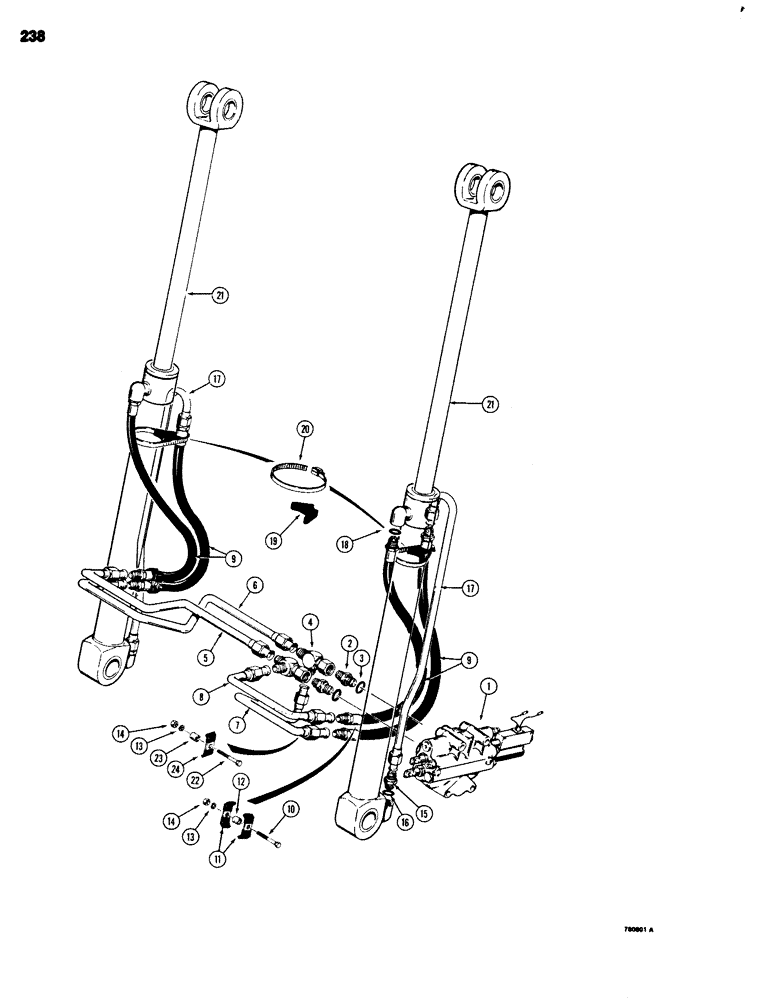

Схема запчастей Case 680G - (238) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - hydraulic, loader control, see Figure 258 for proper valve

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Includes: Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING - swivel type

2шт.

5

L57596

TUBE,0.625" OD

- tee to left-hand lift cylinder, rod end

1шт.

6

L57598

TUBE,0.625" OD

- tee to left-hand lift cylinder, closed end

1шт.

7

L57592

TUBE,0.625" OD

- tee to right-hand lift cylinder, closed end

1шт.

8

L57594

TUBE,0.625" OD

- tee to right-hand lift cylinder, rod end

1шт.

9

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - valve to lift cylinders, 37" (940 mm) long

4шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4:, if used

2шт.

11

D40236

CLAMP

- tube to chassis, if used

4шт.

12

D33554

BUSHING

SPACER - tube, if used

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male, Includes: Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

17

L57601

TUBE ASSY.,0.625" OD

TUBE - lift cylinder, closed end

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- rod end to lift cylinder

2шт.

19

D38648

BLOCK

SPACER - tube

2шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

2шт.

21

REF

INSTRUCTION

CYLINDER - hydraulic, loader lift, parts list Figure 292

2шт.

22

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3, if used

2шт.

23

D33552

BUSHING

SPACER - tube, if used

2шт.

24

L102643

CLAMP

- tube to chassis, if used

2шт.
