Запчасти Case 680G (236) - EQUIPMENT HYDRAULIC CIRCUIT, RETURN LINES (08) - HYDRAULICS

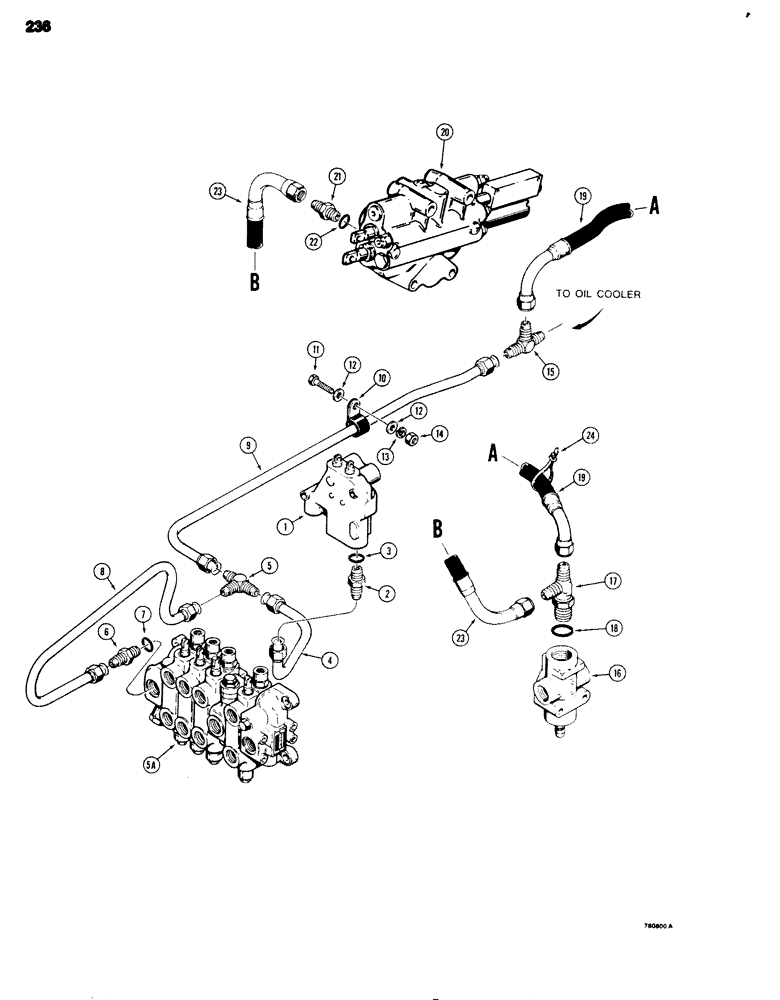

Схема запчастей Case 680G - (236) - EQUIPMENT HYDRAULIC CIRCUIT, RETURN LINES (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D62348

VALVE

- stabilizer control, parts list Figure 268

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male, Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

L77532

TUBE,0.75" OD

- return, from stabilizer valve

1шт.

5

218-1576

TEE,37 Degree, 1 5/8"-12 x 1 1/16"-12, Run

FITTING - valve return, three way

1шт.

5a

REF

INSTRUCTION

VALVE - backhoe control, see Figure 270

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

L77541

TUBE,1" OD

- return, from backhoe valve

1шт.

9

L77082

TUBE,1.25" OD x 35.97, 6.14" L

- return, from backhoe and stabilizer valves

1шт.

10

R17416

CLAMP

- tube

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Rear clamp only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

12

95-8

WASHER,1/2"

flat 1/2"

2шт.

13

92-8

LOCK WASHER,1/2"

1шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

15

218-1577

TEE,37 Degree, 1 5/8"-12 x 1 1/16"-12, Br

FITTING - tee

1шт.

16

REF

INSTRUCTION

VALVE - relief, parts list Figure 388

1шт.

17

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - three way releif valve outlet, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

19

L100052

HOSE

- return from relief valve, special

1шт.

20

REF

INSTRUCTION

VALVE - loader control, see Figure 258 for proper valve

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

23

L100051

HOSE ASSY.

HOSE - return, loader valve, special

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - relief valve hose to steering hose

1шт.

Выбрано товаров: 25
