Запчасти Case 680G (234) - EQUIPMENT HYDRAULIC CIRCUIT, TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

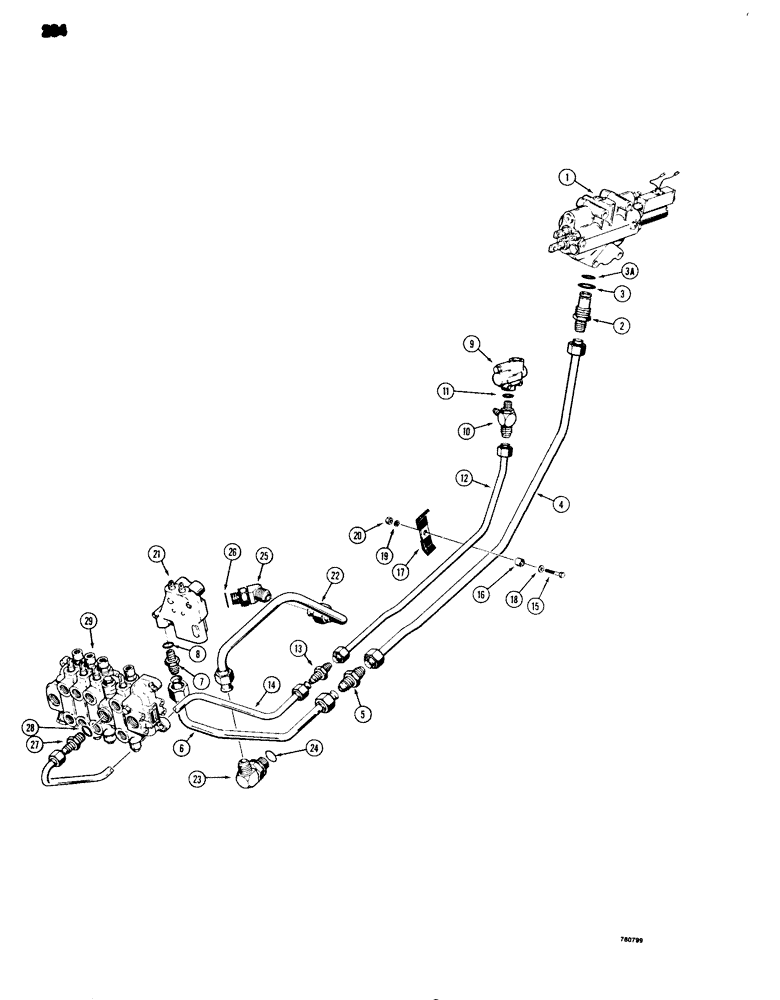

Схема запчастей Case 680G - (234) - EQUIPMENT HYDRAULIC CIRCUIT, TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - loader control, see Figure 258 for proper valve, Includes: Ref. 2 - 3A

1шт.

2

L30446

FITTING

- straight, special

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

3a

L32680

RING

O-RING - small

1шт.

4

L76765

TUBE,1" OD x 44.59, 17.54" L

- loader valve to stabilizer valve

1шт.

5

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING - tube

1шт.

6

L70096

TUBE

- loader valve to stabilizer valve

1шт.

7

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

9

L54770

LOCK VALVE

VALVE - flow divider, parts list Figure 286

1шт.

See Figure 128 for the backhoe and steering hydraulic circuit from the pump tp flow divider valve.

1шт.

10

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

FITTING - adjustable tee, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

12

L55812

TUBE,0.75" OD

- flow divider valve to backhoe control valve, front

1шт.

13

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FITTING - tube

1шт.

14

L70094

TUBE,0.75" OD

- flow divider valve to backhoe control valve, rear

1шт.

15

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

1шт.

16

D33554

BUSHING

SPACER - tube clamp

1шт.

17

D40236

CLAMP

- tube

1шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

D62348

VALVE

- stabilizer control, parts list Figure 268

1шт.

22

L79454

TUBE,1" OD

- stabilizer valve

1шт.

23

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

male, if used, Incl. Ref. 24 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

25

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, if used, Includes: Ref. 26 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

27

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 28

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

29

REF

INSTRUCTION

VALVE - backhoe control, see Figure 270

1шт.
