Запчасти Case 680G (232) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO LOADER VALVE (08) - HYDRAULICS

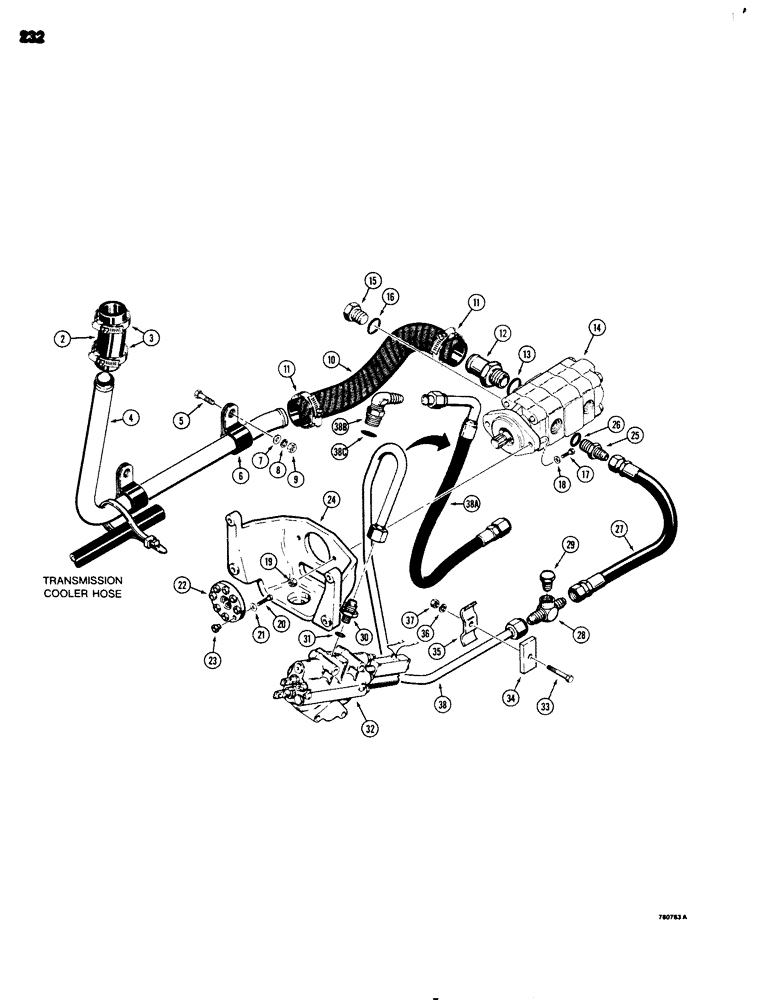

Схема запчастей Case 680G - (232) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO LOADER VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TANK - hydraulic oil reservoir, not shown, see Figure 362

1шт.

2

L55950

LARGE HOSE

HOSE - suction, at tank, 5" (127 mm) long

1шт.

3

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

4

L55826

TUBE,2" OD

- suction, rear

1шт.

Tie strap shown on illustration around Ref. 4 suction hose and transmission cooler hose is Ref. 39 tie strap L18331.

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

R14097

CLAMP

-, Serial Range: tube-chassis

2шт.

7

95-8

WASHER,1/2"

flat 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- hex 1/2" - 13 NC

2шт.

10

L105300

HOSE,50.8mm ID x 660.4mm L

- suction, at pump, 26" (660 mm) long

1шт.

This hose is 2" longer than the L55953 hose, which it replaced. Refer to CE Service Bulletin 5-81.

1шт.

11

214-351

CLAMP,#40, 2.12"-2.44", T-Bolt

- hose

2шт.

12

L57792

FITTING

- adapter, at pump inlet, Includes: Ref.13

1шт.

13

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- fitting

1шт.

14

L55247

PUMP

- hydraulic, parts list Figure 290

1шт.

15

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- pump, suction side, Includes: Ref. 16

1шт.

16

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

17

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

20

113-2611

PREV TORQUE BOLT,Locking, 7/16"-14 x 1 1/2", G5

BOLT - special, coupling mounting

8шт.

21

L79092

WASHER

- flat, 7/16"

8шт.

L16692

COUPLING, BREAK AWAY

COUPLING - pump to crankshaft pulley, Includes: Ref. 22, 23

1шт.

If failure of this part occurs at low hours of use, check the alignment of the pump mount. Refer to CE Service Bulletin 10-81. Also refer to CE Service Bulletin 112-82 for an alternate (severe duty) pump drive coupling, P/N L110953, which must be ordered together with a new front engine pulley A166097.

1шт.

22

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

23

G36905

BLOCK

BUSHING - hub

8шт.

24

REF

INSTRUCTION

BRACKET - pump and engine mounting, see Figure 10

1шт.

25

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

27

L55955

HOSE ASSY.

HOSE - pump to loader valve, 26-1/2" (673 mm) long

1шт.

28

218-583

TEE,1 5/16"-12 x 1 1/16"-12, 37 Degree, 3/4"-14, NPTF Fem Br

FITTING - pressure check, loader valve

1шт.

29

221-655

PLUG,Hex Hd, 3/4"-14

- pressure check, 3/4" NPT

1шт.

30

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

32

REF

INSTRUCTION

VALVE - hydraulic, loader control, see Figure 258 for proper valve

1шт.

33

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

1шт.

34

D37116

BLOCK - spacer, tube mounting

1шт.

35

L78057

CLAMP

- tube

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

38

L70340

TUBE,1" OD

- pressure, to 2 spool loader valve

1шт.

38

L59816

TUBE

- pressure, to 3 spool loader valve

1шт.

38a

L71568

HOSE ASSY.

HOSE - pressure, at loader valve, used in place of tube on some models

1шт.

L59126

CLAMP - used with L71568 hose only, not shown

1шт.

38b

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

at valve,Used with hose, Includes: Ref. 38C 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

38c

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

39

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP

1шт.

Tie strap shown on illustration around Ref. 4 suction hose and transmission cooler hose is Ref. 39 tie strap L18331.

1шт.

Выбрано товаров: 49
