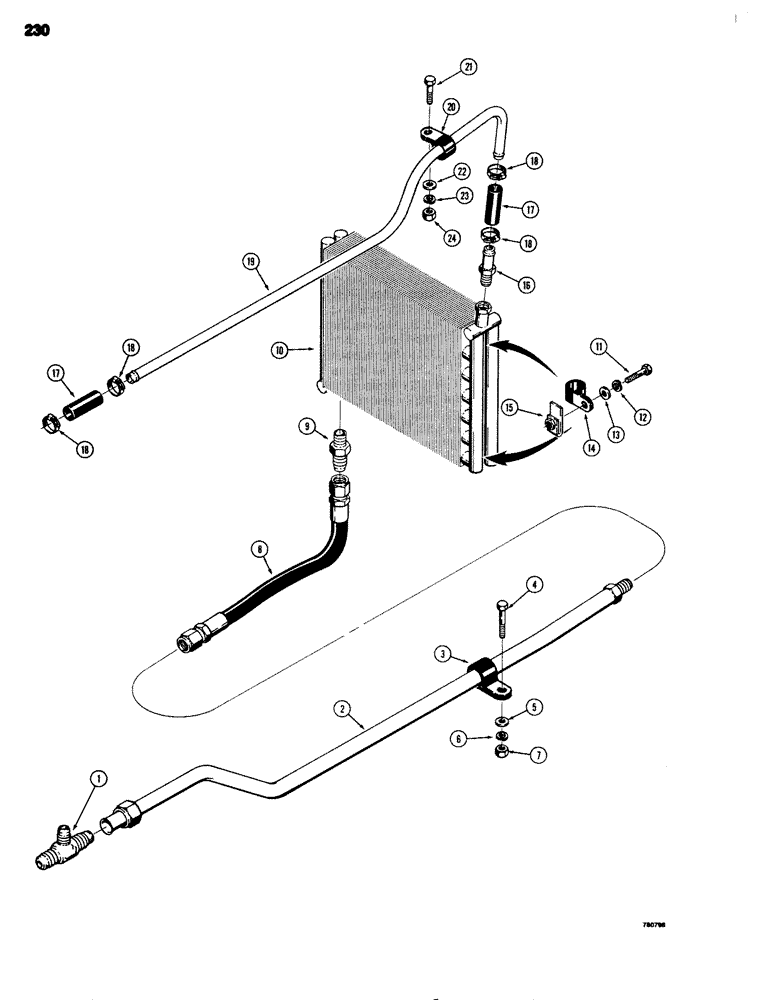

Запчасти Case 680G (230) - EQUIPMENT HYDRAULIC CIRCUIT, OIL COOLER LINE (08) - HYDRAULICS

1

218-1577

TEE,37 Degree, 1 5/8"-12 x 1 1/16"-12, Br

FITTING - three way, return lines, for loader, backhoe and relief valve return lines, see Figure 236

1шт.

2

L101004

TUBE,1.25" OD

- to cooler

1шт.

3

R17416

CLAMP

- tube

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

5

95-8

WASHER,1/2"

- flat, 3/8"

1шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

8

L100107

HOSE - to cooler, 19" (483 mm) long

1шт.

9

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

FITTING - adapter, straight

1шт.

10

L100172

COOLER

- hydraulic oil

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

14

L100875

CLAMP

- cooler mounting

4шт.

15

131-641

NUT

- "U" type, 5/16" - 28 NC

4шт.

16

217-156

FITTING,1" Hose Barb x 1" Male NPTF

- hose stem

1шт.

17

R12351

LARGE HOSE

HOSE - 1" (25 mm) I.D. x 4" (102 mm) long

2шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

19

L79904

TUBE,1" OD x 41.8, 7.53" L

- from cooler

1шт.

20

49840

CLAMP

- tube

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

22

95-4

WASHER,1/4"

- flat, 3/4"

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

25-104

NUT,1/4"-20, G5

1шт.
