Запчасти Case 680G (228) - ALCOHOL EVAPORATOR (08) - HYDRAULICS

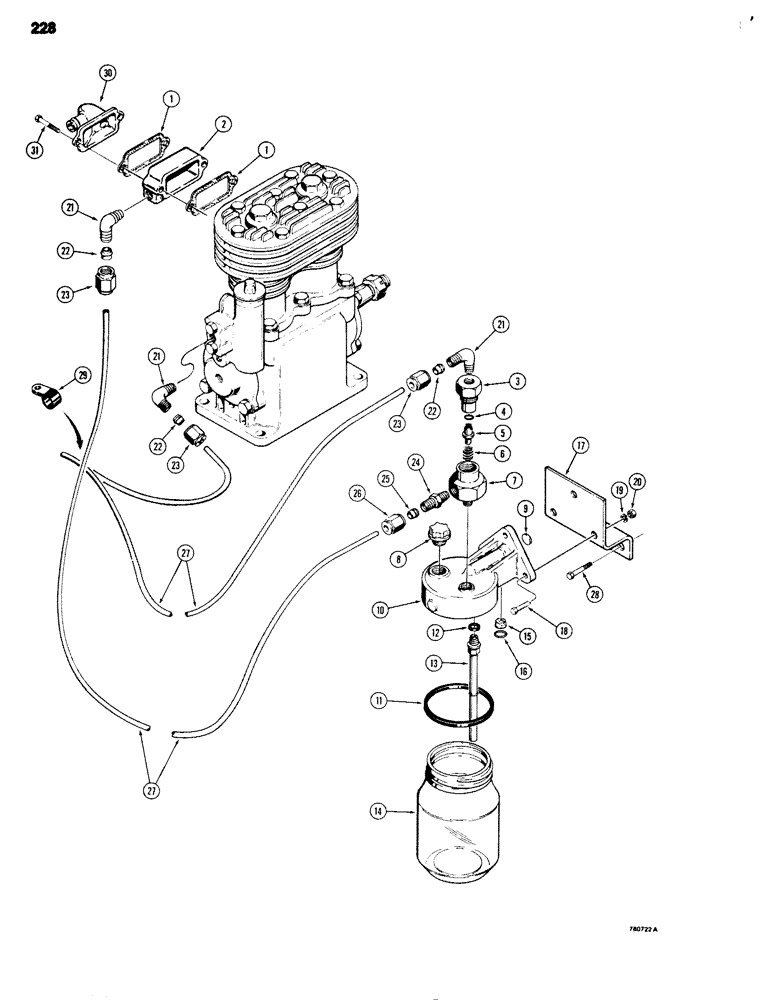

Схема запчастей Case 680G - (228) - ALCOHOL EVAPORATOR (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

L73277

KIT

EVAPORATOR ASSEMBLY - alcohol, Includes: L46372 and Ref. 1 - 29

1шт.

L46372

KIT

- alcohol evaporator, Includes: Ref. 1 - 16

1шт.

1

L31457

GASKET

- adapter

2шт.

2

L32930

ADAPTER

- compressor

1шт.

L33157

VALVE

ASSEMBLY - check, at evaporator, Includes: Ref. 3 - 7

1шт.

3

L33162

NUT

- cap

1шт.

4

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - valve

1шт.

5

L33160

VALVE

- check

1шт.

6

L33159

SPRING

- valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

L33145

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 8 - 16

1шт.

8

L33151

PLUG

- filler

1шт.

9

41-102

PLUG,Exp, 1/2"

- expansion, steel, 1/2"

1шт.

10

L33146

BODY

- alcohol evaporator

1шт.

11

L33153

SEALING RING

-, Serial Range: housing-jar

1шт.

12

L33156

RING

- sealing, evaporator tube

1шт.

13

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- evaporator

1шт.

14

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

15

L33150

FILTER

- air intake

1шт.

16

A58439

RETAINER

RING - retaining, filter

1шт.

17

L100475

BRACKET

- alcohol evaporator mounting

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

25-104

NUT,1/4"-20, G5

3шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING ASSEMBLY - 90 degree, Includes: Ref. 21 - 23

3шт.

21

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

22

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

23

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - straight, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

25

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

26

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

27

L52494

TUBE,0.25" OD x 33" L

- jar to compressor, 33" (939 mm) long

2шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

49838

CLAMP

- tube

1шт.

30

L32921

ELBOW UNION

FITTING - inlet

1шт.

31

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 1/4" - 20 NC x 1-3/4"

2шт.

Выбрано товаров: 37
