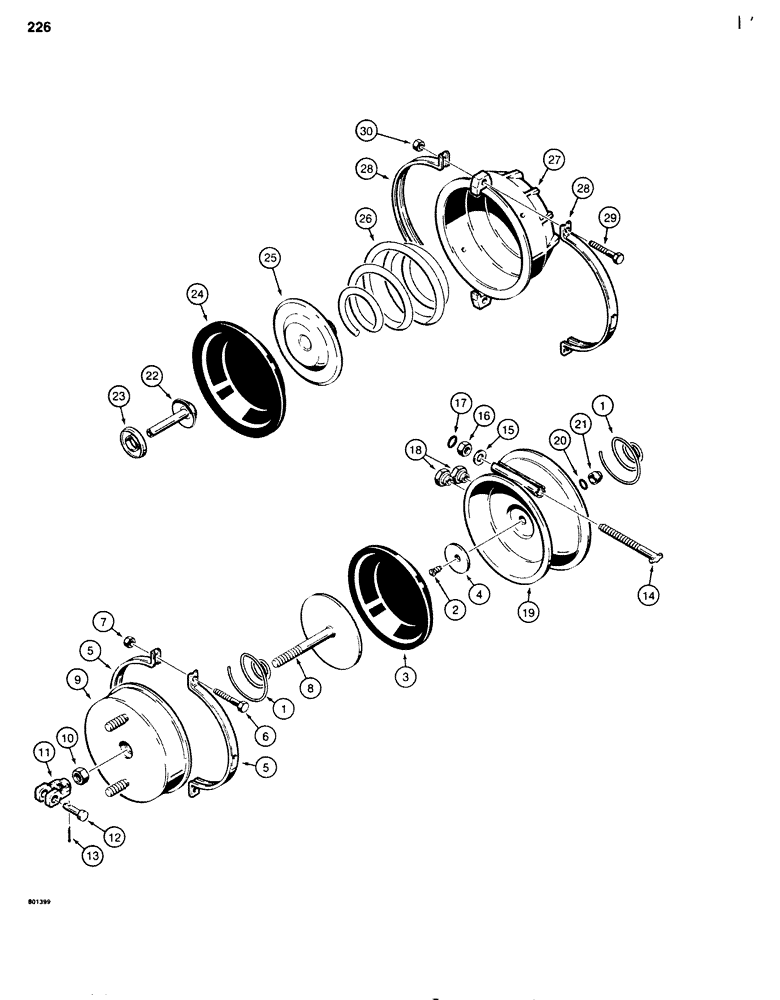

Запчасти Case 680G (226) - BRAKE SYSTEM, L105169 BRAKE CHAMBER (07) - BRAKES

L105169

ACTUATOR

CHAMBER ASSEMBLY - brake, includes 321-6328 warning decal, used on tractor S/N 9136185, and after, see Figure 224, Includes: body and Ref. 1 - 30

1шт.

If a new actuator P/N L105169 is ordered, it is shipped with a shipping clip installed. You must apply 90 psi and rotate clip 90 degrees counterclockwise, pull straight out and install rubber plug.

1шт.

NSS

NOT SOLD SEPARAT

BODY - chamber assembly

1шт.

1

N7129

VALVE SPRING

SPRING - push rod return

2шт.

2

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- machine, 1/2" - 20 NC x 1/2"

2шт.

3

L35610

DIAPHRAGM

- brake chamber

1шт.

4

N7130

PLATE ASSY.

PLATE - lower adapter

1шт.

L35605

CLAMP

ASSEMBLY - brake chamber, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

CLAMP - brake chamber

2шт.

6

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

2шт.

7

25-176

NUT,3/8"-24, G5, Hvy

- hex, heavy, 3/8" - 24 NF

2шт.

8

L35626

ROD

- pressure, brake chamber

1шт.

9

N7131

COVER ASSY

COVER - chamber

1шт.

10

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, self-locking, 5/8" - 18 NF

1шт.

S84585

YOKE

ASSEMBLY - brake chamber, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

YOKE - brake chamber

1шт.

12

L35617

PIN

- yoke

1шт.

13

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

N7132

BOLT

T-BOLT - special

1шт.

15

195-106

WASHER,1/2"

- flat, 1/2"

1шт.

16

N7133

NUT

- special

1шт.

17

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

1шт.

18

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4"

2шт.

N7183

COVER

BULKHEAD ASSEMBLY, Includes: Ref. 19 - 21

1шт.

N7183 bulkhead assembly now subs to P/N N8827 and includes 1-NSS bulkhead (Ref. 19), 1-NSS bulkhead insert (Ref. 21), 1-NSS O-ring (Ref. 20), 1-NSS adapter rod (Ref. 22), 1-NSS locator spring (Ref. 23) and 1-NSS return spring (Ref. 1).

1шт.

19

NSS

NOT SOLD SEPARAT

BULKHEAD - chamber

1шт.

20

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- bulkhead

1шт.

21

NSS

NOT SOLD SEPARAT

INSERT - bulkhead

1шт.

22

N7186

ROD

- adapter

1шт.

23

N7188

SPRING - locator

1шт.

24

N7187

DIAPHRAGM

DIAHRAGM - chamber

1шт.

25

N7224

SUPPORT ASSY.

SPRING - support

1шт.

Ref. 25 support spring, Ref. 26 main spring and Ref. 27 end cap are now combined and sub to P/N N9906 power pack.

1шт.

26

N7225

VALVE SPRING

SPRING - main

1шт.

27

N7226

CAP

- end, chamber

1шт.

N7185

CLAMP

ASSEMBLY, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

CLAMP

2шт.

29

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 2-1/4"

2шт.

30

25-176

NUT,3/8"-24, G5, Hvy

- hex head, 3/8" - 16 NC

2шт.
