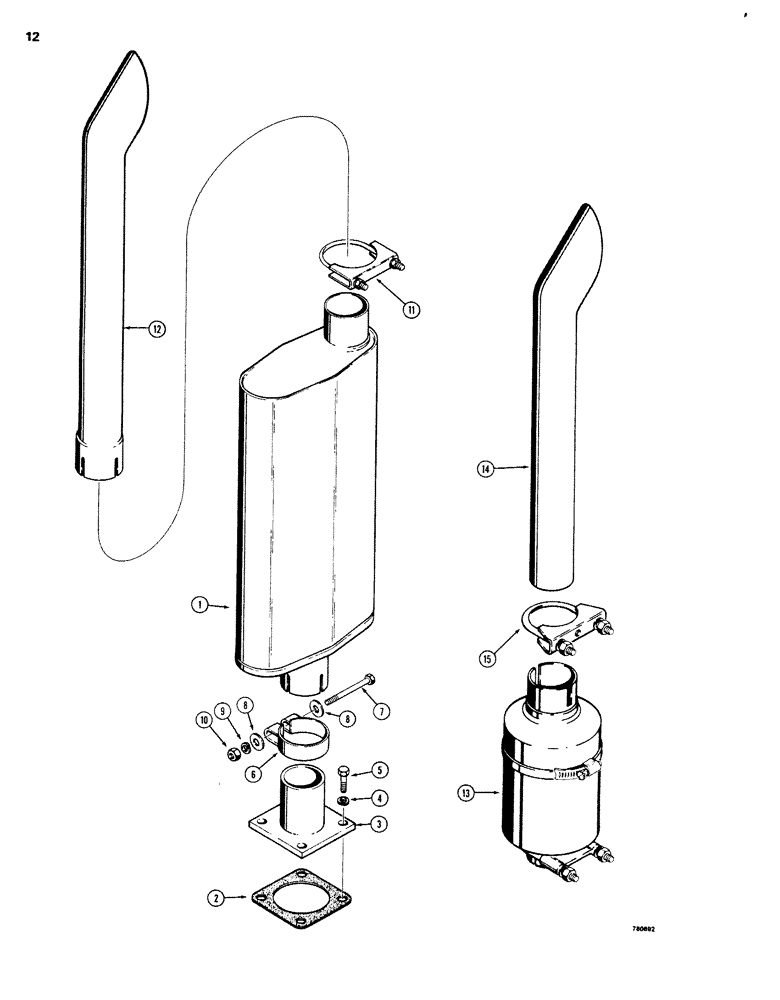

Запчасти Case 680G (012) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

L100137

MUFFLER

- inlet dia. 2-1/2" (64 mm)

1шт.

2

L14218

MANIFOLD GASKET

-, Serial Range: manifold-adapter

1шт.

3

L79977

ADAPTER

-, Serial Range: muffler-manifold

1шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

L79984

LAMP BASE

CLAMP - muffler

1шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- muffler clamp, 3/8" x 3" NC hex

1шт.

8

D41740

WASHER

- muffler clamp, 3/8" x 1" x 1/8"

2шт.

9

92-6

LOCK WASHER,3/8"

muffler clamp 3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- muffler clamp, hex, 3/8" - 16 NC

1шт.

11

L79973

CLAMP

- exhaust pipe

1шт.

12

L79972

PIPE

- exhaust, muffler, 2-1/2" dia. (64 mm) if used

1шт.

13

D45256

MUFFLER,W/ Spark Arrester

- spark arrester, includes inlet clamp

1шт.

14

L70063

PIPE

- exhaust, spark arrester, 2-1/2" dia. (64 mm) if used

1шт.

15

A13240

CLAMP,2-5/8" ID

-, Serial Range: arrester-pipe

1шт.
