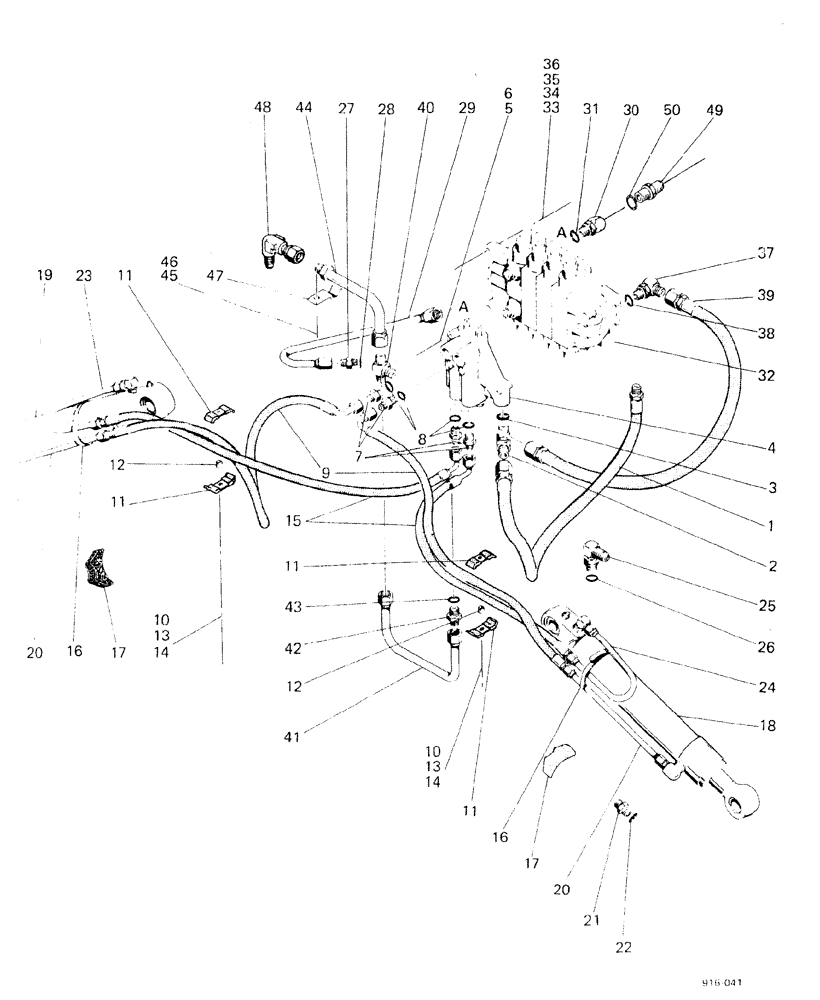

Запчасти Case 580F (184) - BACKHOE STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS

1

D66505

HOSE

1шт.

2

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

4

REF

INSTRUCTION

VALVE, see Figure 224

1шт.

5

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

4шт.

8

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

9

D65652

HOSE,9.53mm ID x 990.6mm L, SAE 100R2

2шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

D40236

CLAMP

4шт.

12

D34244

SPACER

SPACER

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

2шт.

15

D56043

HOSE,9.53mm ID x 863.6mm L, SAE 100R2

2шт.

16

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

17

D38648

BLOCK

GROMMET rubber

2шт.

18

REF

INSTRUCTION

CYLINDER right-hand, see Figure 192

1шт.

19

REF

INSTRUCTION

CYLINDER left-hand, see Figure 192

1шт.

20

D55865

TUBE

2шт.

21

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter

2шт.

22

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

23

D55360

TUBE

1шт.

24

D55357

TUBE

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

2шт.

26

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

29

E35900

TUBE, order D68573 + 218-5118

1шт.

UP TO NO. 3.775.367

1шт.

29

D68573

TUBE

1шт.

STARTING WITH NO. 3.775.368

1шт.

30

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

STARTING WITH NO. 3.775.368

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

32

REF

INSTRUCTION

VALVE, see Figure 212

1шт.

33

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

34

92-8

LOCK WASHER,1/2"

3шт.

35

95-8

WASHER,1/2"

3шт.

36

25-108

NUT,1/2"-13, G5

3шт.

37

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

39

D67792

HOSE

without extendahoe

1шт.

39

D73346

HOSE

with extendahoe

1шт.

40

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

CONNECTOR

1шт.

41

D68315

TUBE

1шт.

42

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter

1шт.

43

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

44

D68317

TUBE

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

D55880

CLAMP

1шт.

48

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ELBOW

1шт.

49

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

UP TO NO. 3.775.367

1шт.

50

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.
