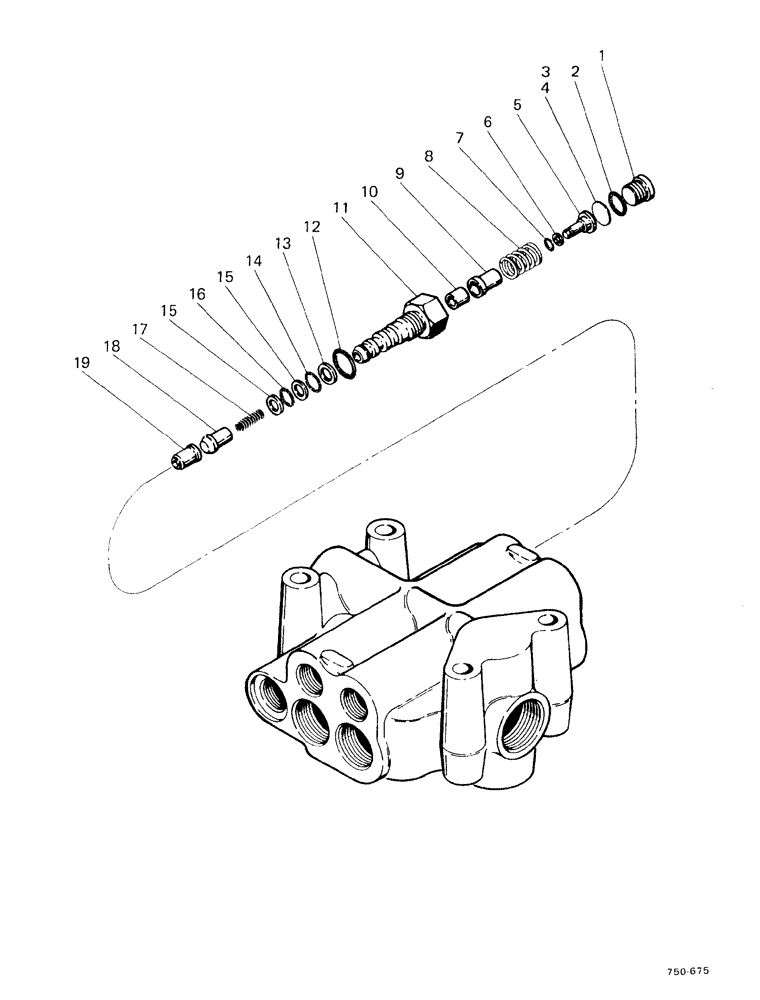

Запчасти Case 580F (172) - LOADER SECONDARY RELIEF (35) - HYDRAULIC SYSTEMS

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

D40355

SHIM,.005" Thk

1шт.

4

16917

SHIM

.010" - 0.25", thick

1шт.

4

E40726

SHIM

.040" - 1", thick

1шт.

4

E40727

SHIM

.045" - 1.2", thick

1шт.

4

E40728

SHIM

.055" - 1.4", thick

1шт.

4

E40729

SHIM

.060" - 1.6", thick

1шт.

4

E40730

SHIM

.070" - 1.8", thick

1шт.

4

E40731

SHIM

.080" - 2", thick

1шт.

4

E40732

SHIM

.085" - 2.2", thick

1шт.

4

E40733

SHIM

.095" - 2.4", thick

1шт.

4

E40734

SHIM

.10" - 2.6", thick

1шт.

4

E40735

SHIM

.11" - 2.8", thick

1шт.

4

E40736

SHIM

.12" - 3", thick

1шт.

5

D37073

GUIDE

1шт.

6

D40357

RING

1шт.

7

D40356

O-RING

1шт.

8

D37148

SPRING

1шт.

9

D37074

PLUNGER

1шт.

10

D37075

SEAT

1шт.

11

D37072

CAP

BODY

1шт.

12

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

D37071

RING

1шт.

14

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

2шт.

16

D26872

O-RING

1шт.

17

D37067

SPRING

1шт.

18

D37068

VALVE POPPET

1шт.

19

D40358

SEAT

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
