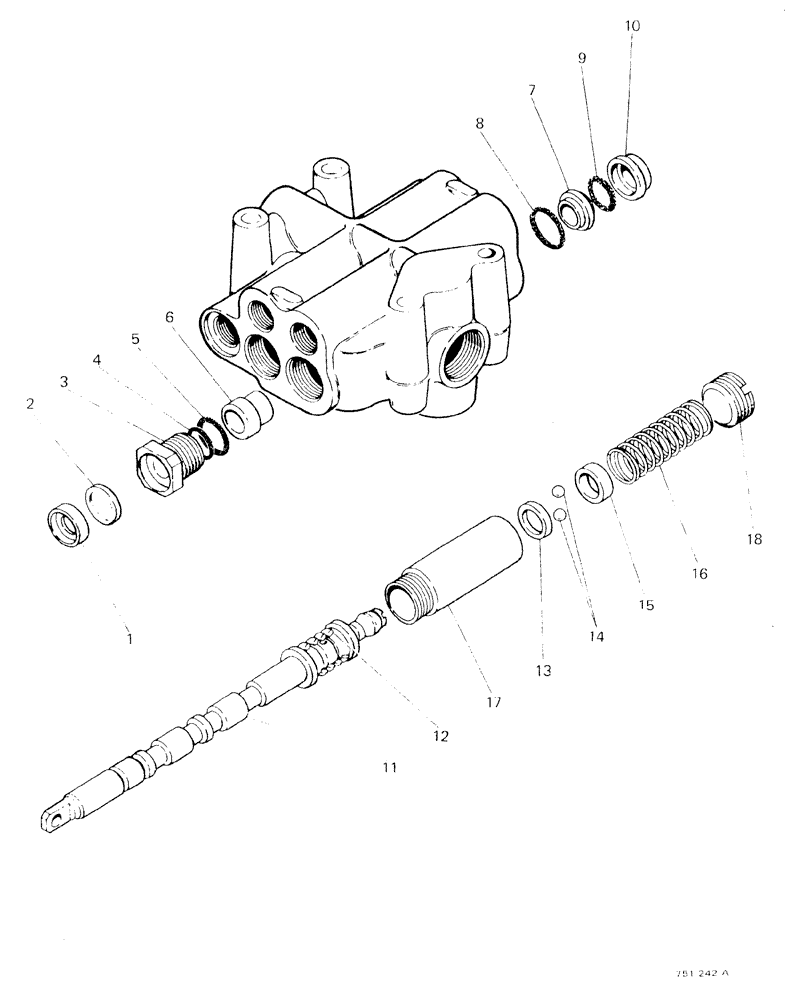

Запчасти Case 580F (170) - LOADER CONTROL VALVE, LIFT SPOOL (35) - HYDRAULIC SYSTEMS

D46024

SPOOL

complete, see Figure 180

1шт.

D46025

SPOOL

complete, see Figure 180

1шт.

D46026

PLUG

SPOOL complete, see Figure 180

1шт.

D46027

SPOOL

complete, see Figure 180

1шт.

1

D37153

RETAINER

1шт.

2

A14527

SCRAPER

RING

1шт.

3

D37152

RETAINER

GLAND

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

6

D37076

SLEEVE

1шт.

7

D33857

RETAINER

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

10

D33856

RETAINER

1шт.

D46034

TUBE

KIT spool, for D46024

1шт.

D46035

SPOOL

KIT, for D46025

1шт.

D46036

SHAFT

KIT spool, for D46026

1шт.

D46037

SPOOL

KIT, for D46027

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL complete

1шт.

12

A16882

SPRING

1шт.

13

L30455

WASHER

1шт.

14

211-8

BALL,9/32" Dia

8шт.

15

L30456

CAM

1шт.

16

L30626

SPRING

1шт.

17

L30454

CAP

1шт.

18

N6016

PLUG

1шт.
