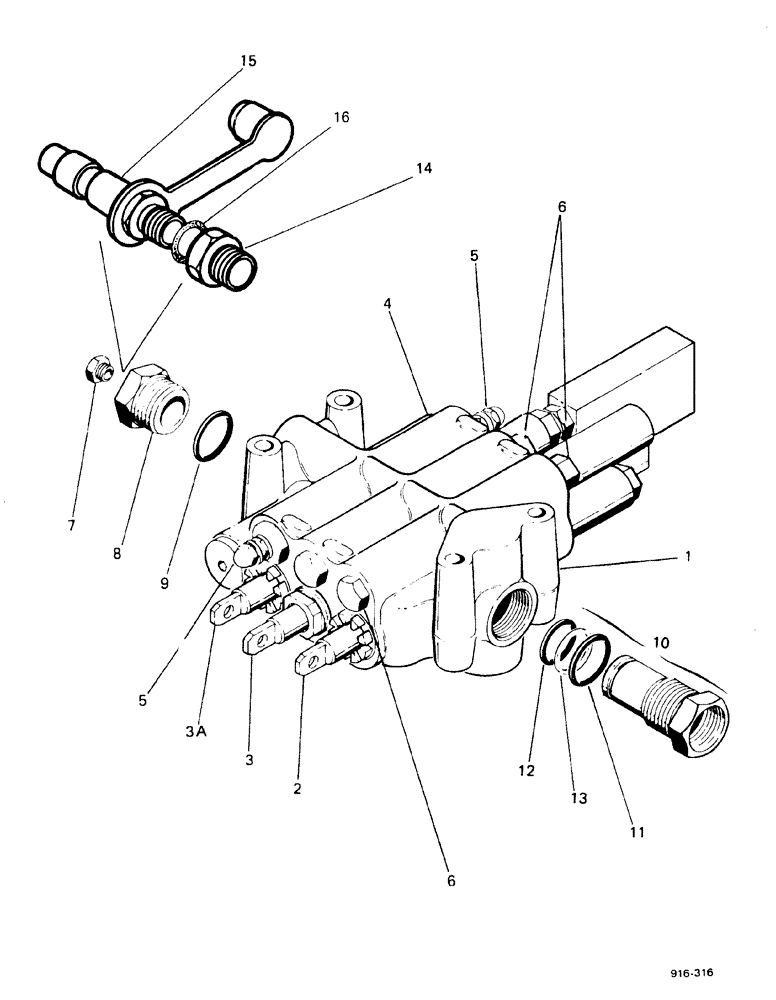

Запчасти Case 580F (165A) - LOADER CONTROL VALVE, 3 SPOOL, STARTING WITH NO 3.737.543 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D84117
VALVE
for identification, look for the valve part number on name plate
1шт.
1
E41186
LOCK VALVE
for Germany only
1шт.
2
D37050
SPOOL
see Figure 166
1.шт.
2
D37051
SPOOL
see Figure 166
1шт.
2
D37052
SPOOL
see Figure 166
1шт.
2
D37053
SPOOL
see Figure 166
1шт.
3
D46024
SPOOL
see Figure 170
1шт.
3
D46025
SPOOL
see Figure 170
1шт.
3
D46026
PLUG
see Figure 170
1шт.
3
D46027
SPOOL
see Figure 170
1шт.
3a
N6044
NO LONGER SERVICED
SPOOL see Figure 169A
1шт.
4
NSS
NOT SOLD SEPARAT
VALVE main relief, see Figure 174
1шт.
5
NSS
NOT SOLD SEPARAT
VALVE secondary relief, see Figure 173A
2шт.
6
NSS
NOT SOLD SEPARAT
VALVE check, see Figure 176
4шт.
7
221-662
PLUG,Hex Hd, 1/4"-18
1шт.
8
D38825
ADAPTER
ADAPTER
1шт.
9
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
D61251
FITTING
CONNECTOR
1шт.
11
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
12
L32680
RING
small
1шт.
13
D24036
WASHER
RING backup, if used
1шт.
14
E41773
FITTING
SPARE PART REDUCER, for Suedish only
1шт.
15
E41774
SEAL
SPARE PART FITTING, for Suedish only
1шт.
16
A30825
O-RING,0.364" ID x 0.504" OD x 0.07"
for Suedish only
1шт.
D37050
SPOOL
Black or letter code W, Serial Range: .73700"-.73709"
1шт.
D37051
SPOOL
Blue or letter code X, Serial Range: .73710"-.73719"
1шт.
D37052
SPOOL
Yellow or letter code Y, Serial Range: .73720"-.73729"
1шт.
D37053
SPOOL
Green or letter code Z, Serial Range: .73730"-.73740"
1шт.
D46024
SPOOL
Black or letter code W, Serial Range: .73700"-.73709"
1шт.
D46025
SPOOL
Blue or letter code X, Serial Range: .73710"-.73719"
1шт.
N6592
VALVE
Yellow or letter code Y, Serial Range: .73720"-.73729"
1шт.
D46027
SPOOL
Green or letter code Z, Serial Range: .73730"-.73740"
1шт.
Выбрано товаров: 32
