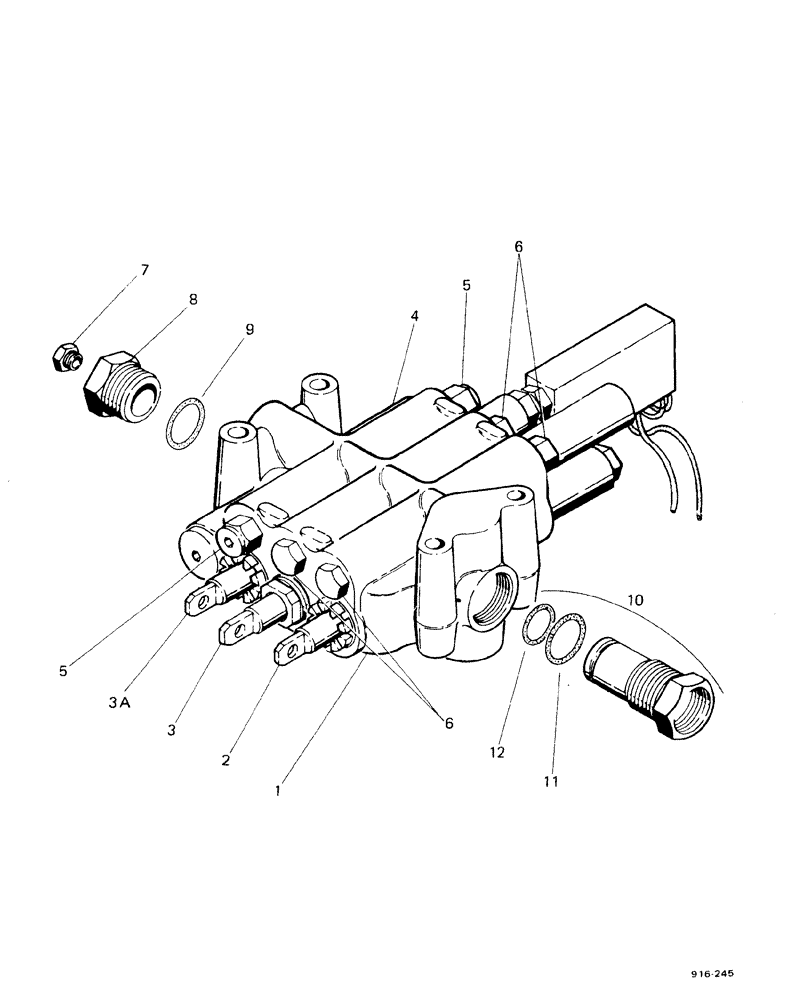

Запчасти Case 580F (164) - LOADER CONTROL VALVE, 3 SPOOL, UP TO NO 3.737.542 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D72286
VALVE
order D73512
1шт.
1
D73512
VALVE
order D84117, see Figure 165A
1шт.
E35266
SPARE PART
VALVE, order E41186, see Figure 165A, for Germany only
1шт.
2
D37050
SPOOL
see Figure 166
1шт.
2
D37051
SPOOL
see Figure 166
1шт.
2
D37052
SPOOL
see Figure 166
1шт.
2
D37053
SPOOL
see Figure 166
1шт.
3
D46024
SPOOL
see Figure 170
1шт.
3
D46025
SPOOL
see Figure 170
1шт.
3
D46027
SPOOL
see Figure 170
1шт.
3
D46026
PLUG
see Figure 170
1шт.
3a
L35090
SPOOL
see Figure 168
1шт.
4
NSS
NOT SOLD SEPARAT
VALVE, see Figure 174
1шт.
5
NSS
NOT SOLD SEPARAT
VALVE, see Figure 172
2шт.
6
NSS
NOT SOLD SEPARAT
VALVE, see Figure 176
4шт.
7
221-662
PLUG,Hex Hd, 1/4"-18
1шт.
8
D38825
ADAPTER
ADAPTER
1шт.
9
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
D61251
FITTING
CONNECTOR
1шт.
NSS
NOT SOLD SEPARAT
CONNECTOR
1шт.
11
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
12
L32680
RING
1шт.
D37050
SPOOL
Black or letter code W, Serial Range: .73700"-.73709"
1шт.
D37051
SPOOL
Blue or letter code X, Serial Range: .73710"-.73719"
1шт.
D37052
SPOOL
Yellow or letter code Y, Serial Range: .73720"-.73729"
1шт.
D37053
SPOOL
Green or letter code Z, Serial Range: .73730"-.73740"
1шт.
D46024
SPOOL
Black or letter code W, Serial Range: .73700"-.73709"
1шт.
D46025
SPOOL
Blue or letter code X, Serial Range: .73710"-.73719"
1шт.
N6592
VALVE
Yellow or letter code Y, Serial Range: .73720"-.73729"
1шт.
D46027
SPOOL
Green or letter code Z, Serial Range: .73730"-.73740"
1шт.
Выбрано товаров: 30
