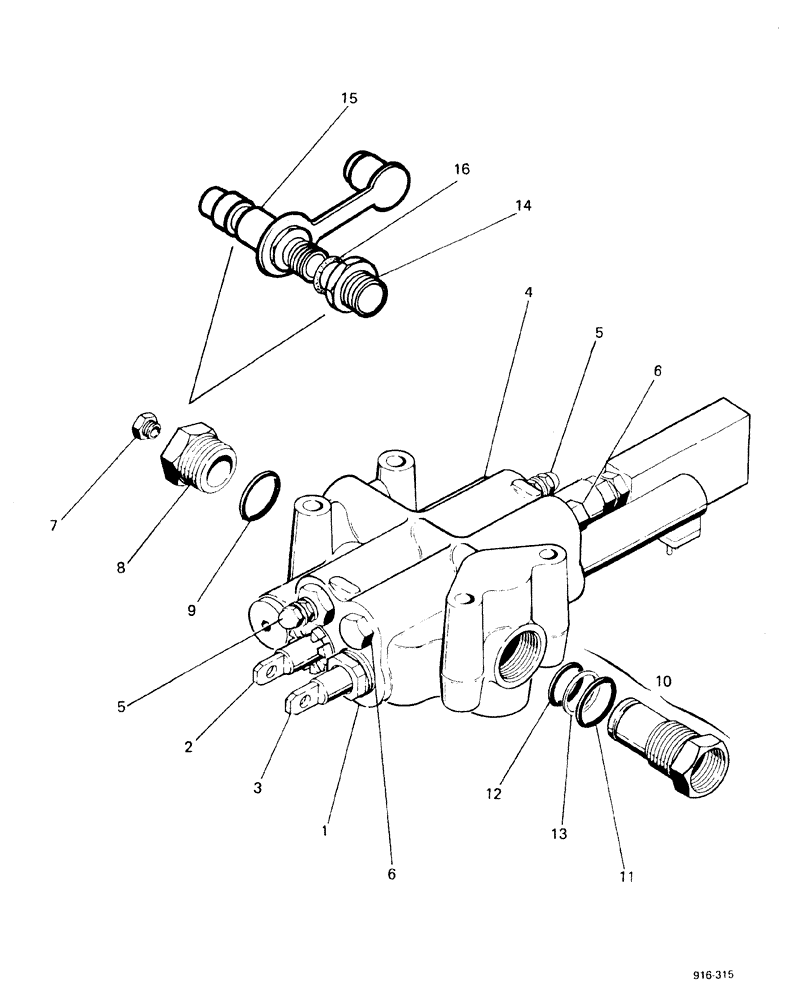

Запчасти Case 580F (163A) - LOADER CONTROL VALVE, 2 SPOOL, STARTING WITH NO 3.737.543 (35) - HYDRAULIC SYSTEMS

1

D84115

VALVE

for identification, look for the valve part number on name plate

1шт.

1

E41187

VALVE, for Germany only

1шт.

2

N6044

NO LONGER SERVICED

SPOOL see Figure 169A

1шт.

3

D46024

SPOOL

see Figure 170

1шт.

3

D46025

SPOOL

see Figure 170

1шт.

3

N6592

VALVE

SPOOL, see Figure 170

1шт.

3

D46027

SPOOL

see Figure 170

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE main relief, see Figure 174

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE secondary relief, see Figure 173A

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE check, see Figure 176

2шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

1шт.

8

D38825

ADAPTER

ADAPTER

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

D61251

FITTING

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

L32680

RING

small

1шт.

13

D24036

WASHER

RING backup, if used

1шт.

14

E41773

FITTING

SPARE PART REDUCER, for Suedish only

1шт.

15

E41774

SEAL

SPARE PART FITTING, for Suedish only

1шт.

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

for Suedish only

1шт.
