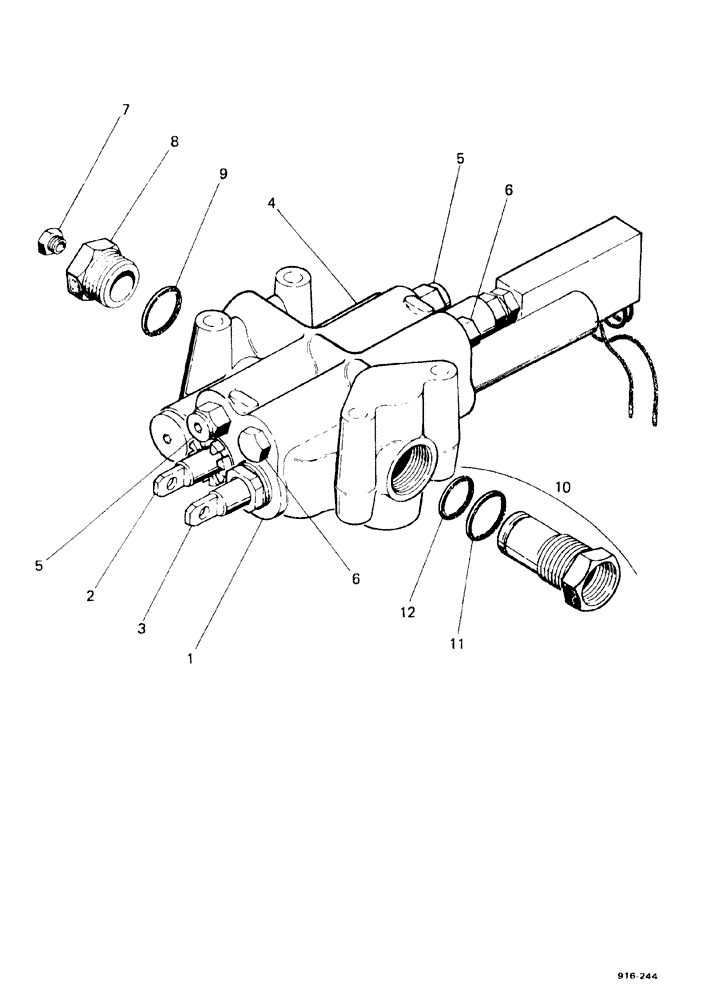

Запчасти Case 580F (162) - LOADER CONTROL VALVE, 2 SPOOL, UP TO NO 3.737.542 (35) - HYDRAULIC SYSTEMS

1

D72285

VALVE

order D73511

1шт.

1

D73511

CONTROL VALVE

VALVE, order D84115, see Figure 163A

1шт.

1

E34591

SPARE PART

VALVE, order E41187, see Figure 163A, for Germany only

1шт.

2

L35090

SPOOL

see Figure 168

1шт.

3

D46024

SPOOL

see Figure 170

1шт.

3

D46025

SPOOL

see Figure 170

1шт.

3

D46026

PLUG

SPOOL, see Figure 170

1шт.

3

D46027

SPOOL

see Figure 170

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE, see Figure 174

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE, see Figure 172

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE, see Figure 176

2шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

1шт.

8

D38825

ADAPTER

ADAPTER

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

D61251

FITTING

CONNECTOR

1шт.

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

L32680

RING

1шт.
