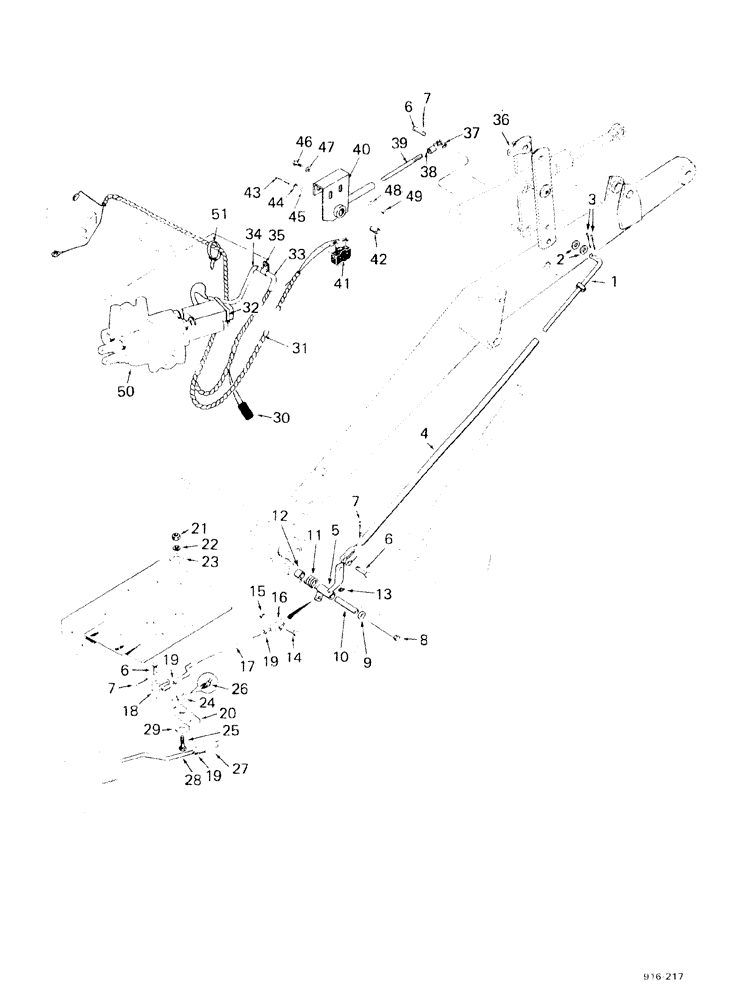

Запчасти Case 580F (161C) - LOADER POSITION CONTROLS, STARTING WITH NO 3.736.448 (35) - HYDRAULIC SYSTEMS

1

D73099

ROD

1шт.

2

195-33

WASHER,1/2"

2шт.

3

132-48

COTTER PIN,1/8" x 1"

2шт.

4

D68044

GUIDE

1шт.

5

D73087

LEVER

1шт.

6

141-4

CLEVIS PIN,3/8" x 1.060"

3шт.

7

132-25

COTTER PIN,3/32" x 5/8"

3шт.

8

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

CAPSCREW

1шт.

9

D43266

WASHER

WASHER

1шт.

10

D70307

SLEEVE

1шт.

11

D72099

SPRING

1шт.

12

D70308

SLEEVE

SLEEVE

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

15

131-6

LOCK NUT,3/8"-16, GC

1шт.

16

D59922

BALL JOINT

1шт.

17

D73228

ROD

1шт.

18

L11182

YOKE,3/8" - 24

UNIVERSAL JOINT YOKE

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

3шт.

20

D66858

LARGE PLATE

PLATE, LARGE LINK

1шт.

21

25-108

NUT,1/2"-13, G5

1шт.

22

92-8

LOCK WASHER,1/2"

1шт.

23

95-8

WASHER,1/2"

1шт.

24

E37991

BUSHING

SPACER

1шт.

25

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

26

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING, if used

1шт.

27

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

28

D66857

ROD

1шт.

29

D64050

WASHER

1шт.

30

L11760

DIODE

1шт.

31

E40303

ELECTRICAL WIRE

WIRE HARNESS

1шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

1шт.

UP TO NO. 3.737.542

1шт.

33

E37003

SPARE PART

SHEATH

1шт.

UP TO NO. 3.737.542

1шт.

34

E37002

LOOM

SPARE PART SHEATH

1шт.

UP TO NO. 3.737.542

1шт.

35

49845

CLAMP

1шт.

UP TO NO. 3.737.542

1шт.

35

25-106

NUT,3/8"-16, G5

1шт.

UP TO NO. 3.737.542

1шт.

36

D65333

ARTICULATION

1шт.

37

2134

LAMP

SPARE PART YOKE

1шт.

38

25-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

39

D75722

ROD

1шт.

40

D75724

BRACKET

1шт.

41

D40921

SWITCH

1шт.

42

D76175

BUSHING

SPACER

1шт.

UP TO NO. 3.737.542

1шт.

42

D95801

BUSHING

SPACER

1шт.

STARTING WITH NO. 3.737.543

1шт.

43

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

195-25

WASHER,3/8"

1шт.

46

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

2шт.

47

E40893

WASHER

2шт.

48

195-507

WASHER,#6

2шт.

49

129-15

NUT,#6-32

2шт.

50

REF

INSTRUCTION

VALVE, see Figure 162 and 164

1шт.

51

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

1шт.
