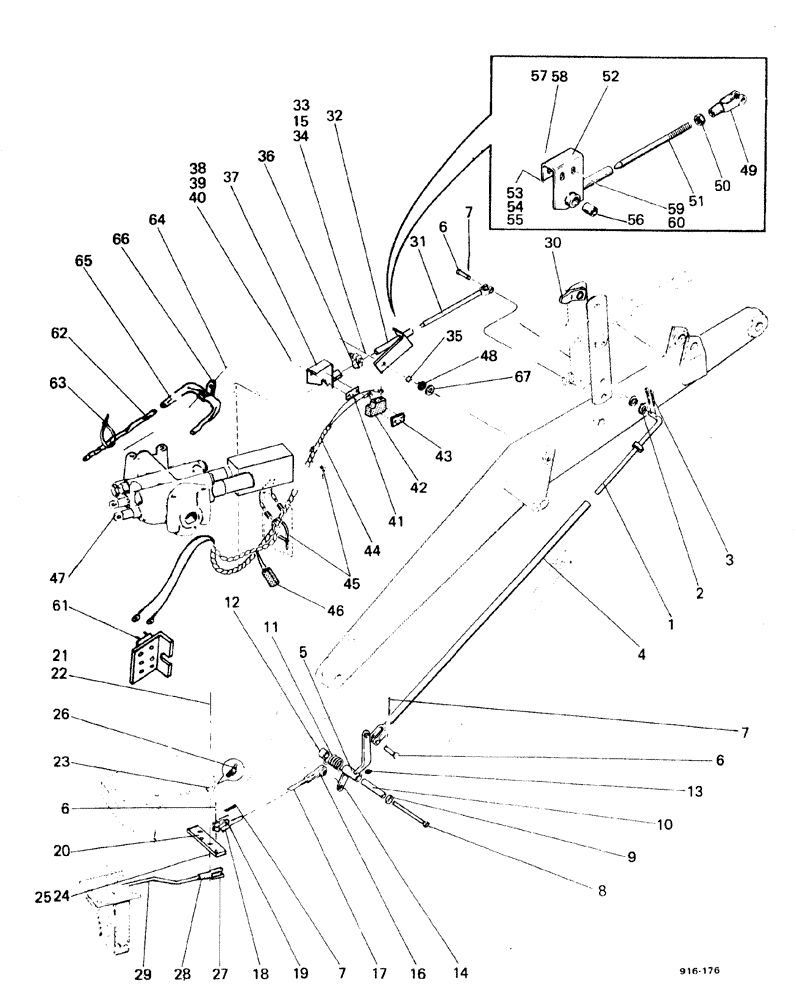

Запчасти Case 580F (160) - LOADER POSITION CONTROLS, UP TO NO 3.736.447 (35) - HYDRAULIC SYSTEMS

1

D73099

ROD

1шт.

2

195-33

WASHER,1/2"

2шт.

3

132-48

COTTER PIN,1/8" x 1"

2шт.

4

D68044

GUIDE

1шт.

5

D73087

LEVER

1шт.

6

141-4

CLEVIS PIN,3/8" x 1.060"

3шт.

7

132-25

COTTER PIN,3/32" x 5/8"

3шт.

8

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

CAPSCREW

1шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER

1шт.

10

D70307

SLEEVE

1шт.

11

D72099

SPRING

1шт.

12

D70308

SLEEVE

SLEEVE

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

131-6

LOCK NUT,3/8"-16, GC

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

16

D59922

BALL JOINT

1шт.

17

D73228

ROD

1шт.

18

L11182

YOKE,3/8" - 24

UNIVERSAL JOINT YOKE

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

2шт.

20

D66858

LARGE PLATE

PLATE, LARGE LINK

1шт.

21

25-108

NUT,1/2"-13, G5

1шт.

92-8

LOCK WASHER,1/2"

1шт.

22

95-8

WASHER,1/2"

1шт.

23

D66859

BUSHING

SPACER

1шт.

24

D64050

WASHER

1шт.

25

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

E35695

WASHER

1шт.

26

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

27

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

1шт.

29

D66857

ROD

1шт.

30

D65333

ARTICULATION

1шт.

31

D72620

ROD

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

32

D72516

PAD

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

33

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cap

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

34

195-25

WASHER,3/8"

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

35

D72522

SPACER

SPACER

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

36

D71880

CLAMP,22.23mm

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

37

D71519

LAMP

BRACKET

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

38

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

2шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

39

193-89

LOCK WASHER,Ext-Int Tooth, #6

2шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

40

195-507

WASHER,#6

2шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

41

D72618

SHIM

SPACER

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

42

D40921

SWITCH

1шт.

43

D72619

SHIM

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

44

D72270

HARNESS

1шт.

45

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

5шт.

46

L11760

DIODE

1шт.

47

REF

INSTRUCTION

VALVE, see Figure 162, 164

1шт.

49

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

50

25-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

51

D75722

ROD

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

52

D75724

BRACKET

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

53

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

54

92-6

LOCK WASHER,3/8"

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

55

195-25

WASHER,3/8"

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

56

D76175

BUSHING

SPACER

1шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

57

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

2шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

58

193-89

LOCK WASHER,Ext-Int Tooth, #6

2шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

59

195-507

WASHER,#6

2шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

60

129-15

NUT,#6-32

2шт.

STARTING WITH NO. 3.702.162, DRY CLUTCH/NO. 3.734.142, TORQUE CONVERTER

1шт.

61

REF

INSTRUCTION

BREAKER circuit, see Figure 040

1шт.

62

E37002

LOOM

SPARE PART SHEATH

1шт.

STARTING WITH NO. 3.701.960, DRY CLUTCH/NO. 3.732.813, TORQUE CONVERTER

1шт.

63

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

1шт.

STARTING WITH NO. 3.701.960, DRY CLUTCH/NO. 3.732.813, TORQUE CONVERTER

1шт.

64

25-106

NUT,3/8"-16, G5

1шт.

STARTING WITH NO. 3.701.960, DRY CLUTCH/NO. 3.732.813, TORQUE CONVERTER

1шт.

65

E37003

SPARE PART

SHEATH

1шт.

STARTING WITH NO. 3.701.960, DRY CLUTCH/NO. 3.732.813, TORQUE CONVERTER

1шт.

66

49845

CLAMP

1шт.

STARTING WITH NO. 3.701.960, DRY CLUTCH/NO. 3.732.813, TORQUE CONVERTER

1шт.

67

195-25

WASHER,3/8"

1шт.

UP TO NO. 3.702.161, DRY CLUTCH/NO. 3.734.141, TORQUE CONVERTER

1шт.

48

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal

1шт.
